High Precision Yoke Type Track Rollers Cam Followers Bearing (RSTO 5/RSTO 6/RSTO 8/RSTO 10/RSTO 12/RSTO 15/RSTO 17/RSTO30/RSTO 35/RSTO 40/) For Metallurgical
Hefei Pacesetter for New Material., Ltd / 2022-06-08
- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：16mm-90mm
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
=== Base Info ===
- Model NO.：RSTO 10
- Separated：Unseparated
- Structure Type：RSTO Series Yoke-Type Track Rollers
- Shaft Diameter：7mm-60mm
- Features-1：Without Axial Guidance & Inner Ring
- Features-2：Outer Ring without Ribs
- Clearance：C0 C2 C3
- Precision Rating：P0 P6 P5 P4 P2
- Vibration：Z1V1 Z2V2 Z3V3
- Cage Type：Steel,Brass,Nylon Cage
- Application：Metals, Mining, Mineral Processing and Cement
- Certification：ISO9001:2008
- Weight：0.042 KG
- Transport Package：Neutral Packing or as Client′s Requirement
- Specification：14x30x11.8mm
- Trademark：HENGLI, LZ
- Origin：China
- HS Code：8482800000
- Production Capacity：500000 Pieces,Year

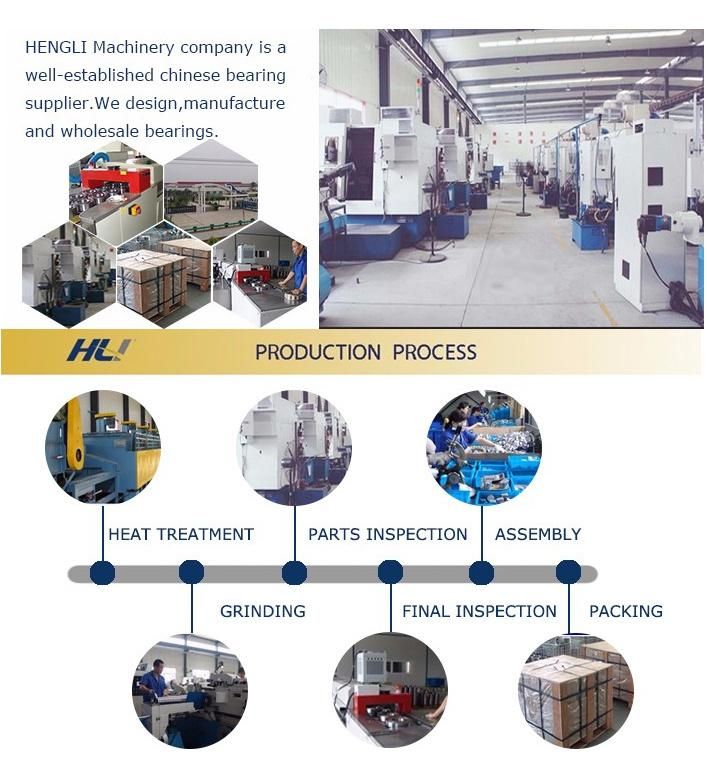

=== Description === HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings. A - Manufacturer - Do it only with the Best; -Your Choice make different. Q2 - Our Products A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing - Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing Q3 - Process of our production A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing Q4 - How to customize bearing(non-standard) from your company? A -We offer OEM,Customized(Non-standard) service and you need to provide drawing and detailed Technical Data. Q5 - What should I care before installation? A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be removed; it is only necessary to wipe off the outside cylindrical surface and bore, if the grease is not compatible with the preservative, it is necessary to wash and carefully dry the bearing. -Bearings should be installed in a dry, dust-free room away from metal working or other machines producing swarf and dust. Q6 - How to stock and maintenance my bearings right? A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing; -Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity or sudden and severe temperature changes that may result in condensation forming; -Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
kgmin RSTO 5 16 7.8 7 10 0.3 2.04 2.04 12800 0.009 RSTO 6 19 9.8 10 13 0.3 3 3.6 8000 0.013 RSTO 8 24 9.8 12 15 0.3 3.36 4.4 6400 0.021 RSTO 10 30 11.8 14 20 0.3 6.72 7.36 4400 0.042 RSTO 12 32 11.8 16 22 0.3 7.12 8.08 3600 0.049 RSTO 15 35 11.8 20 26 0.3 7.28 8.56 2640 0.05 RSTO 17 40 15.8 22 29 0.3 11.44 14.16 2240 0.088 RSTO 20 47 15.8 25 32 0.3 12.96 17.2 1920 0.13 RSTO 25 52 15.8 30 37 0.3 13.2 18.32 1440 0.15 RSTO 30 62 19.8 38 46 0.6 18.64 28 1040 0.255 RSTO 35 72 19.8 42 50 0.6 20.4 32 880 0.375 RSTO 40 80 19.8 50 58 1 19.2 31.2 680 0.42 RSTO 45 85 19.8 55 60 1 20.4 34.4 600 0.453 RSTO 50 90 19.8 60 68 1 20.8 37.2 520 0.481
About Us

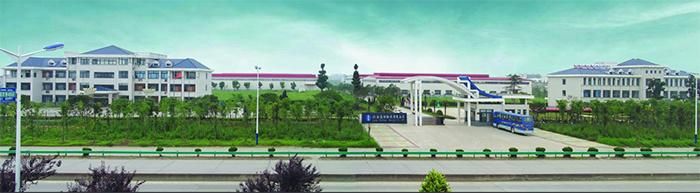

Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was
established in 1970 and is accredited by the Chinese Ministry of Machine Building.
We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products
such as Needle Roller Bearings, Cam Followers Bearings, Thrust Bearings, Spherical Plain Bearings, Rod Ends Bearings,
Ball Joint Bearings, Tapered Roller Bearings, Wheel Hub Bearings and Non-Standard Bearings.
Q1 - What is our advantages?
