Yoke Type Track Rollers Bearing With Axial Guidance, Axial Plain Washers On Both Sides(NATR5-PP/NATR6/NATR8/NATR10/NATR12/NATR15/NATR17/NATR20/NATR25/NATR30-PP)
Hefei Pacesetter for New Material., Ltd / 2022-06-08
- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：16mm-90mm
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
=== Base Info ===
- Model NO.：NATR5,NATR5-PP
- Separated：Unseparated
- Structure Type：Yoke Type Track Rollers
- Clearance：C0 C2 C3
- Precision Rating：P0 P6 P5 P4 P2
- Vibration：Z1V1 Z2V2 Z3V3
- Cage Type：Brass, Steel, Nylon
- Application：Metals, Mining, Mineral Processing and Cement
- Lubricated：Required
- Weight：0.014KG
- Certification：ISO9001:2008
- For Shaft Diameter：5mm-50mm
- Transport Package：Neutral Packing,as Client′s Requirement
- Specification：5*16*11 mm
- Trademark：HENGLI, LZ
- Origin：China
- HS Code：8482800000
- Production Capacity：500000 Pieces,Year

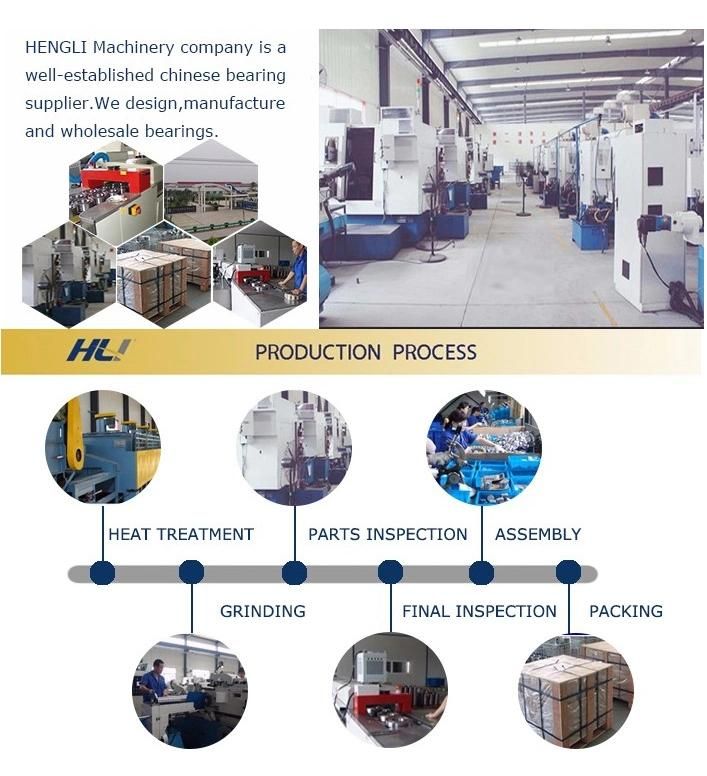

=== Description === HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings. A - Manufacturer - Do it only with the Best; -Your Choice make different. Q2 - Our Products A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing - Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing Q3 - Process of our production A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing Q4 - How to customize bearing(non-standard) from your company? A -We offer OEM, Customized(Non-standard) service and you need to provide drawing and detailed Technical Data. Q5 - What should I care before installation? A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be Removed; It is only necessary to wipe off the outside cylindrical surface and bore, if the grease is not compatible With the preservative, it is necessary to wash and carefully dry the bearing. -Bearings should be installed in a dry, dust-free room away from metal working or other machines producing Swarf and dust. Q6 - How to stock and maintenance my bearings right? A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing; -Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity Or sudden and severe temperature changes that may result in condensation forming; -Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
Basic Load Rating (KN)Limited Speed Mass Shield Type Sealed Type d D C B d1 r min C Co rpm kg NATR 5 NATR 5 PP 5 16 11 12 12 0.2 2.52 2.64 11200 0.014 NATR 6 NATR 6 PP 6 19 11 12 14 0.2 2.8 3.12 8800 0.02 NATR 8 NATR 8 PP 8 24 14 15 19 0.3 4.4 5.12 6000 0.041 NATR 10 NATR 10 PP 10 30 14 15 23 0.6 5.44 6.72 4400 0.064 NATR 12 NATR 12 PP 12 32 14 15 25 0.6 5.52 7.04 3600 0.071 NATR 15 NATR 15 PP 15 35 18 19 27 0.6 7.76 11.28 280 0.103 NATR 17 NATR 17 PP 17 40 20 21 32 1 8.72 12.4 2320 0.144 NATR 20 NATR 20 PP 20 47 24 25 37 1 12.4 20.4 1920 0.246 NATR 25 NATR 25 PP 25 52 24 25 42 1 12.32 21.2 1440 0.275 NATR 30 NATR 30 PP 30 62 28 29 51 1 18.88 30.8 1040 0.47 NATR 35 PP 35 72 28 29 58 1.1 20.4 35.6 800 0.635 NATR 40 PP 40 80 30 32 66 1.1 26.4 47.2 680 0.805 NATR 50 PP 50 90 30 32 76 1.1 25.6 47.2 520 0.96
About Us

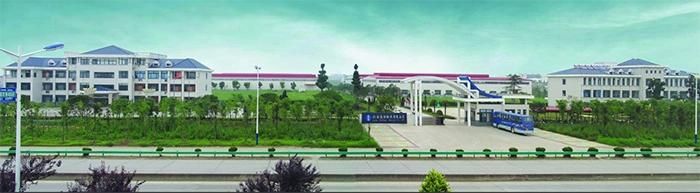

Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was
established in 1970 and is accredited by the Chinese Ministry of Machine Building.
We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products
such as Needle Roller Bearings, Cam Followers Bearings, Thrust Bearings, Spherical Plain Bearings, Rod Ends Bearings,
Ball Joint Bearings, Tapered Roller Bearings, Wheel Hub Bearings and Non-Standard Bearings.
Q1 - What is our advantages?
