Yoke Type Track Rollers Cam Follower Bearing (NA22/6-2RS NA22/8-2RS NA2200-2RS NA2201 NA2202 NA2203 NA2205 NA2206 NA2207 NA2208 NA2209 NA2210-2RS) For Railway
Hefei Pacesetter for New Material., Ltd / 2022-06-08
- Rolling Body：Roller Bearings
- The Number of Rows：Single
- Outer Dimension：19mm-90mm
- Material：Bearing Steel
- Spherical：Non-Aligning Bearings
- Load Direction：Radial Bearing
=== Base Info ===
- Model NO.：NA22,6-2RS
- Separated：Unseparated
- Structure Type：Yoke Type Track Rollers
- Clearance：C0 C2 C3
- Precision Rating：P0 P6 P5 P4 P2
- Vibration：Z1V1 Z2V2 Z3V3
- Cage Type：Brass, Steel, Nylon
- Application：Metals, Mining, Mineral Processing and Cement
- Lubricated：Oil or Grease
- Weight：0.02KG
- Certification：ISO9001:2008
- Transport Package：Neutral Packing,as Client′s Requirement
- Specification：6*19*12 mm
- Trademark：HENGLI, LZ
- Origin：China
- HS Code：8482800000
- Production Capacity：500000 Pieces,Year

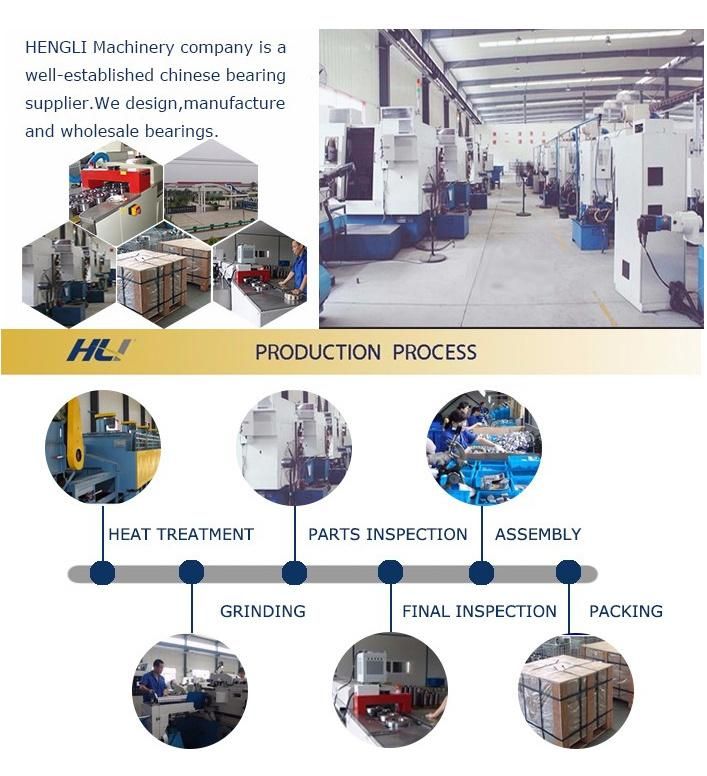

=== Description === HENGLI Machinery Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings. A - Manufacturer - Do it only with the Best; -Your Choice make different. Q2 - Our Products A - Spherical Roller Bearing, Cylindrical Roller Bearing, Needle Roller Bearing, Cam Followers, Thrust Bearing - Spherical Plain Bearing, Rod End, Ball Joint, Wheel Hub, Tapered Roller Bearing Q3 - Process of our production A - Heat Treatment - Grinding - Parts Inspection - Assembly - Final Inspection - Packing Q4 - How to customize bearing(non-standard) from your company? A -We offer OEM, Customized(Non-standard) service and you need to provide drawing and detailed Technical Data. Q5 - What should I care before installation? A - Normally, the preservative with which new bearings are coated before leaving the factory does not need to be Removed; It is only necessary to wipe off the outside cylindrical surface and bore, if the grease is not compatible With the preservative, it is necessary to wash and carefully dry the bearing. -Bearings should be installed in a dry, dust-free room away from metal working or other machines producing Swarf and dust. Q6 - How to stock and maintenance my bearings right? A - Do not store bearings directly on concrete floors, where water can condense and collect on the bearing; -Store the bearings on a pallet or shelf, in an area where the bearings will not be subjected to high humidity Or sudden and severe temperature changes that may result in condensation forming; -Always put oiled paper or, if not available, plastic sheets between rollers and cup races of tapered roller bearings.
kgmin min NA22/6.2RS 6 19 11.8 12 10 16 0.3 0.3 3.12 2.92 7200 0.02 NA22/8.2RS 8 24 11.8 12 12 18 0.3 0.3 3.84 3.84 5600 0.03 NA2200.2RS 10 30 13.8 14 14 20 0.6 0.3 5.6 6.4 4400 0.06 NA2201.2RS 12 32 13.8 14 16 22 0.6 0.3 6 7.2 3760 0.07 NA2202.2RS 15 35 13.8 14 20 26 0.6 0.3 6.08 7.6 2720 0.08 NA2203.2RS 17 40 15.8 16 22 28 1 0.3 7.92 10.96 2400 0.11 NA2204.2RS 20 47 17.8 18 25 33 1 0.3 12.16 14.64 1840 0.18 NA2205.2RS 25 52 17.8 18 30 38 1 0.3 12.56 16 1440 0.21 NA2206.2RS 30 62 19.8 20 35 42 1 0.3 14.72 20.4 1120 0.32 NA2207.2RS 35 72 22.7 23 42 50 1.1 0.6 18.4 28.4 880 0.51 NA2208.2RS 40 80 22.7 23 48 57 1.1 0.6 22 32.4 680 0.63 NA2209.2RS 45 85 22.7 23 52 62 1.1 0.6 22.8 34.4 640 0.66 NA2210.2RS 50 90 22.7 23 58 68 1.1 0.6 22.4 34 520 0.69
About Us
Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller Bearing, LUAN Rolling Bearing Co., Ltd was
established in 1970 and is accredited by the Chinese Ministry of Machine Building.
We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products
such as Needle Roller Bearings, Cam Followers Bearings, Thrust Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball
Joint Bearings, Tapered Roller Bearings, Wheel Hub Bearings and Non-Standard Bearings.
Q1 - What is our advantages?
