Outdoor Fixed Billboard Advertising Column Type Screen LED Display

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：8,10 mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：350 W,Panel

=== Base Info ===

• Model NO.：BDF-8,10
• Pixel Density：15,625,8,800 Px,M2
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Brightness：>5500 Nits
• Refresh Rate：>1920 Hz
• Contrast Ratio：4000:1,2000:1
• Cabinet Material：Die Casting Aluminum
• Cabinet Weight：35kg
• Processing：16 Bits
• Colours：281 Trillion
• Viewing Angle：160°,140°
• Transport Package：Wooden Crate,Flight Case
• Origin：China
• HS Code：8528591090
• Production Capacity：6000m2,Month

=== Description ===

Basic Info.

Model NO. BDF-8/10 Pixel Density 15,625/8,800 Px/M2 Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Brightness >5500 Nits Refresh Rate >1920 Hz Contrast Ratio 4000:1/2000:1 Cabinet Material Die Casting Aluminum Cabinet Weight 35kg Processing 16 Bits Colours 281 Trillion Viewing Angle 160°/140° Transport Package Wooden Crate/Flight Case Origin China HS Code 8528591090 Production Capacity 6000m2/Month

Product Description

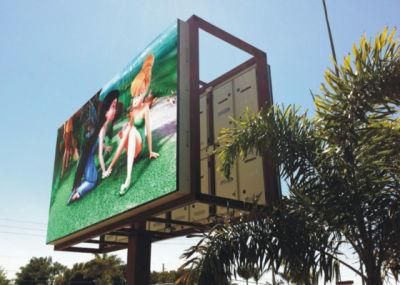

Outdoor Fixed Billboard Advertising Column Type Screen LED Display

The Billboard Led display screen now are widely applied in media advertising, transportation,traffic information distribution of station, quay and airport, conference, shopping mall and so on.



Outdoor Fixed Billboard Advertising Column Type Screen LED Display Features

*    Standard cabinet size of 1024*768 mm,easy for assemble

*    Die-casting aluminum design, lightweight for installing ,save labor cost.

*    New mask design makes LED light almost zero reflection, which ensures the
     screen displaying effect;

*    High refresh rate and high gray depth,Unique color calibration process,beautiful
     natural picture

*    Dust-proof and Waterproof of IP65,with -20°C - 60°C working temperature for
     outdoor display, adapted to the harsh environment.

*   The viewing angle is up to 140 of horizontal and vertical, the image won't be out of
     shape or color cast between the range.


*    Fanless design, silent when operation,excellent thermal design and cooling
     performance

Outdoor Fixed Billboard Advertising Column Type Screen LED Display Specification


Outdoor LED Screen Specification:


	BOF-4	BOF-6	BOF-8	BOF-10
Physical Pitch	4.81mm	6.67mm	8mm	10mm
Pixel Configutation	SMD2727	SMD2727	SMD3535	SMD3535
Pixel Density	43,264 pixels/sqm	22,500 pixels/sqm	15,625 pixels/sqm	10,000 pixels/sqm
Module Dimention      (W*H)(mm)	250*250	320*320	256*256	320*320
Panel Dimention(mm)	1000*1000*150	1280*960*150	1280*768*150	1280*960*150
Physical Resolution of Module(W*H)	52*52	48*48	32*32	32*32
Physical Resolution of Panel(W*H)	208*208	192*144	160*96	128*96
Panel Material	Steel/Aluminum	Steel/Aluminum	Steel/Aluminum	Steel/Aluminum
Weight(kg/sqm)	65/45	65/45	65/45	65/45
Processing	16 bit	16 bit	16 bit	16 bit
Contrast Ratio	2,000:1	2,000:1	2,000:1	2,000:1
Average Power Consumption	360W/panel	360W/panel	360W/panel	360W/panel
Max Power Consumption	900W/panel	900W/panel	900W/panel	900W/panel
Brightness	>6,500nits	>6,500nits	>6,500nits	>6,500nits
Refresh Rate	>1,920Hz	>1,920Hz	>1,920Hz	>1,920Hz
Vertical Viewing Angle	160°	160°	160°	160°
Horizontal Viewing Angle	140°	140°	140°	140°
Servicing	Front/Rear	Front/Rear	Front/Rear	Front/Rear
IP Rating(Front/Rear)	IP65/IP54	IP65/IP54	IP65/IP54	IP65/IP54



Advantages

*   Competitive Price: Orders directly from manufacturer to reduce intermediate expenditure, buy high quality sign products with more reasonable price

*   First-class Quality: We provide you with high quality signs produced by our experienced technicians which using high quality raw materials

*  Strict Leading Time: Depending on the type and quantity of ordered signs, we generally need only 4 to 15 days to complete the production

*   OEM service offered, Customized service offered, Design service offered

* Competitive price, Short delivery, Timely transportation, Installation instruction

* Long time cooperate with signs company, construction company, design company, advertising company, chain shops, distributors, hotels, shopping malls and etc.



Tips

*  Payment: We accept the L/C, T/T, Western Union.

* Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.

* Package: We usually pack the product in a wooden box or flight case.
