Outdoor Full Color LED Modules with High Brightness 6000nits (P4, P5, P6)

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：6mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display
• Average Power Consumption：350W , m²

=== Base Info ===

• Model NO.：P6
• Pixel Density：27777dots,Sq.M
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising,Stage Performance,Rental
• Certification：CE, RoHS, CCC, ETL
• Color of LEDs：SMD3535
• Module Size：192X192mm
• Module Resolution：32X32dots
• IP Grade：IP65
• Transport Package：Wooden Case or Paper Carton
• Specification：CE, RoHs, FCC, CCC
• Trademark：PRT
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：3000sq. M,Month

=== Description ===
P6 SMD3535 Outdoor full Color LED Screen SpecificationPixel pitch6mmPixel Configuration1R1G1BLED componentSMD3535/SMD2727Size of module192mm x 192mmResolution of module 32 x32dotsSize of cabinet960mm x 960mm x 150mmResolution of cabinet160x160dotsMaterial of CabinetIron/AluminumWeight of Cabinet45KGSBrightness>6000cd/sq.mDensity27777dots/sq.mBest viewing angle140 /140Pixel Configuration1R1G1BBest viewing distance5-60MMaximum power consumption1000W/sq.mAverage power consumption560W/sq.mDriving method1/8 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>1920HzIP gradeIP65Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary developmentalso we have many other modules with different pixels and modules sizes

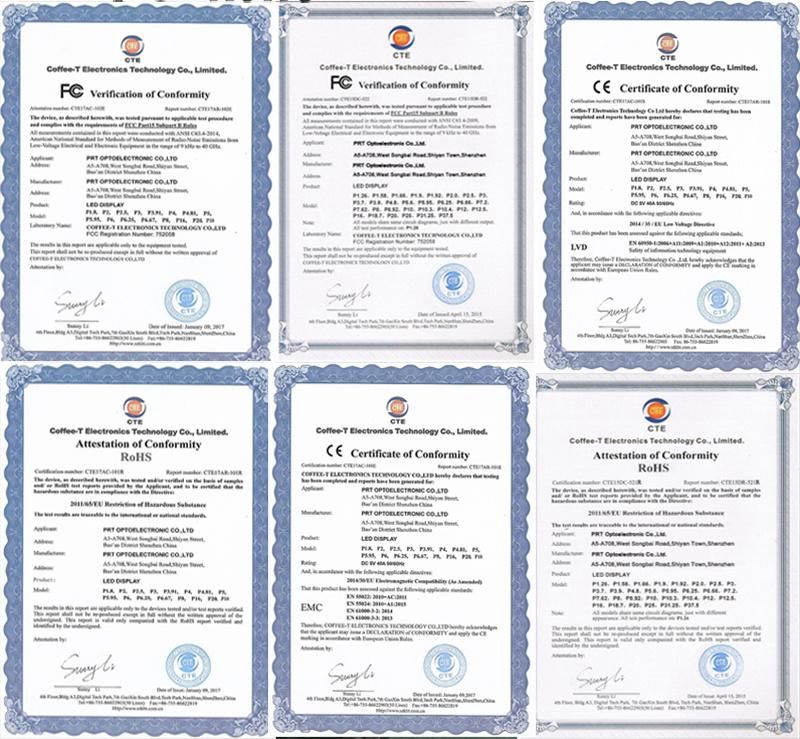

PRTLED products with high quality to confirm everything is ok to customers,built a strict quality control system,
and got CE,ROHS,FCC certificates

Before panel or screen assembled,led modules will test and aging for 48 hours to ensure no problem for next process,and before delivery, we will light the whole screen with 72 hours at least to confirm the quality
