HD Full Color Indoor P2.976mm LED Ground Wall (500 * 500 mm, 500 X 1000 mm)

• Tube Chip Color：Full Color
• Display Function：Video Display
• Pixel Pitch：2.976mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：112896dots,Sq.M
• Scanning Mode：1,28 Scan

=== Base Info ===

• Model NO.：P2.976
• System Operating Platform：Win XP,Win 2000,98,Nt
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC, FCC
• LED Style：SMD2121 Black
• Module Size：250X250mm
• Cabinet Size：500X500mm
• Cabinet Material：Die-Casting Aluminum
• Transport Package：Wooden Case
• Specification：CE, FCC, Rohs
• Trademark：PRT
• Origin：Shenzhen China
• HS Code：8528591090
• Production Capacity：2000sq. M,Month

=== Description ===
P2.976 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch2.976mmPixel Configuration1R1G1BLED componentSMD2121 blackSize of module250mm x 250mmResolution of module84x84dotsSize of cabinet500x500mm or 500mm x 1000mm x 75mmResolution of cabinet168x168/168x336 dotsMaterial of CabinetDie-casting AluminumWeight of Cabinet8.9 kgs/14.5 kgsBrightness>1200cd/sq.mDensity112896 dots/sq.mBest viewing angle140° /140°Pixel Configuration1R1G1BBest viewing distance2-30MMaximum power consumption800W/sq.mAverage power consumption400W/sq.mDriving method1/28 scanControl methodSynchronizationGray scale65536Colors256*256*256Color temperature3200-9300kUniformity97%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3840HzIP gradeIP31Life Span100,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

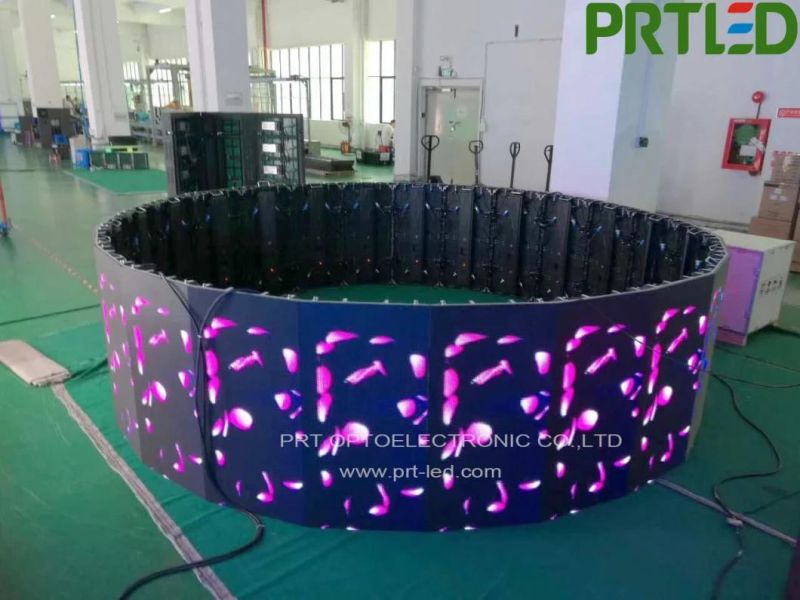

Pictures for reference:

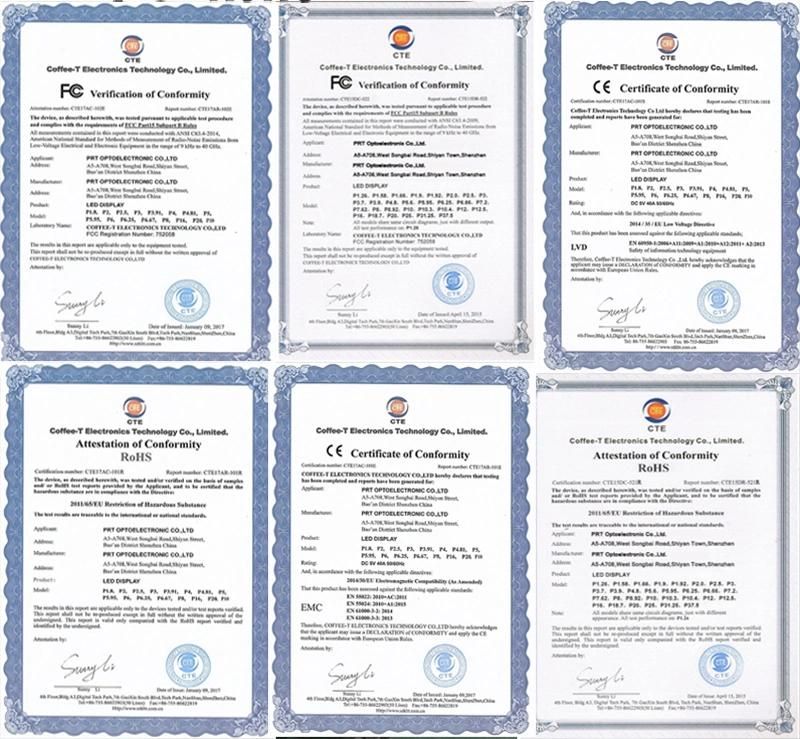

PRTLED products are made with high quality materials/parts,according to international stand CE,ROHS,FCC etc,also found a strict quality control system,to ensure no problem at each process to confirm the high quality before delivery.
