Garage Equipments Truck Spray Booth Paint Spray Booth Price

• After-sales Service：24 Hours After Service
• Warranty：2 Years
• Type：Spray Booth
• Certification：CE
• Substrate：Steel
• Brand：Infitech

=== Base Info ===

• Model NO.：IT-18-5A
• Coating：Powder Coating
• Airflow Direction：Downdraft
• Heating Mode：Gas Heating
• Paint Mist Treatment：Dry-type
• Condition：New
• Airflow：Downdraft
• Plenum (Height)：800mm
• Extraction：800mm
• Extraction Area：17m2
• Grids Carrying Capacity：1,500kg,Wheel
• Walls：75mm Rock Wool Walls
• Brightness：>1,000lux
• Air Volume：2*28,000m3,H
• Empty Loaded Air Speed：0.17m,S
• Heats：Riello Gas Burner RS5d*2
• Maximum Working：80 Celsius
• Controls：CE Standard
• Stack Light：Yes
• Rated Power：38kw
• Transport Package：Cargo Loaded on Steel Frame Handled by Forklifts
• Specification：18000 X 5000 X 5000mm (L X W X H)
• Trademark：INFITECH
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：1000 Sets,Year

=== Description ===

Basic Info.

Model NO. IT-18-5A Coating Powder Coating Airflow Direction Downdraft Heating Mode Gas Heating Paint Mist Treatment Dry-type Condition New Airflow Downdraft Plenum (Height) 800mm Extraction 800mm Extraction Area 17m2 Grids Carrying Capacity 1,500kg/Wheel Walls 75mm Rock Wool Walls Brightness >1,000lux Air Volume 2*28,000m3/H Empty Loaded Air Speed 0.17m/S Heats Riello Gas Burner RS5d*2 Maximum Working 80 Celsius Controls CE Standard Stack Light Yes Rated Power 38kw Transport Package Cargo Loaded on Steel Frame Handled by Forklifts Specification 18000 X 5000 X 5000mm (L X W X H) Trademark INFITECH Origin Guangzhou, China HS Code 8419899090 Production Capacity 1000 Sets/Year

Product Description

Garage Equipments Truck Spray Booth Paint Spray Booth Price1.FEATURES
The economy bus paint spray booth IT-18-5A is designed for customers who look for economical solution, but also require consistent downdraft airflow for quality paint refinish.

The paint spray booth comes with vertical side wall panels. To ensure the booth strength, we use 75mm thick rock wool panels with 0.6mm thick substrate.
And it is with 2 groups of 2*7.5kw air handling units. The air volume is 56,000m³/h.
The air supply unit is suspended at the top from the ceiling structure of the building, while the air exhaust unit is placed on the side of the paint spray booth. We can add air return duct from the exhaust unit to the supply unit to allow air circulation in the flash and bake phase.

Kindly be advised that we can cater the spray booth design and configurations to your requirements. We have you covered form RVs, semi trucks, and agriculture equipment to trains and planes. And we have abundant experience in having built and installed these large booths, we know that we can design and assemble one to meet your specific needs. Feel free to send your inquiries.

2.SPECIFICATIONS

ITEMS	Garage Equipments Truck Spray Booth Paint Spray Booth SPECIFICATIONS
Model	IT-18-5A Economy Bus Paint Spray Booth
Design standard	BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009
Internal dimensions	18000 X 5000 X 5000mm (L X W X H)
External dimensions	18170 X 7160 X 7110mm (L X W X H)
Airflow	Downdraft
Plenum (height)	800mm
Extraction	800mm deep pit with grids
Extraction area	17m2 (based on 1 row of grids)
Grids carrying capacity	1,500kg/wheel
Entrance door	4270x4800mm (WxH), manual entry door, 1 set
Service door	800x2000mm(WxH), 6 sets
Walls	75mm rock wool walls
Ceiling lights (LED)	22 sets, each 4 X 18W, 1,584W total
Sidewall lights (LED)	32 sets, each 4 X 18W, 2,304W total
Brightness	>1,000LUX
Filters	Bag filter, high efficiency ceiling filter, floor filter, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 2* 2x7.5KW, SIEMENS motor
Air volume	2*28,000m3/h
Empty loaded air speed	0.17m/s
Heats	2*232kw heat exchanger, RIELLO gas burner RS5D*2
Maximum working temperature	80ºC
Controls	CE standard control box
Option	Man lift; Electric entrance door
Rated power	38KW

3.DETAILS
Manual entrance door, 4-leaf, 4270*4800mm, with anti-sagging device to prevent the door from falling down.

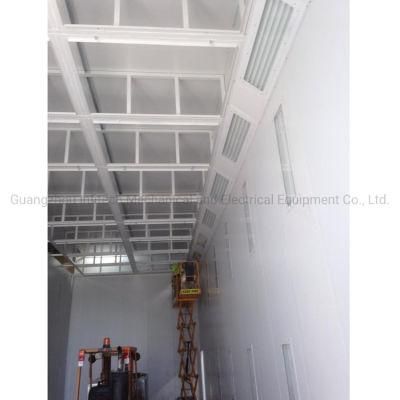

Vertical side walls, 75mm thick rock wool panels;
Inclined ceiling and vertical sidewall lighting fixtures.

Air supply unit is installed at the top and suspended by the ceiling structure of the building;
The exhaust unit is on the side of the spray booth.
Notes: Ducts can be added to allow return air in the flash and bake cycle.

CONTROL
Control box with manual buttons

OPTION
Digital screen control panel

FILTERS

Item	Specification
Pre-filter	Bag filter
Ceiling filter	High efficiency F5 grade filter
Floor filter	Fiberglass paint arrestor filter
Extract filter	Activated carbon filter

FAQQ: How do I know how large the spray booth I need?A: Please tell us the largest item that you plan on painting. The general rule is to have 1m of clear space around the items that you are painting.
 Q: What do I need to consider when I select a large equipment spray booth?A: Dimensions of the spray booth, airflow type, heated or non-heated, where the generator will be located, power requirements etc.
Meanwhile, you can send us the detailed requirements, we will help propose the ideal solution for your approval.
 Q: What is the supply scope of your spray booth?A: Concerning the supply scope, it is according to the specifications and configurations approved by customers. We strictly follow the approved specifications for production and delivery.
Usually, our spray booths are shipped complete with everything you need to assemble and start using them.
 Q: What are the wall panels?A: Usually, our spray booth comes standard with double insulated rock wool wall panels. They are constructed of 2 layers of 0.426mm color steel sandwiched with 80m³/kg rock wool.
 Q: What is the warranty?A: 2 years.
