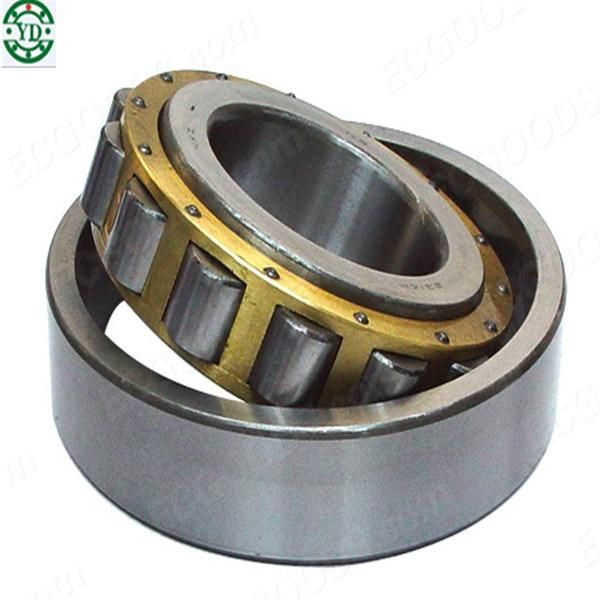

High Quality Nn 3026 K/W33 Roller Bearing Cylindrical Roller Bearing Nn 3026

• Rolling Body：Roller Bearings
• The Number of Rows：Double
• Outer Dimension：Extra Large (440mm)
• Material：Bearing Steel
• Spherical：Non-Aligning Bearings
• Load Direction：Axial Bearing

=== Base Info ===

• Model NO.：NN 3026 K,W33
• Separated：Separated
• Lubrication：Oil Grease
• Feature：High Quality
• Service：OEM Customized Services
• Stock：Large
• Transport Package：Wood Case
• Specification：NN 3026 K,W33 bearing
• Trademark：YD
• Origin：China
• HS Code：8482102000
• Production Capacity：10000

=== Description ===
Bearing modeldDBGreaseOil(kN)
Dynamic(kN)
StaticMassNUP303E174714130001500024.64621.1640.1387NUP303EM174714130001500024.64621.1640.1387N304E205215140001700023.119.20.149N304EM205215140001700023.119.20.149NF304E205215140001700023.119.20.149NF304EM205215140001700023.119.20.149NU304E205215140001700023.119.20.149NU304EM205215140001700023.119.20.149NJ304E205215140001700023.119.20.149NJ304EM205215140001700023.119.20.149NUP304E205215140001700023.119.20.149NUP304EM205215140001700023.119.20.149N305E25621790001200038.535.80.24N305EM25621790001200038.535.80.28NF305E25621790001200038.535.80.24NF305EM25621790001200038.535.80.28NU305E25621790001200038.535.80.24NU305EM25621790001200038.535.80.28NJ305E25621790001200038.535.80.24NJ305EM25621790001200038.535.80.28NUP305E25621790001200038.535.80.24NUP305EM25621790001200038.535.80.28NUP305ENV2562176000850049.151.30.3N306E30721980001000049.248.20.38N306EM30721980001000049.248.20.41NF306E30721980001000049.248.20.38NF306EM30721980001000049.248.20.41NU306E30721980001000049.248.20.38NU306EM30721980001000049.248.20.41NJ306E30721980001000049.248.20.38

 N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.

NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.

NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.

NNU Series - Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.
