20m Industrial Painting Room/Spray Booth for Furniture, Woodwork, Car,

• Warranty：24 Months
• Type：Coating Production Line

=== Base Info ===

• Model NO.：CP-120
• Certification：CCC, CE, GS, SGS
• Substrate：Sandwich Panel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：20000X5000X5000 mm(Lxwxh)
• Outside Dimension：20150X6500X5500mm(Lxwxh)
• Pit：2 Rows of Pits, 18000X760mm(Lxw)
• Main Door：4-Folds, 4000X4500mm(Wxh)
• Escape Door：2 Units, 800X2000 mm (Wxh)
• Room Body：75EPS Panel, 0.5 Steel
• Lighting System：Ceiling Lights: 104PCS, Side Lights: 128PCS
• Intake Fan：6X7.5kw Centrifugal Fans
• Exhasuting Fan：3×11kw Centrifugal Fans
• Heating System：3 Units Riello Rg5s Diesel Burners
• Air Speed：0.3-0.35m,S
• Ventilation Type：Semi Downdraft
• Filter Type：Dry
• Voltage：Customized According to Need
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：96sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

=== Description ===
CP-20Outside Size(mm):20150×6500×5500mm(LxWxH) Inside Size(mm):20000×5000×5000 mm(L×W×H)Front Door(mm):4000×4500mm(WxH), 1 Unit,4 folded, galvanized steel cover frame, with polystyrene(EPS) insideService Door(mm):2 units, 800×2000 mm (WXH), There are two sets of pressure lock which will automatically open when the pressure inside is over the limit.Total Power:88.5KW Cabin SystemWallboardDouble construction with insulations EPS, thickness 75mm, 0.5mm steel thickness, width: 950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside. Profiled bar beams in the roof to strengthen the room body.BasementNeed to build the base construction, 2 rows of pits in the ground for exhaust air, dimension of each pit is 18000×760mm(L×W), with galvanized grids made by twisted steel and flat bar above.Inlet Fan(Belt)Capacity: 21000m³/h eachOutlet Fan(Belt)Capacity: 36000m³/h eachPower: 7.5kwPower: 11kwQuantity: 6 setsQuantity: 3 setsPurification SystemG3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter.Heating SystemItaly Riello RG5S diesel burner, 260000Kcal/h, 3 setsHeating exchanger, stainless steelmax temp: 80 degree centigrade, heating time: 8-10 min(from 20 to 60)by Drying PhaseLighting SystemCeiling Light: 26 Units, each 4×36W, with electronic ballasts;                         Side Light: 32 Units, each 4×36W, with electronic ballastsControlling SystemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator,
 thermostat, power supply switch, emergency stop, ampere meter, voltmeter,
 hour meter, temperature limit controller.Environmental SystemG3 grade glass fiber floor filter, exhaust active carbon filter.
Designed Draw





Our production



High quality parts

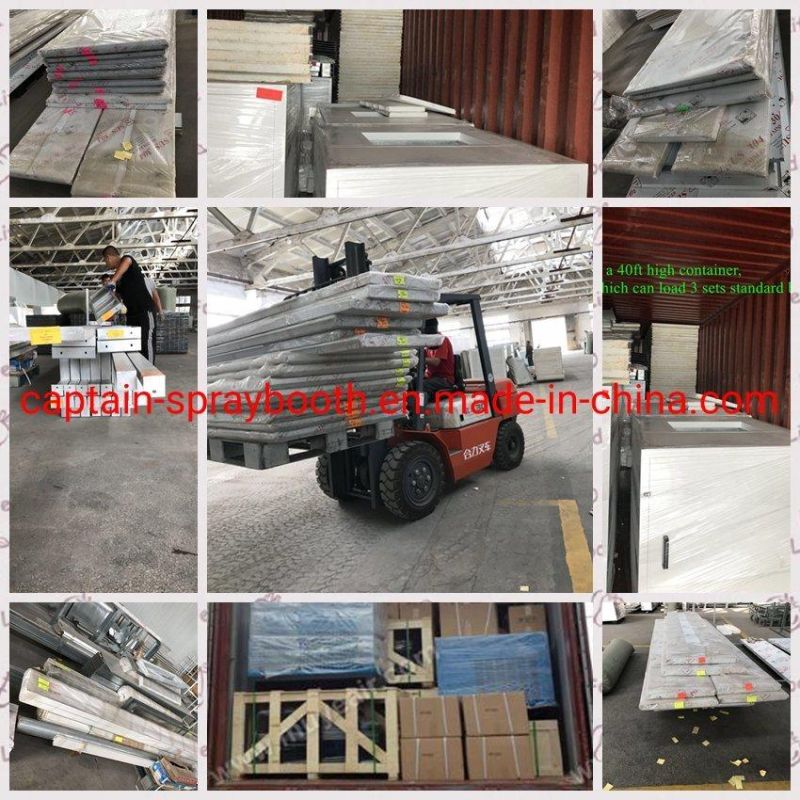

Package and delivery


Installation

Customer Installed Models


Different Colors


Our Workshop


Factory View
