CE Certificated Industrial Spray Booth/Painting Room

• After-sales Service：Local,on Line
• Warranty：24 Months
• Type：Spray Booth
• Certification：CCC, CE, GS, SGS
• Substrate：Sandwich Panel
• Brand：Captain

=== Base Info ===

• Model NO.：CP-1200
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Inside Dimension：20000X5000X5000 mm(Lxwxh)
• Outside Dimension：20150X6500X5500mm(Lxwxh)
• Pit：2 Rows of Pits, 18000X760mm(Lxw)
• Main Door：4-Folds, 4000X4500mm(Wxh)
• Escape Door：2 Units, 800X2000 mm (Wxh)
• Room Body：75EPS Panel, 0.5 Steel
• Lighting System：Ceiling Lights: 104PCS, Side Lights: 128PCS
• Intake Fan：6 Sets 7.5kw Centrifugal Fans
• Exhasuting Fan：3 Sets 11kw Centrifugal Fans
• Heating System：3 Units Riello Rg5s Diesel Burners
• Air Speed：0.3-0.35m,S
• Ventilation Type：Semi Downdraft
• Filter Type：Dry
• Voltage：Customized According to Need
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：96sets,Month

=== Description ===
Heating systemItalian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional)SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
 highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
 Reasonable structure, safe and reliable, big heat exchanging area, high heat
 utilization, more than 90% heat exchanging rateFilter systemPrefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter),
 floor filter, exhaust active carbon filterControl systemSpraying, risen-temperature spraying, baking temperature, time setting,
 lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
 limited-temperature device, most of electrical spare part is import, C.E standardTotal power12KW
The draw we made





Our production



High quality parts



Package and delivery


Installation

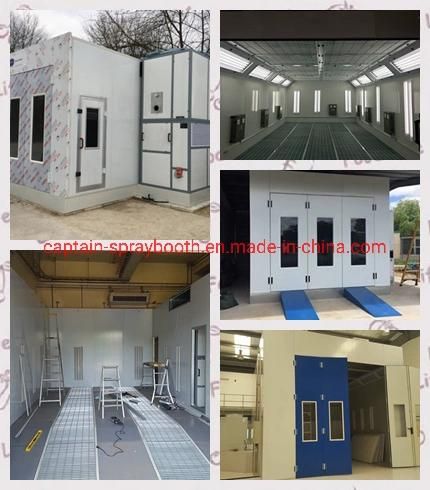

Customer Installed Models


Different Colors


Our Workshop


Factory View



Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
