Two Post Hydraulic Auto Lift (ORL-32FB)

Hangzhou Mulex Packing Co., Ltd / 2022-06-23

Two Post Hydraulic Auto Lift (ORL-32FB)

  • Lifting Capacity:3200kgs
  • Driving Type:Hydraulic
  • Certification:CE, ISO
  • Driving Motor Number of Mechanical Lift:1
  • Condition:New
  • Brand:Orient

=== Base Info ===

  • Model NO.:ORL-32FB
  • Max Lifting Height:1900mm
  • Min Height:110mm
  • Transport Package:Standard Export Packaging
  • Specification:CE & ISO
  • Trademark:Orient
  • Origin:China
  • HS Code:84254290
  • Production Capacity:500units, Month

=== Description ===

Basic Info.

Model NO. ORL-32FB Max Lifting Height 1900mm Min Height 110mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

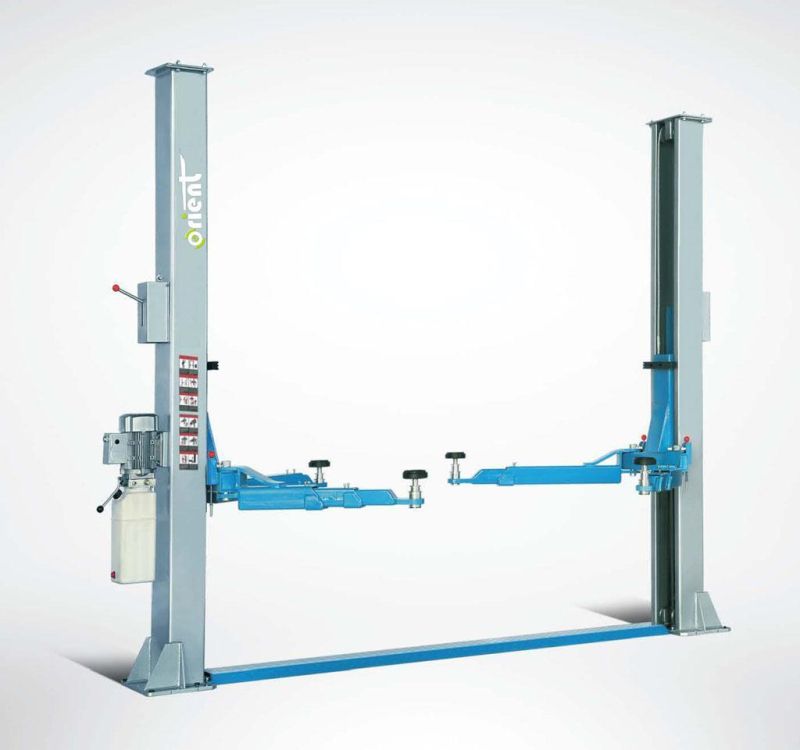

auto lift: two post hydraulic auto lift ORL-32FB
Two Post Hydraulic Auto Lift (ORL-32FB)




FEATURES:

*Floor plate design is ideal choice for low ceiling shop
*By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
*Hydraulic power unit configuration throttling device, can always djust the rate of decline.
*Manual lock release from one side,more convenient to use.
*Take three stages arm design, a larger adjustment range, for different vehicle chassis.
*Retractable tray with three screw designed, adjustment range 110-240mm.
*With 24V limit switch. Asymmetric column allows wider drive through clearance.
*Rubber support pad with spiral adujst the height and in stages adjust the height, optional.
*Rubber support pad door-opening protection.
*Truck adapters can optional.Have adopted 115% dynamic and 150% static loading tested.
*With guard rail, toe protection
*CE approved



Overall Dimensions:

Two Post Hydraulic Auto Lift (ORL-32FB)

Lifting Capacity32000kg
Lifting Height1900mm
Minimum Height110mm
Lifting Time40/50s
Overall Height2826mm
Overall Width3420mm
Width Between Columns2820mm
Motor Power2.2kw
Power Supply220V/240V/380V/415V
Weight636kg/680kg
Packing Size2900*530*770mm
