2017 Two Post Car Lift (ORL-32FE)

Hangzhou Mulex Packing Co., Ltd / 2022-06-23

2017 Two Post Car Lift (ORL-32FE)

  • Lifting Capacity:3200kgs
  • Driving Type:Hydraulic
  • Certification:CE, ISO
  • Driving Motor Number of Mechanical Lift:1
  • Condition:New
  • Brand:Orient

=== Base Info ===

  • Model NO.:ORL-32FE
  • Max Lifting Height:1900mm
  • Min Height:110mm
  • Transport Package:Standard Export Packaging
  • Specification:CE & ISO
  • Trademark:Orient
  • Origin:China
  • HS Code:84254290
  • Production Capacity:500units, Month

=== Description ===

Basic Info.

Model NO. ORL-32FE Max Lifting Height 1900mm Min Height 110mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

2017 two post car lift ORL-32FE
2017 Two Post Car Lift (ORL-32FE)


FEATURES:

*Electrical release at the control position
*Solid reliable lifting arm and sliding table
*Aluminum shell motor prevents overheated
*Operating control system with 24V safety voltage
*24V height limit switch provided
*Toe and feet protection device provided
*Car door crashing preventing rubber pad provided
*Adjustable picking up plate provided
*Hydraulic pressure pre-setting preventing from lifting vehicle with exceeding rated loads
*Routine testing with 115% dynamic and 150% static loading
*CE approved


Optional parts:
2017 Two Post Car Lift (ORL-32FE)

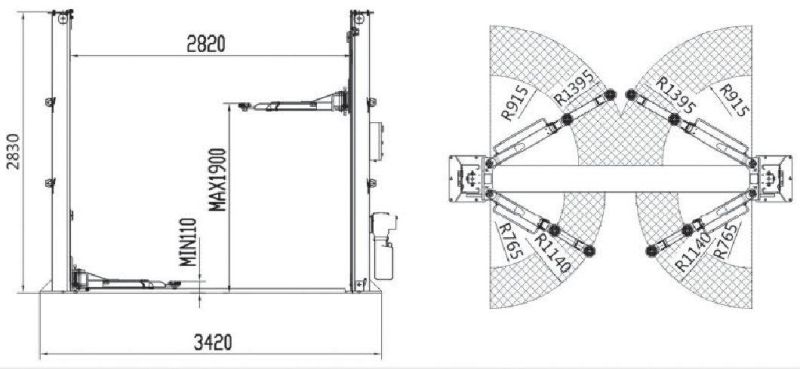

Overall Dimensions:
2017 Two Post Car Lift (ORL-32FE)


Lifting Capacity3200kg
Max.Lifting Height1900mm
Minimum Height110mm
Lifting Time50s
Overall Height2830mm
Overall Width3420mm
Width Between Columns2820mm
Motor Power2.2kw
Power Supply220V/240V/380V/415V
Weight635kg/670kg
Packing Size2900*530*770mm
