UHD Indoor Full Color P2.5 LED Video Screen

• Tube Chip Color：Full Color
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Pixel Pitch：2.5mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：160000 Dots,M2
• Scanning Mode：1,16 Scan

=== Base Info ===

• Model NO.：P2.5
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Cabinet Material：Aluminium
• Brightness：800-1000nits
• Refresh Rate：3840Hz
• Voltage：AC110-240V
• Contrast Rate：3000:1
• LED Lamps：Epistar
• Driver IC：Mbi
• PSU：MW
• System：Nova
• Transport Package：Plywood Cases
• Specification：600x337.5mm
• Trademark：LEDventure
• Origin：China
• HS Code：852859109
• Production Capacity：2000sqm,Month

=== Description ===

Item

Indoor UHD Series LED Display Screen

Model Number

UHD-P2.5

Pixel Pitch

2.5mm

Pixel Density(pixels/M2)

160000 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module Size(mm)

150x337.5mm

Module Resolution(pixels)

60*135p

Min.Viewing Distance(m)

2m

Brightness(nits)

800-1000nits

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

200W

Scan Mode

1/32 Scan

Protection Level

IP31

Cabinet Size(mm)

600x337.5mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

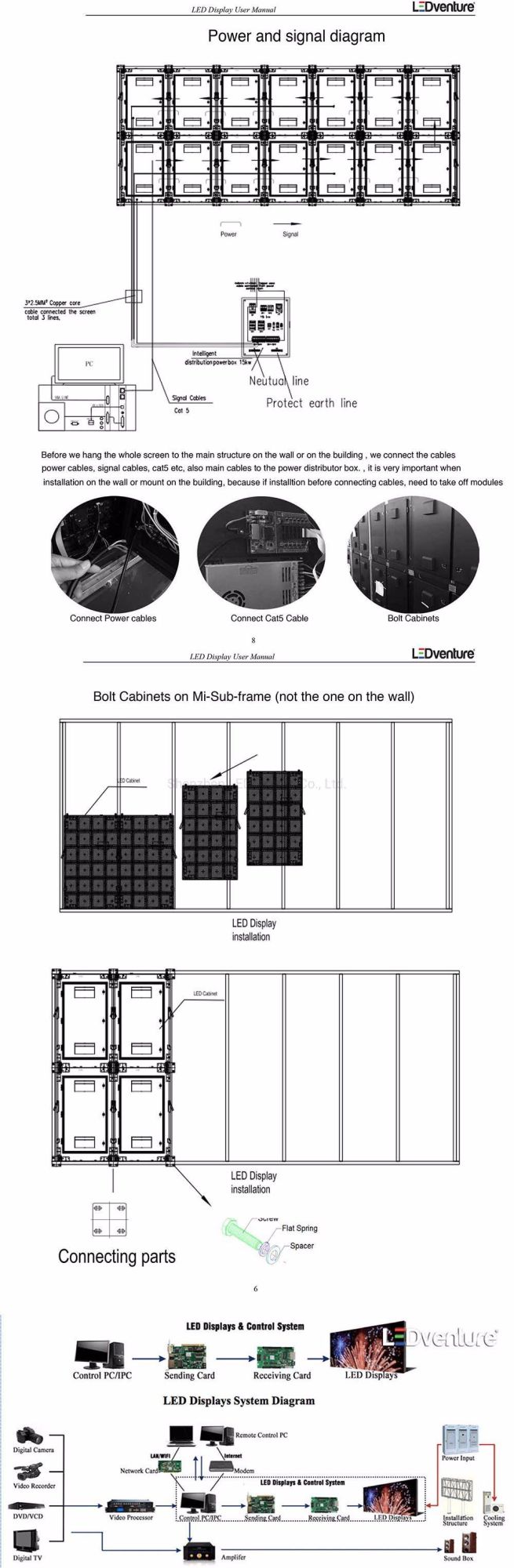

Part 5: Installation Methods

Indoor UHD Series LED Display Screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.




Part 6: Packing Information

Packing by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
