20W Fiber Laser Marking Machine for Steel Engrave

• After-sales Service：7X24
• Warranty：Laser Source 2 Years, Other Parts 1 Year
• Laser Visibility：Visible
• Applicable Material：Metal
• Cooling System：Air Cooling
• Technical Class：Pulse Laser

=== Base Info ===

• Model NO.：KT-LF
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：100X100mm
• Marking Speed：9000mm,S
• Cooling：Air Cooling
• Marking Content：Character, Date, Letter, Number, Logo
• Package：Plywood Case
• Laser Power：20watt
• Repeat Precision：0.001mm
• Computer Provided：Yes
• Marking Depth：0.01-0.2mm, According to Different Material
• Gross Weight：140kg
• Transport Package：Plywood Case
• Specification：CE FDA ISO
• Trademark：kuntai
• Origin：Wuxi, Jiangsu, China
• HS Code：8456100090
• Production Capacity：300unit,Month

=== Description ===

Basic Info.

Model NO. KT-LF Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 100X100mm Marking Speed 9000mm/S Cooling Air Cooling Marking Content Character, Date, Letter, Number, Logo Package Plywood Case Laser Power 20watt Repeat Precision 0.001mm Computer Provided Yes Marking Depth 0.01-0.2mm, According to Different Material Gross Weight 140kg Transport Package Plywood Case Specification CE FDA ISO Trademark kuntai Origin Wuxi, Jiangsu, China HS Code 8456100090 Production Capacity 300unit/Month

Product Description

China marking machine factory!
Factory great promotion!


20W automatic fiber laser marking machine on metals


KT-series high quality laser marking machine is a new generation laser marking system made with newest laser technique in the world,
It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function,
The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.


Specification:


Item No	KT-LF
Laser output	20W
Max marking speed	800 characters/s, height of cahrater 1mm
Laser wavelength	1064nm
Beam quality(m2)	< 1.8 square metres
Laser Q-switched frequency	20kHz~200kHz
Standard marking area	100mm× 100mm
Optional marking area	70mm× 70mm/150mm× 150mm/
Marking depth	< 0.1mm, according to different materials
Whole machine power	800W
Min line width	0.01mm
Repeatability precision	± 0.001mm
Power supply	AC 90-250V/50Hz 10A
Cooling system	Air cooling

Applition:



Advantages

1) USB interface connection: Will work with a Laptop.


2) Small and compact: The dimension of fiber marker is very small, convenient to be taken away.


3) High Precision, bring you the fantastic and satisfied marking effect.


4) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.


5) No Consumables: One Fiber marker can work for more than 10 years without any consumables.


6) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

7) The fiber laser beam comes out from the IPG fiber device directly, no need to adjust the laser optical path.


8) With Motorized Up/Down Focus and scale plate, capable to make location precisely, it is convenient and swift.



More details please refer to our website: ktmarkingmachine.en.made-in-china.com.


Packaging and shipping

Model: KT-LF

Each unit per plywood case

Outer dimension: 90X70X115cm

Gross weight: 150kg

Delivery date: Within 15 days after payment received

Shipping: By sea/by air/international express posting(door to door)



Warranty

@ 1. We supply the software which can assist the marking machine

@ 2. Free design of fixtures as customers required and technical support.

@ 3. We guarantee delivery time within 7 days

@ 4. We can produce the marking machine as your request.

@ 5. One year for free warranty (include whole machine and parts, the material except)

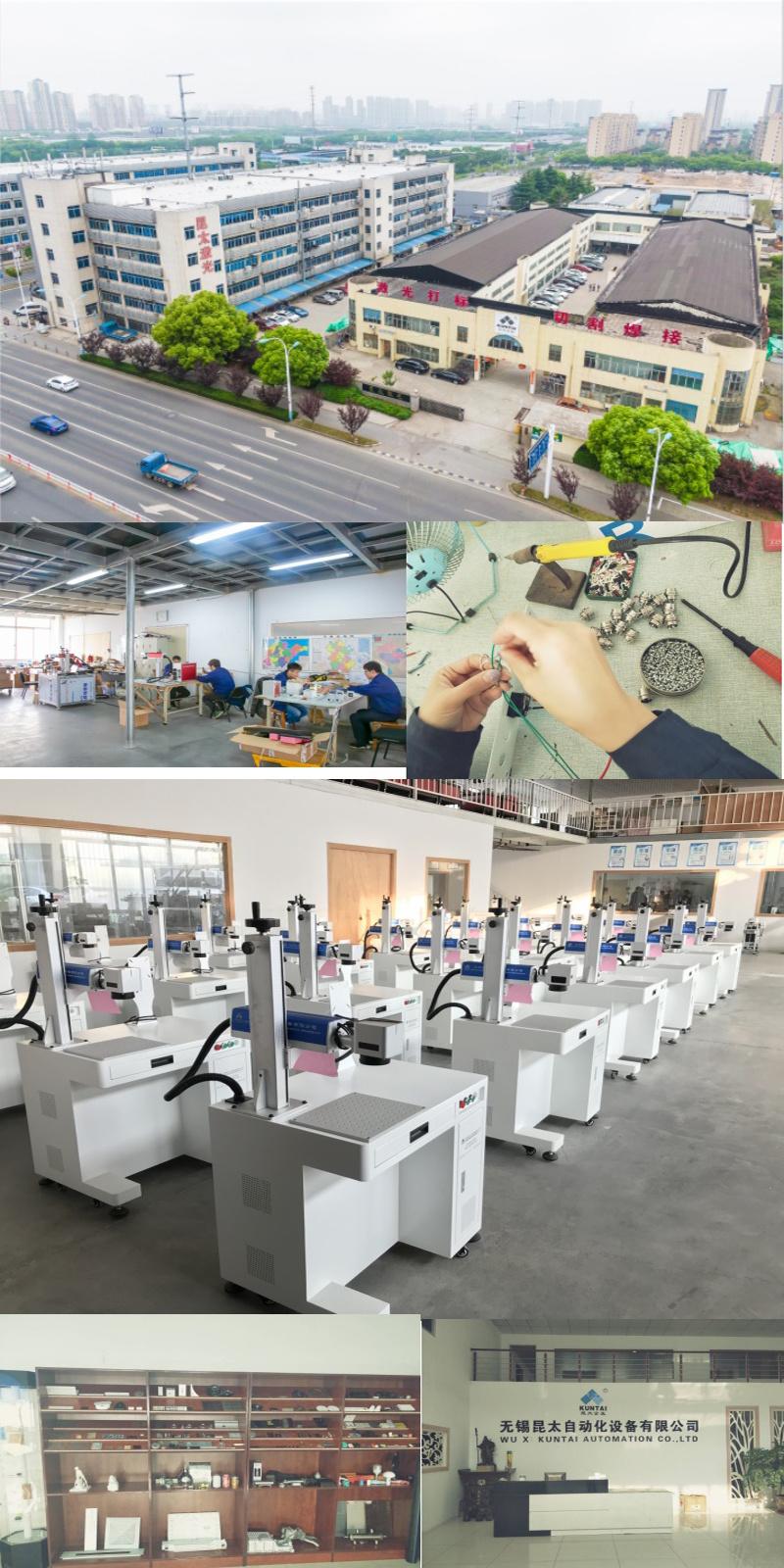

Our factory
