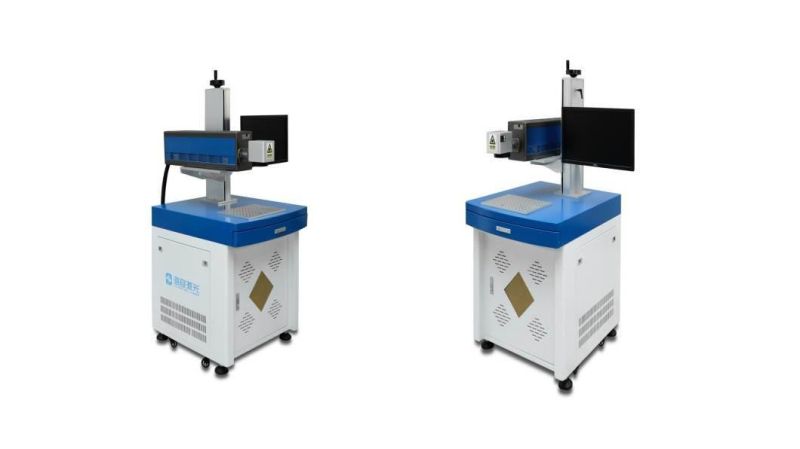

20W Long Working Life Time CO2 Laser Marking Machine
Taizhou Huangyan Shenhua Plastic Factory / 2022-06-23
- After-sales Service：Online Sales After Service
- Warranty：2 Years
- Laser Visibility：Visible
- Applicable Material：Nonmetal
- Cooling System：Air Cooling
- Technical Class：Pulse Laser
=== Base Info ===
- Model NO.：HR-C20
- Laser Wavelength：CO2 Laser
- Laser Classification：Solid Laser
- Type：CO2 Laser Marking Machine
- Marking Method：Scanning Marking
- Overall Power：800W
- Laser Power：20W
- Marking Area：80*80mm
- Minimum Line Width：0.01mm
- Transport Package：Standard Export Plywood Cases
- Specification：60cm*80cm*140cm(standard)
- Trademark：HAIRONG
- Origin：China
- HS Code：90132000
- Production Capacity：300units,Month
=== Description ===
Laser Power
20W
30W
50W
Overall Power
800W
1200W
3000W
Working Voltage
220V
220V
220V
Laser Wavelength
1064nm
1064nm
1064nm
Cooling
Air Cooling
Air Cooling
Air Cooling
Marking Area
80×80mm
110×110mm
150×150mm
Marking Speed
≤7000mm/s
≤7000mm/s
≤7000mm/s
Minimum Line width
0.01mm
0.01mm
0.01mm
Repeated Positioning Accuracy
±0.003mm
±0.003mm
±0.003mm
Beam Quality
m21.4-2.0(<2)
m21.4-2.0(<2)
m21.4-2.0(<2)
Marking Depth
0.01mm-0.7mm
0.01mm-0.7mm
0.01mm-0.7mm
3.Product Superiority
1.)The imported RF CO2 laser is used and the unique integrated design of maintenance free sealing ensures more reliable operation of the laser.
2).The maximum average output laser power is optional.
3).It is widely used in craft gifts, bamboo and wood products processing, suitable for online operation.
4).CO2 laser is a revolution in laser design and production. It is small and powerful.
5).The switching power is used for DC power supply without dangerous high voltage.
6).It can work continuously for more than 20,000 hours. It is a strong, durable and highly reliable industrial laser source.
7).It can be easily installed on the workbench or small processing machine, and has stronger processing capacity than the traditional gas flow laser.
4.Application Fields
The CO2 Laser Marking Machine is applicable to the marking of most non-metallic materials, such as paper packaging, plastic, leather cloth, glass ceramics, resin plastic materials, bamboo and wood products, PCB board, etc. It is widely used in the marking and cutting of graphics and characters in the fields of garment accessories, leather, food and beverage packaging, electronic components, handicraft processing, glass and stone processing, etc.
5.Marking Sample
6.Our Company
7.Our Factory
8.Exhibition
