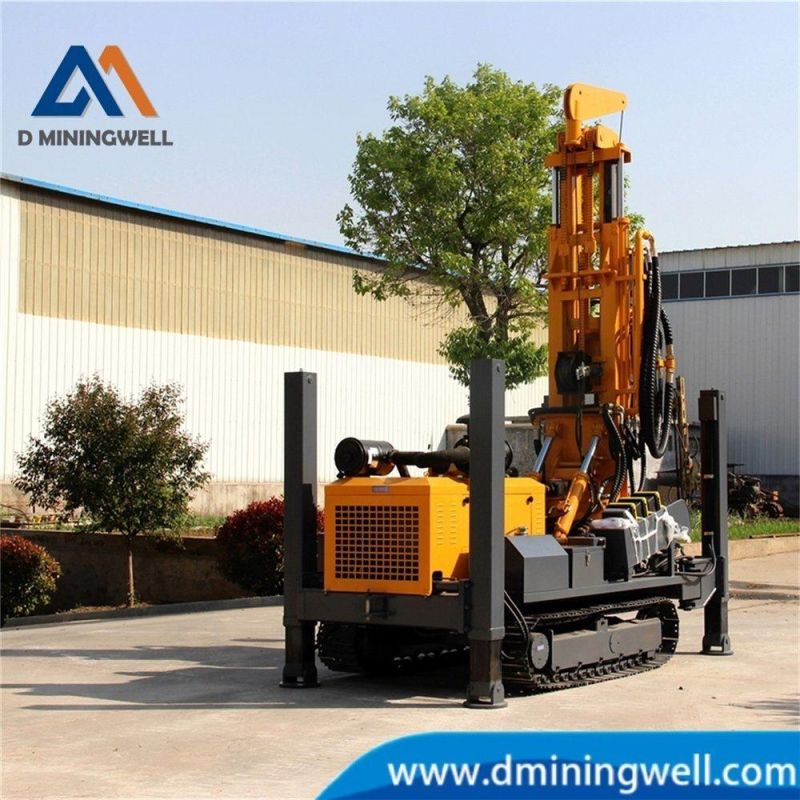

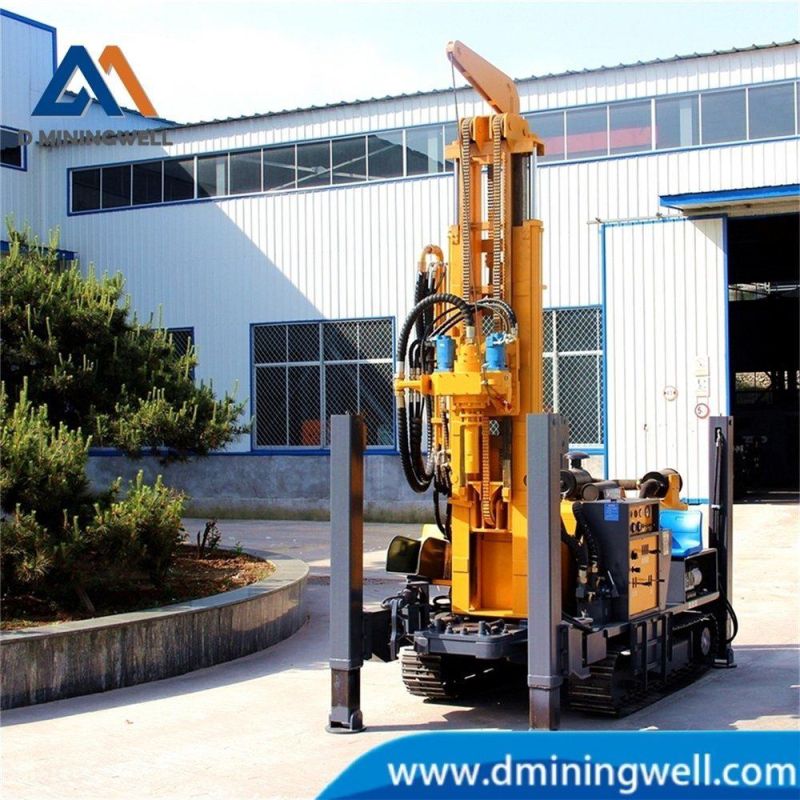

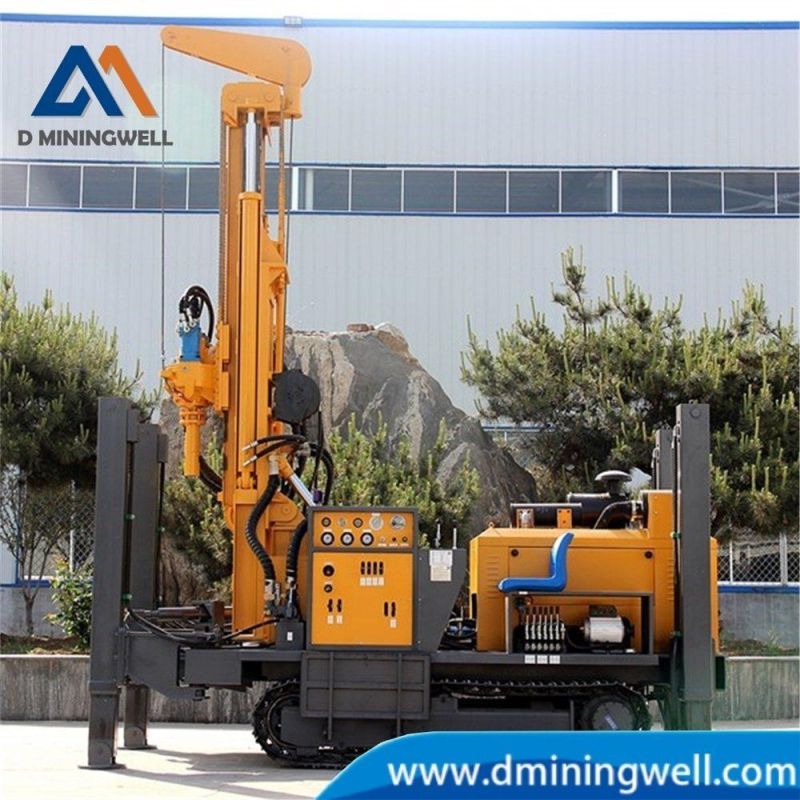

MW300 Steel Crawler Rubber Crawler Drilling Equipment 300m Deep Well Drilling Rig on Promotion

=== Base Info ===

=== Description ===

Technical Parameters of MW300 Crawler type water well drilling rig

type

MW300

The weight

9T

Dimension

4100*1950*2600mm

The hole diameter

140-325mm

Drilling depth

300m

One-time advance length

6.6m

Walking speed

2.5KM/H

Climbing angles

30

Power

85KW

Using air pressure

1.7-3.3MPA

Air consumption

17-35

Drill pipe length

1.5m  2.0m  3.0m  6.0m

Drill pipe diameter

89mm,102mm,

Rig lifting force

20T

Swing speed

55-115rpm

Swing torque

6200-85000N.m
