Water Drilling Rigs Well Machine for Blast Hole Bore Water Drill

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SLY485 Drill Hole Depth 200 Meters Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Crawler Transport Package Standard Shipping Packing Specification 4900MM*1600MM*2400MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Our Advantages

We are factory with 22 years history, our machine exported more than 60 countries.
We got ISO, CE certificate.


Product Introduction
SLY485 water well drilling rig
 SLY485 multi-function crawler water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating, it can also meet the engineering basis for reinforcement, loose gravel drilling, rock formation drilling and a variety of engineering requirements.
Technical Parameters

Bore diameter(mm)	115-300
Bore depth(m)	200
Walk speed(km/h)	0-2.5
For rock(F)	6-20
Air pressure(Mpa)	1.05-3.0
Air consumption(m³/min)	16-30
Once promotion(mm)	3000
Skid max angle(°)	90
Maximum height from the ground(mm)	320
Rotation Speed(r/min)	0-100
Rotation torque(NM)	3900
Lifting power(T)	8
Climb ability(°)	25
Dimension(L*W*H)(mm)	4900*1600*2400
weight(Kg)	5700

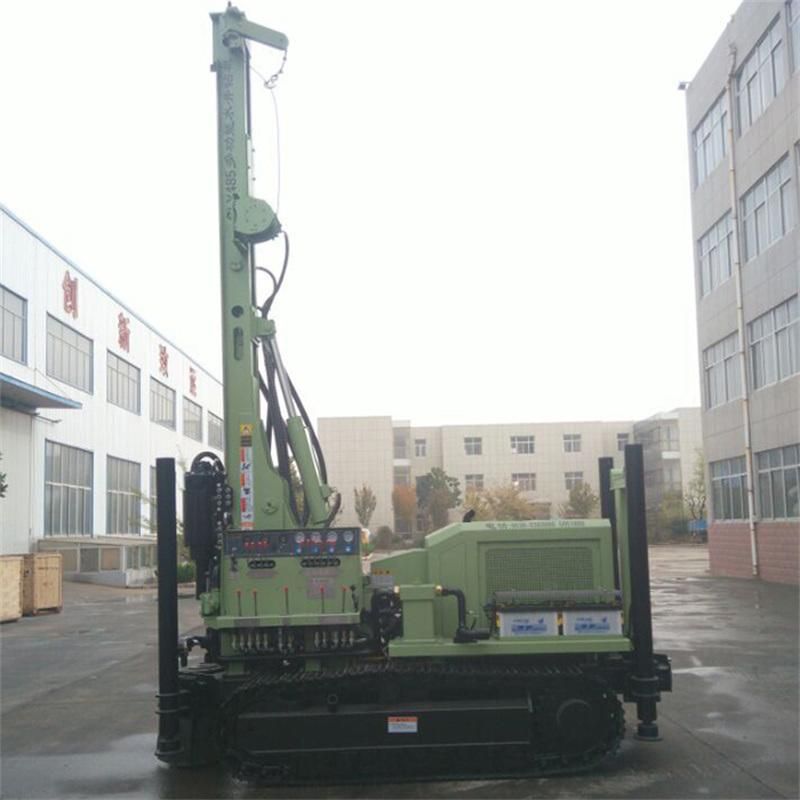

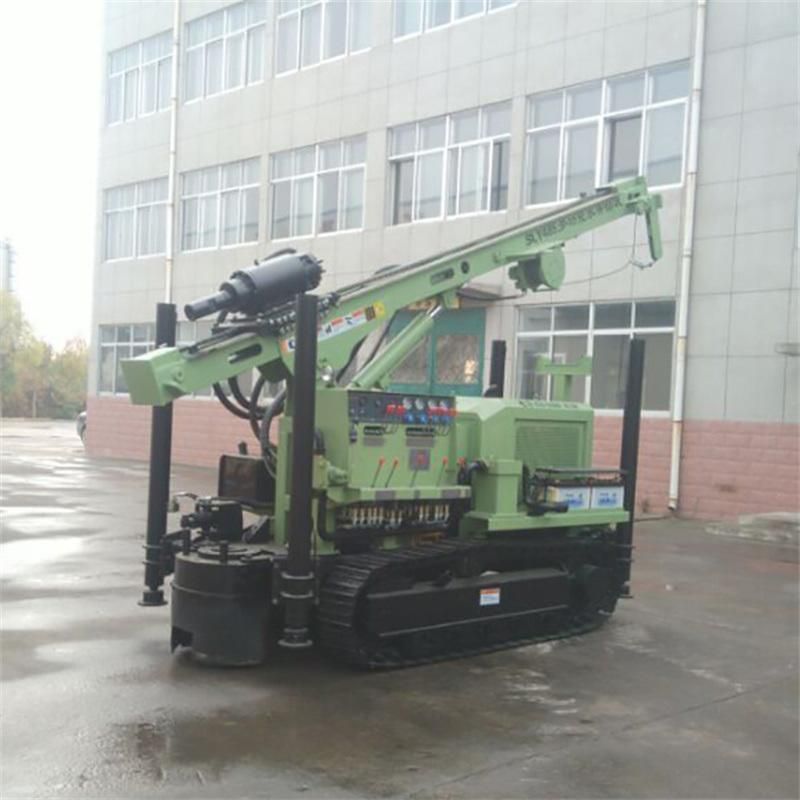

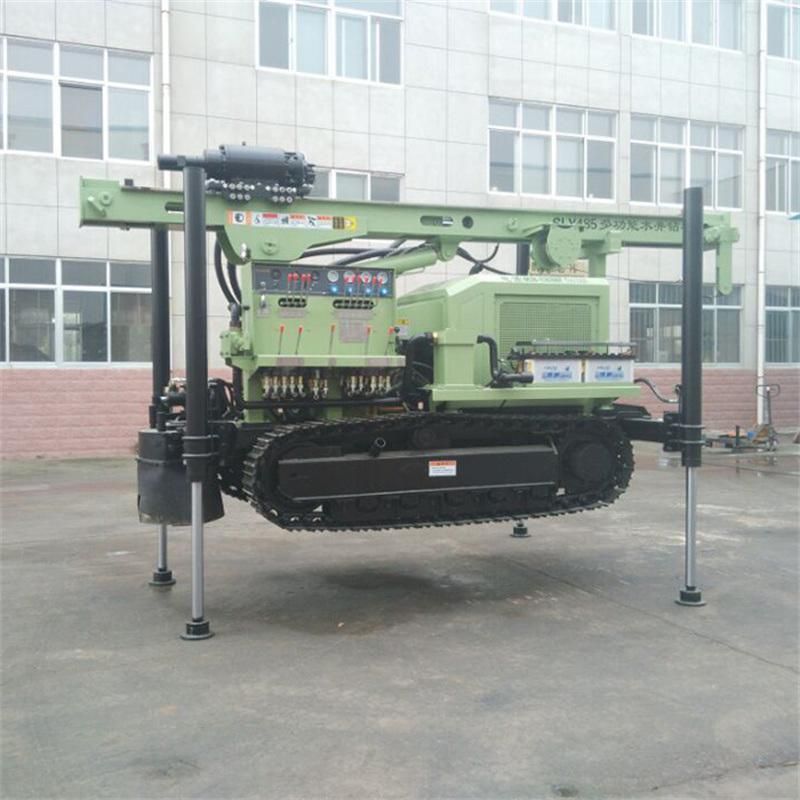

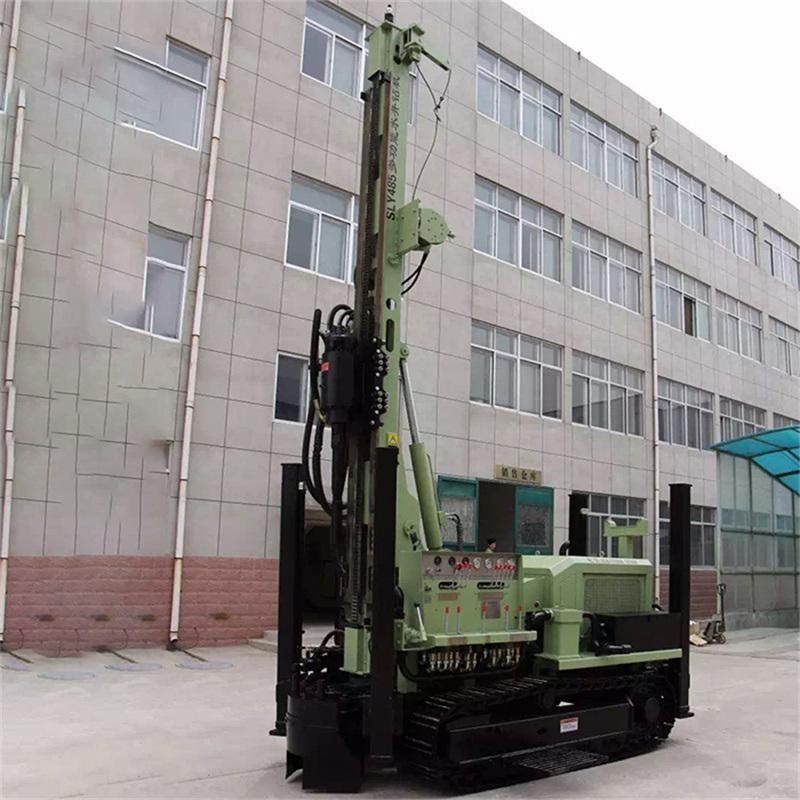

Product Display

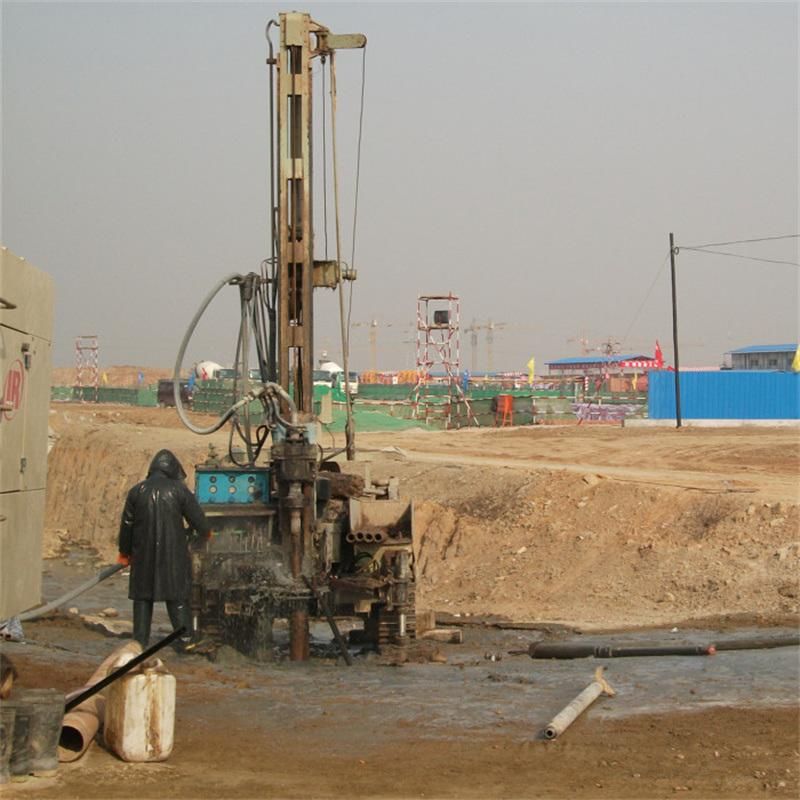

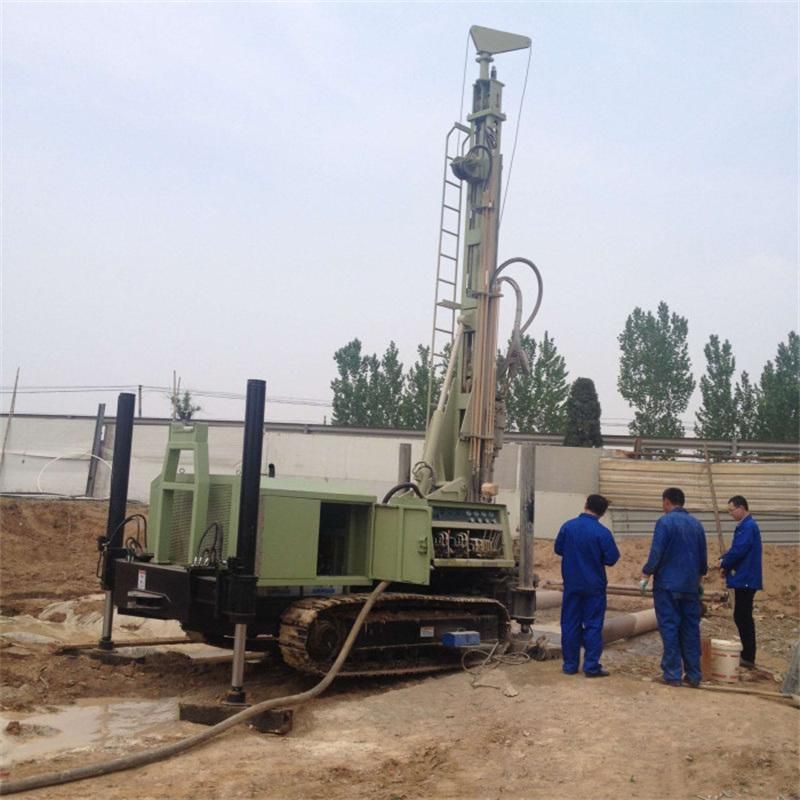

Product Application


Company Profile





FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
