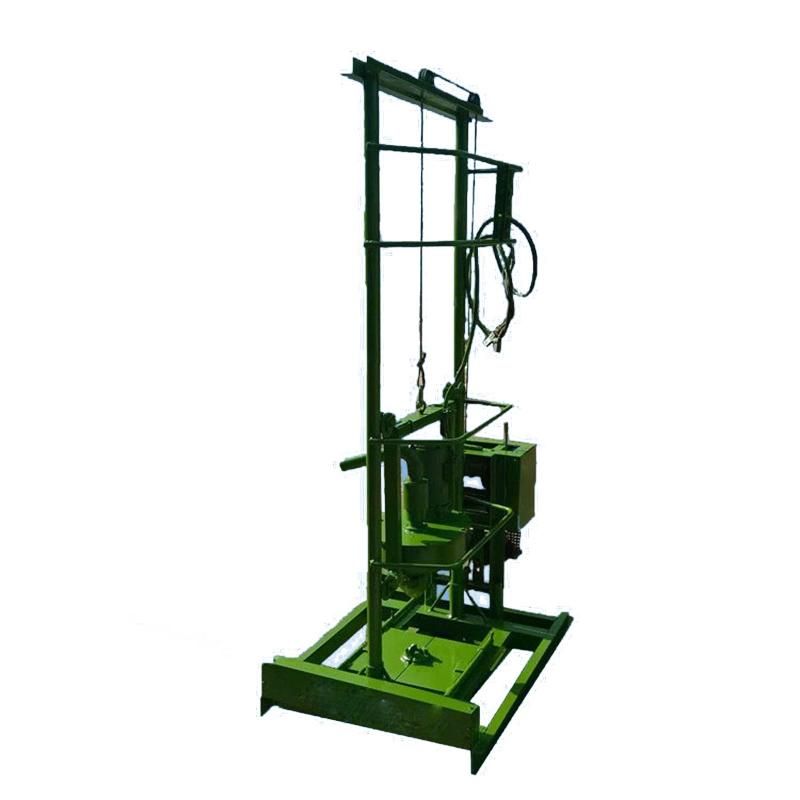

Bf200-Zd Light Weight Water Well Drilling Rig

=== Base Info ===

=== Description ===

Basic Info.

Model NO. BF-200ZD Drilling Way Rotary Type Portable Transport Package Wooden Box Specification 900*1050*750mm Trademark Bafang Origin China HS Code 8430419000 Production Capacity 500 Set/Month

Product Description

 JA42-125 water well drilling rigAdvantage

1. An area of small, light weight, after dismantling the longest no more than 2 meters, small tricycle installed under the maximum quality of less than 40 kg, a person moving.
2. Removable design, 50mm column steel frame support, more secure, more solid.
3. Drilling head parallel shaft reducer structure design, low noise, do not jump teeth. Smooth and reliable operation. Water supply activities leading precision machining. The axle load-bearing design, hanging bear strong, more scientific and secure.
4. To enhance the chassis with stamping links, installation more convenient. If coupled with mud pump, hit the 200m deep well.
5. R & D alone, automatic unloading cover device to solve the wells for many years on the shaft easy to unload the well difficult technical problems.

Main Parameter

Model	JA42-125
Drill depth	40-180m
Drill diameter	30-400mm
Motor power	4.5kw
Drill pipe diameter	42mm
Weight	100kg
Packing dimension(L*W*H)	90*105*75cm
Drill pipe length	80pcs*2m/pcs
Drilling bit	3 wings dimond
