Hydraulic Crawler Type Rock Blasting Drilling Rig (GL120Y)

=== Base Info ===

=== Description ===

Basic Info.

Model NO. GL120Y Type Crawler Mining Object Mining Transport Package Standard Seaworthy Packing Trademark Glorytek Origin China Production Capacity 20 Sets/Month

Product Description

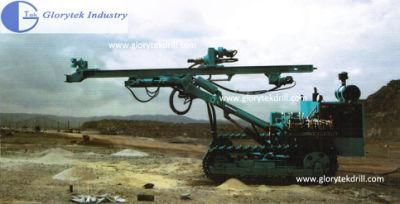

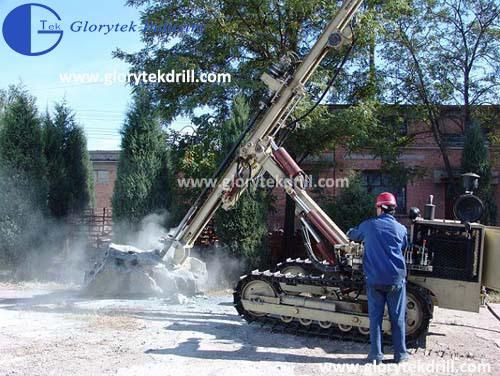

GL120Y Hydraulic Crawler Blast Hole Rock Drilling Machine
GL-120Y high pressure DTH drill powers the moving of the oil hydraulic motor, rotation, propelling and lifting, swing angle location and so on by diesel (electronic motor) driving the hydraulic oil pump.

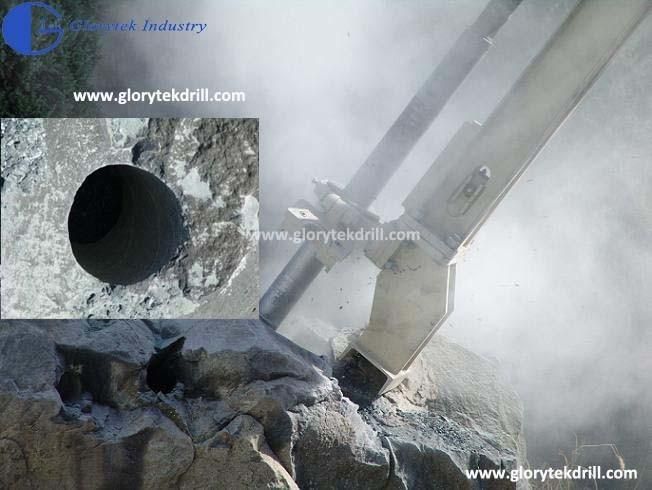

The down the hole hammers consume the pressured air only when drilling. It can save energy (fuel oil or electric quantity) as 40%~50% as the total pneumatic drill. GL-120Y is good for blasting hole in surface mine, water electric building, road construction and stone project.

Hole diameter	105-140mm	Angle of stick	up48° down19°
Hole depth	40m	Max Lifting Capacity	51.9 KN
Air pressure	1.05_2.4Mpa	Rotary speed	0_80r/min
Air consumption	11.3--24m3/ min	Traveling speed	0_4.0 Km/h
Max hole	3.1m	Braking	wet-type double disk, release hydraulic oil, spring application
Grade ability	20°	Maximum inclining angle of frame	180°
Overall dimensions	880×2100×3000mm	Maximum pivot angle of frame	right 35° left 50°
Stick swing	left and right 45°	Weight	7000 kg
