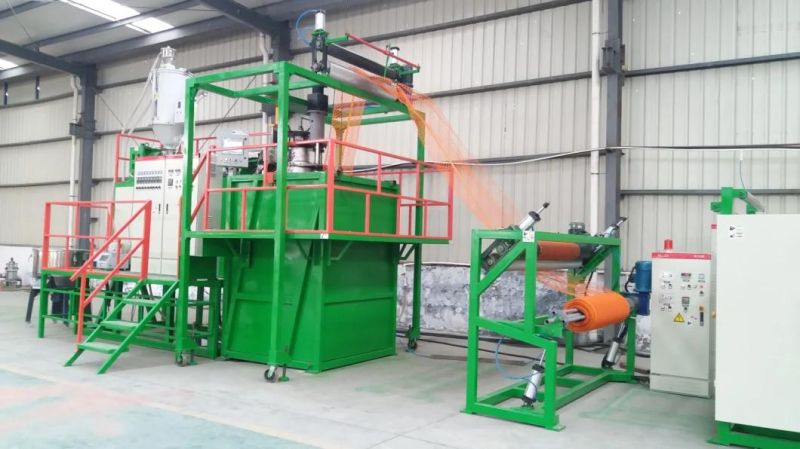

Professional Manufacturer Plastic Net Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. D-FWB75 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Transport Package Packing by Plastic Film Specification 5t Trademark Dingyuan Origin China HS Code 84778000 Production Capacity 50set/Year

Product Description

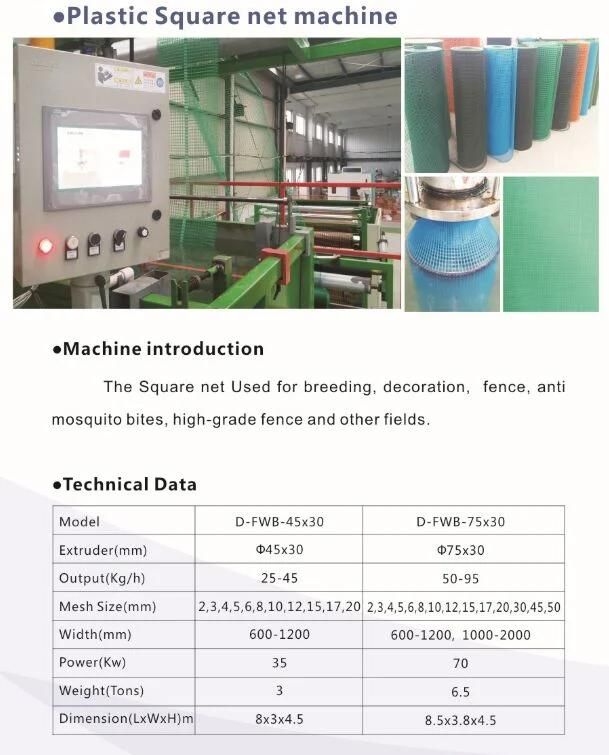

Model                                                            D-RB-75×30
1> Extruder                                                      1 sets
Raw material                                                 PP/PE-HD
Hopper                                                         100 liters desiccant drying hopper,
                                                                      removal the water in raw materials and additives
Dia. of screw                                                 Φ75mm
L/D                                                                30:1
Screw material                                              38CrMoAlA high grad alloy steel processed surface by nitriding
Barrel material                                              38CrMoAlA high grad alloy steel processed surface by nitriding
Driving method                                              Frequency converter speed regulation
Driving power                                                37KW
Speed-change type                                       horizontal deceleration box special for plastic machinery
Automatic control temp. device                     5 zones, Ceramic Heater
Temperature control meter                            PID intelligent temperature control
Heating power                                               approx. 30KW
Extruder output                                              Max.90Kg/h
2> Hydraulic drive net change set             1 set
   Net changer method                                  Draw board net change by Hydraulic
   Melt Pressure                                             Digital melt pressure sensor
   Converter pressure of Net-changer           40MPa
   Hydraulic station                                        Special hydraulic station for net-changer
   Filter mesh precision                                  80 - 120 mesh

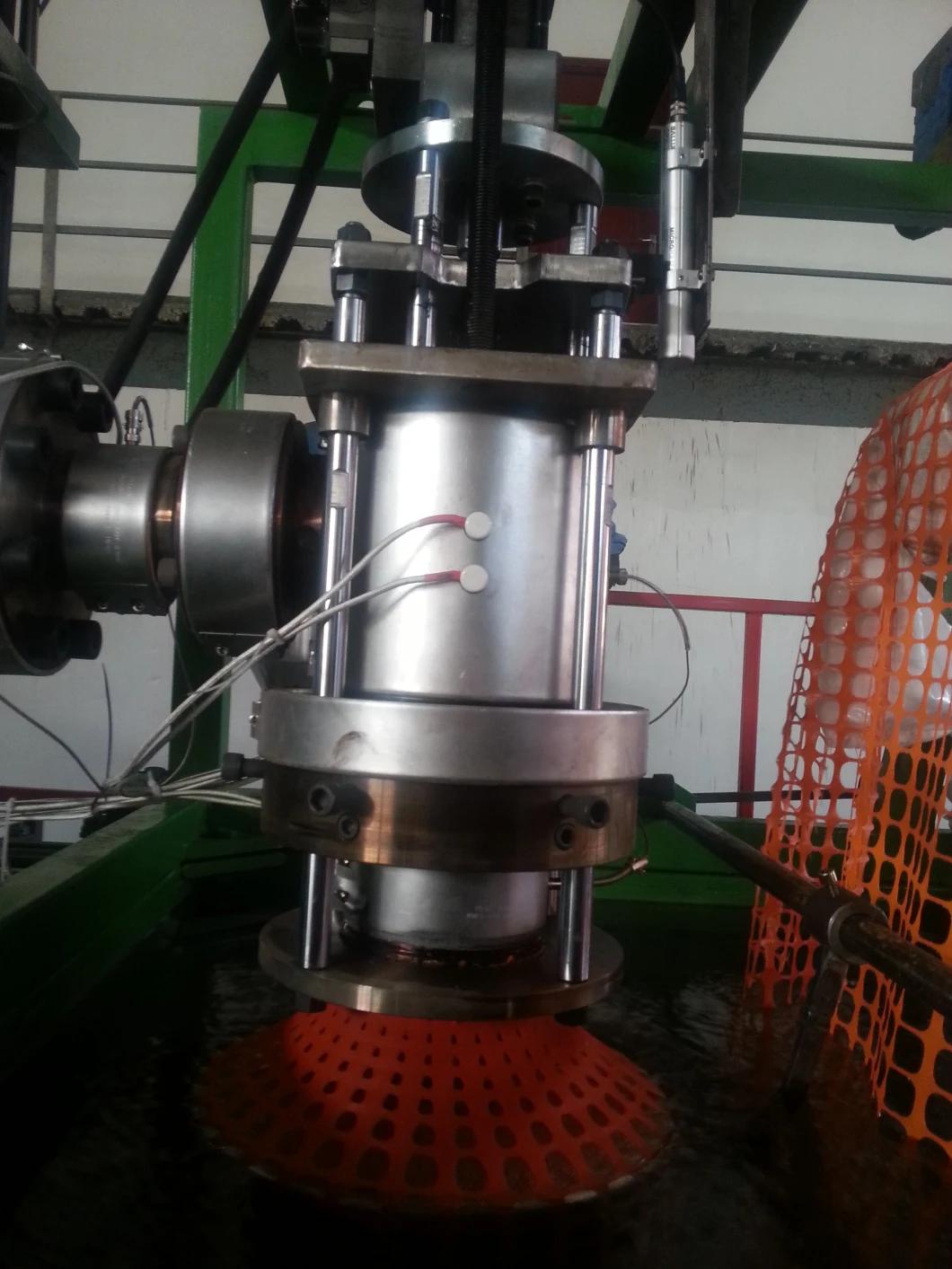

3> Square net forming die head                 1 set
   Mesh forming method                                 Dynamic reciprocating forming
   Mesh control method                                   PLC computer touch screen control
   Automatic temperature control device        Stainless steel heater, PID intelligent temperature control
   Heating power                                             Approx 6KW
   Motion guide                                               Straight line circular guide rail
   Melt pressure                                              5 - 25Mpa
   Mould                                                          1 set







4> Hydraulic transporting system                      1 set
Driving motor                                                3.7KW
Oil pump                                                       Constant-pressure variable pump
Material of oil-tank                                        Stainless steel
Volume of oil-tank                                         100L
High pressure filter precision                         5μ  75%
Low pressure filter precision                         10μ 75%
Filter blocking protector                                1 set
Hydraulic accessories                                   1 set
Accumulator                                                  1 set
Mesh molding control valve                           High response servo valve,1set
Driving oil cylinder                                         Low friction resistance hydraulic cylinder
5> Cooling and calibrating system            1 set
Calibrating method                                         Calibrator
Cooling method                                              By water



8>Double station mesh winding system          1 set
Winding method                                            Double work station
Driving power                                               2.2KW
Winding torque                           35Nm - 5Nm adjustable
Metering mode                           Digital meter control
   Measurement alarm                      Sound and light alarm
Effective width                                             1250mm
Winding shaft                                                Φ35 Mechanical reel
Electrial Configuration:
Motor                                                             Made in china
Main frequency converter                                  SIMENS or ABB
Main low-voltage electrical appliances               Schneider brand
main temperature control instrument                  RKC brand
Power capacity                                                   75Kw,380V,50HZ
Machine size:                              14×3×2.6 m
