Haidai Intelligent PP Plastic Nylon Twisted 3 Strand Rope Making Machine

=== Base Info ===

=== Description ===

Basic Info.

Rope Diameter 3-32mm Rope Material PP/PE/HDPE/Nylon/Pet/Cotton/Sisal/Jute Output According to Different Modle Machine Color Grey and White or as Requirements Advantages High Output, Stable Body, High Technology Rope Structure 3 Strand or 4 Strand Rope Making Process Twisting Transport Package Fixed in Container Trademark CNRM Origin China Production Capacity 5sets/Month

Product Description

Product Description
Customer Satisfaction Index:  100%

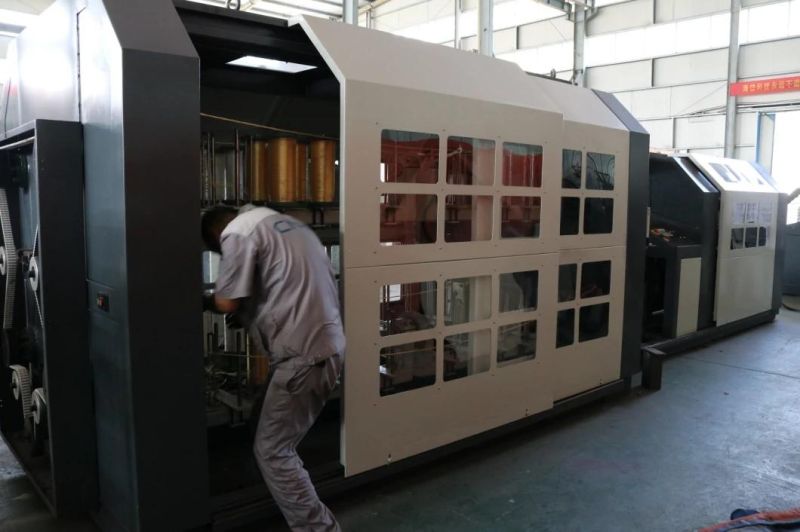

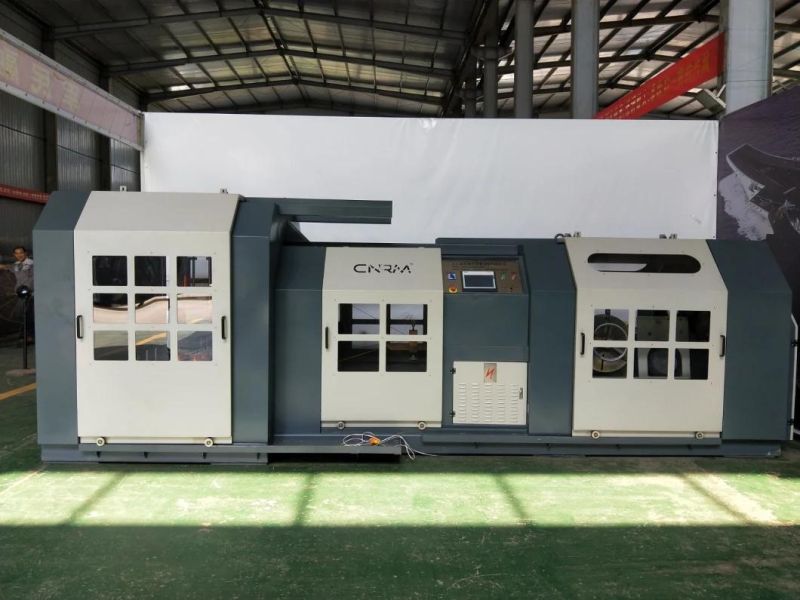

CNRM PP Plastic Rope Making Machine for twisting rope

Our 3 strand 4 strand twisted monofilament raffia danline pp pe hdpe nylon pet plastic rope making machine can make 3 strand or 4 strand twisted ropes in different material, such as pp, pe, nylon, cotton and so on. The rope range from 3mm to 32mm. The polypropylene rope making machine is very popular in Africa, Middle East, South America and Southeast Asia such as Kenya, Algeria, Sudan, Egypt, Mexico, Vietnam
and so on. We have helped many customer in these area to set up their own plastic rope or fishing net making factory.

Item	HDTM-M33	HDTM-M44	HDTM-M55	HDTM-M66	HDTM-M77
Rope Range	3-10mm	6-14mm	12-22mm	18-26mm	22-32mm
Lay Range	15-38mm	20-50mm	32-78mm	40-105	45-130
Power	5.5kw	7.5kw	11kw	18.5kw	20kw
Take-up capacity	Φ130*Φ500*Φ320	Φ130*Φ600*Φ400	Φ130*Φ600*Φ400	Φ140*Φ700*Φ450	Φ200*Φ550*Φ650
Size of pay-off bobbin	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)	175*300mm(8)
Qty of 8" bobbin	8*3 or 8*4	24*3 or 24*4	32*3 or 32*4	46*3 or 46*4	64*3 or 64*4
Machine weigth	3200kg	5300kg	7200kg	10000kg	13000kg



Key Features

-Power transmission by timing belts.
-Auto stop after yarn breakage to control wastage.
-Digital length counter meter.
-Door Sensor.
-A.C. frequency drive.

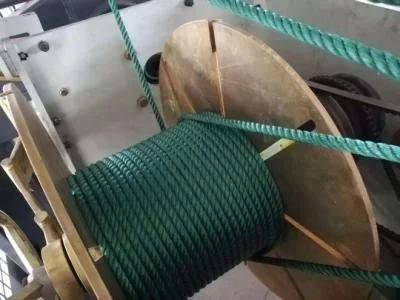

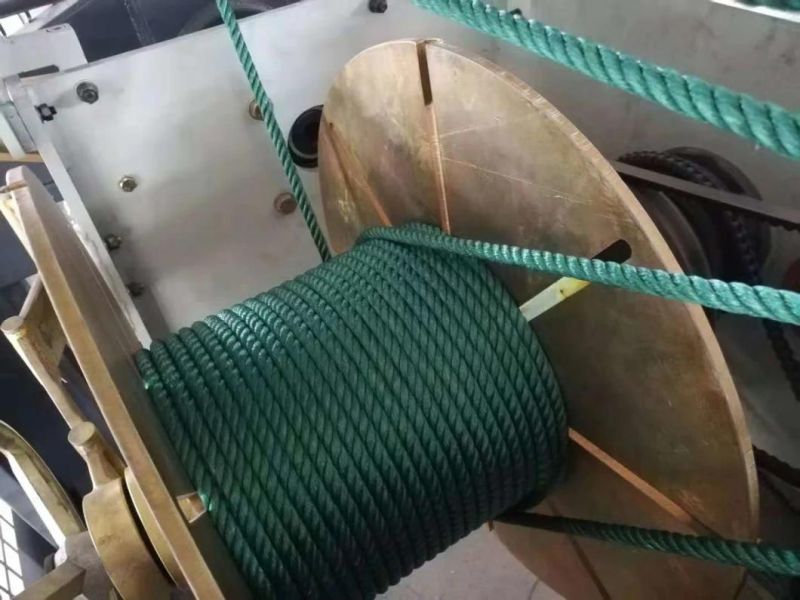

-Direct coiling head. No need packing again.

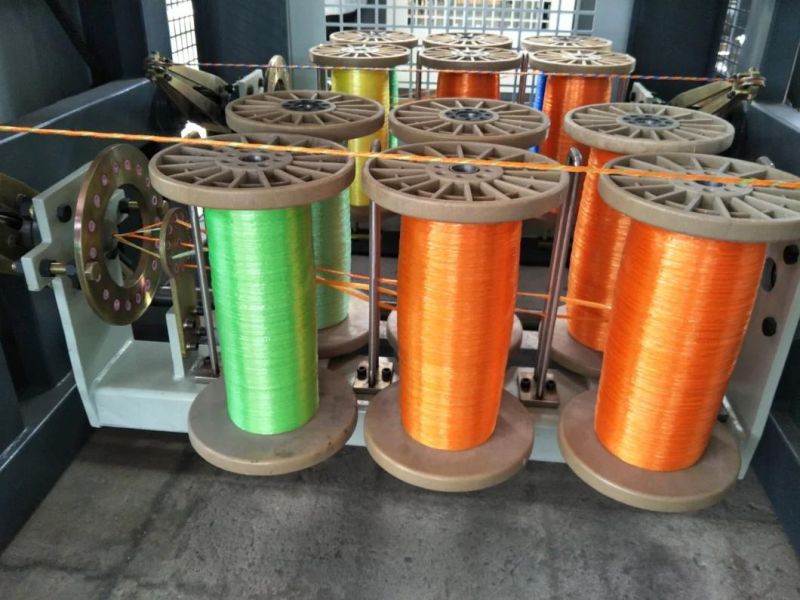

Detailed Images

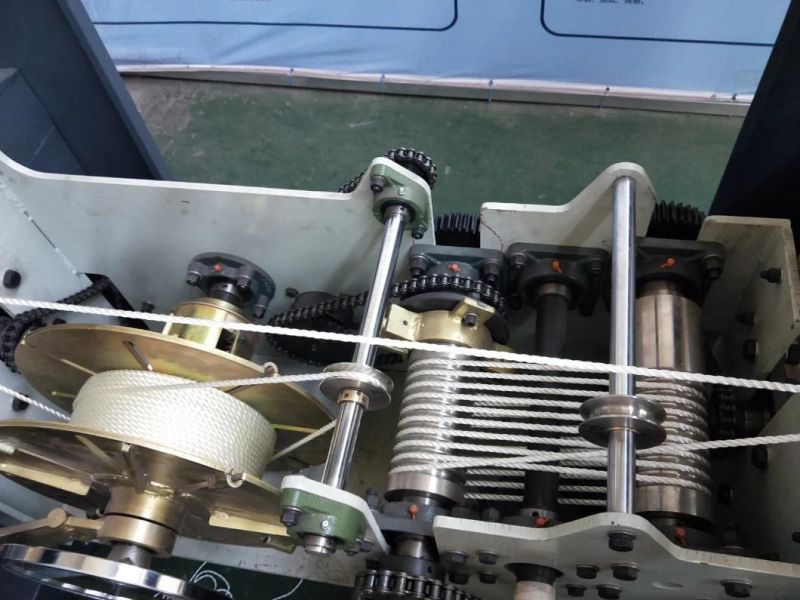

Special Treatment of CNRM PP Plastic Rope Making Machine for twisting rope

-for rope cradle and strand cradle, make the coating fullness and uniform, has good wear resistance and corrosion resistance

-Galvanization treatment for rope roller and flyer arm, make color zinc plated, the work piece anti-rust and beautiful.





Our Company


Our Service

Pre-sale service

* Inquiry and consulting support.
* Sample testing support.
* 24 Hours online consultation
* Visit our factory at anytime.

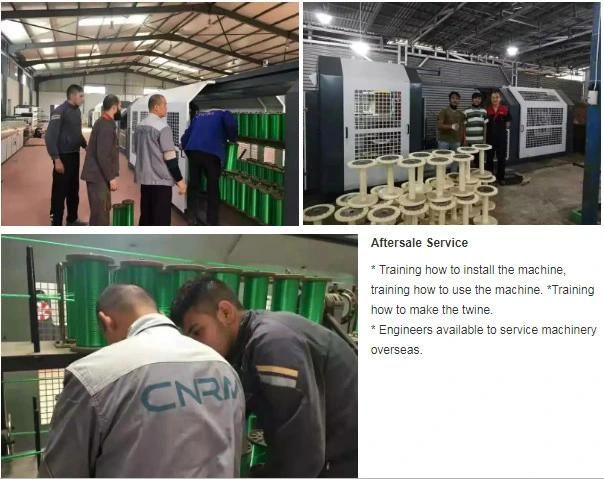

After-sale service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

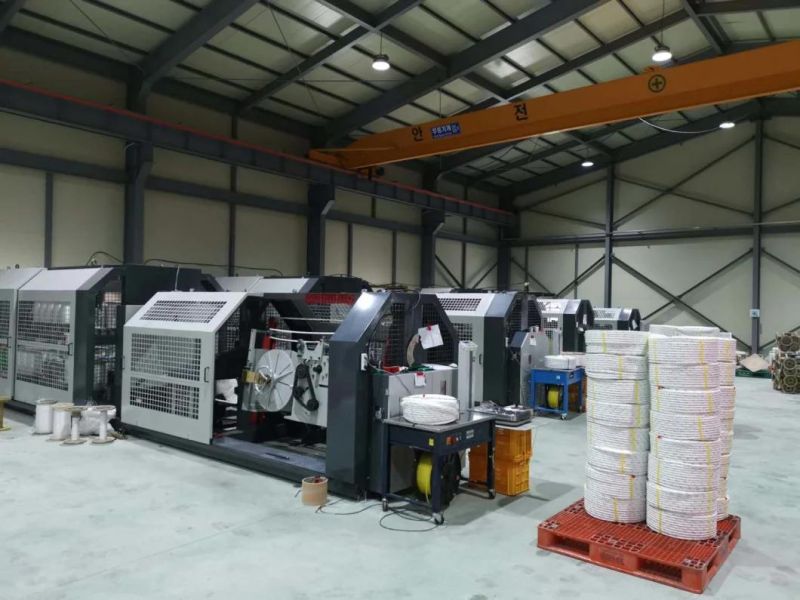

These 4 strand polypropylene rope making machine pictures are taken from our customer factory during machine installation. We got very good feedback from them. Customer satisfaction is our greatest happiness

Material ChooseAll of our machinery parts or electrical devices are in line with national standards

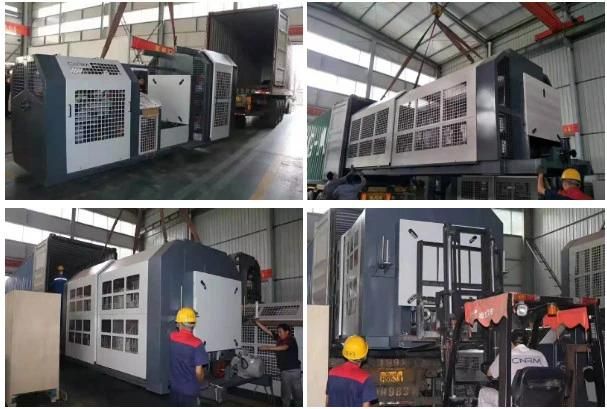

Packing & Delivery

The M55 12-20mm PP Plastic Rope making Machinery need one 40FT container, the machine will be fixed tightly in the container.FAQ

Q: Do you have after-service?

A: Yes, we have reliability after-sale team, we can send engineers to your factory for installing the machine and teaching the staff using the machine skillfully.

Q: What is the material you use?

A: We use new strong material at main axis, which is important for stability, use time, running smooth,and produce the product more attractive. Good quality motor and electrical parts ,guarantee the use time and running of the machine. We can change the motor brand as you need.

Q: Does one machine can make all size ropes?

A: No, each model machine has its' working range, for example, M33 rope machine, it is suitable for making 3-10mm ropes, and M44 is making 6-14mm rope,  M55:12-20mm rope, M66: 18-26mm, M77: 22-32mm rope, so please let me know what size rope you want to make, then i will give you best suggestions.

Q:  How long is the delivery time?

     Can i see your machine videos?

     What is the payment item?

If you have another questions, pls feel free to contact us as below: My whatsapp and wechat will be on-line 24hours.
