Automatic Corn Citric Acid Processing Plant with ISO Approval

• Processing Material：Agronomic Products
• Application：Food and Industrial Field
• Customized：Customized
• Certification：CE, ISO9001
• Power Source：Electric
• Automatic Grade：Semi-Automatic

=== Base Info ===

• Model NO.：MK
• Raw Material：Corn, Corn Starch, Molasses
• Product Name：Citric Acid Plant
• Process：Calcium Salt Citric Acid Processing Equipment
• Final Product：Citric Acid, Coarse Protein
• Equipment Included：Fermentor, Belt Filter Press, Crystallizer
• Workers Qty：30-35 Workers Per Shift
• Installation Time：8-12 Months
• Capacity：60-300 Tpd Output
• Construction Area：6000-20000 M2
• Equipment Name：Citric Acid Equipment
• Key Equipment：Centrifuge, Crystallizer, Fluid Bed Dryer
• Drying Equipment：Flash Dryer
• Transport Package：Naked or Wooden Case
• Specification：Customized
• Trademark：Mekcey
• Origin：Beijing
• Production Capacity：24~300tpd Output

=== Description ===

Basic Info.

Model NO. MK Raw Material Corn, Corn Starch, Molasses Product Name Citric Acid Plant Process Calcium Salt Citric Acid Processing Equipment Final Product Citric Acid, Coarse Protein Equipment Included Fermentor, Belt Filter Press, Crystallizer Workers Qty 30-35 Workers Per Shift Installation Time 8-12 Months Capacity 60-300 Tpd Output Construction Area 6000-20000 M2 Equipment Name Citric Acid Equipment Key Equipment Centrifuge, Crystallizer, Fluid Bed Dryer Drying Equipment Flash Dryer Transport Package Naked or Wooden Case Specification Customized Trademark Mekcey Origin Beijing Production Capacity 24~300tpd Output

Product Description

Automatic Corn Citric Acid Processing Plant With ISO Approval
Product Description Citric acid is mainly used in the food and beverage industry as sour agents, flavoring agents and preservatives. In the chemical indusry, cosmetics industry and washing industry, it is used as antioxidants, plasticizers, detergents, etc..

Process Flow Diagram



Process Description

(1) Crushing
The cleaned corn after removing the impurities and metering is sent to the hammer mill to crush. Then, it is sent to the rotary vibration screen. After that, it is sent to the tank for the storage. The corn flour size: 60 mesh screen underflow is ≤30%.

(2) Adjusting
Adding water to adjust the flour slurry with DS=28-32%. The metered flour slurry is sent to the PH adjusting tank by the NaON solution and with enzyme adding.

(3) Liquefaction
The qualified the corn flour slurry is sent to the 1st jet cooker and retention tank to get the glucose. Then it is sent to the 2nd jet cooker and retention tank with enzyme adding. After that, it is sent to the liquefaction column for the liquefaction to get required DE value.

(4) Filtration
After liquefaction, take the filter press to filter the coarse protein. The filtrate is sent to the next section. And the filter cake after drying, coarse protein will be got.

(5) Seed production
After liquefaction, the glucose is sent to the seed tank to adjust the DS value and PH, sterilization and cooling, then for the bacterial growing. The strains fermentation is with high temp resistant and high production yield.

(6) Fermentation
After liquefaction, the glucose is sent to the fermentation tank to adjust the DS value and PH, sterilization and cooling to 35ºC. Adding the seed to the fermentation tank by the sterilized piping for the fermentation with sterile air feeding continuously. When the residue glucose is lower than 1g/L, then the fermentation is finished.

(7) Pre-filtration
Besides the citric acid product, there are some impurities, such as mycelium. Filtering the impurities is the 1st to make sure the citric acid quality. The mycelium after washing is sell to the feed production. And the filtrate is thin citric acid for the 1st neutralization.

(8) 2nd filtration
After pre-filtration, there are still some impurities. The 2nd filtration is used for removing the impurities again to make sure the filtrate with clear and transparent. After washing the filter cake, the filtrate is thin citric acid for the 2nd neutralization.

(9) 1st neutralization
Adding CaCO3 to the thin citric acid, get Ca3(C6H5O7)2•4H2O as the sediment. It is filtered by the vacuum filter. The filtrate is as the waste water to the ETP.

(10) 2nd neutralization
The sediment of Ca3(C6H5O7)2•4H2O is adjusted, then reaction with the filtrate after 2nd filtration to get CaH(C6H5O7) •3H2O as the sediment, which is filtered by the vacuum filter. The filtrate is used for the 1st neutralization. The CaH(C6H5O7) •3H2O after adjusting is sent to the next section.

(11) Acidehydrate
The CaH(C6H5O7) •3H2O after adjusting is made reaction with H2SO4 to get citric acid (C6H8O7) and CaSO4. The CaSO4 is filtered out by the belt vacuum filter to get the CaSO4 crystalline for selling to the gypsum production. And the citric acid is sent to the next section.

(12) Decoloring and filtration
Adding active carbon to the citric acid with agitating for the decoloring. Then to the next refinery section.

(13) Ion exchange
The filtration of above section is sent to ion exchangers for removing cation and anion as well as bad odor and soluble impurities to get refined citric acid.

(14) Monohydrate citric acid evaporation
After filtering by the check filter, the citric acid is sent to the evaporator to get high DS value of product.

(15) Monohydrate citric acid crystallization
The qualified CAM after evaporation is sent to the crystallization section for the crystallization. After keeping crystal at proper time, the crystal will be got, and then it is sent to the refinery section.

(16) Anhydrous citric acid crystallization
The CAA after evaporation is sent to the forced circulation evaporating crystallizer to get the crystal.

(17) Separation
After crystallization, both crystallized CAM and CAA are sent to the separator to separate the mother liquid, then get the qualified wet products to next section.

(18) Drying & sieving
The wet product is sent to dryer to get the dried product, then sent to the vibration sieve to get the qualified product.

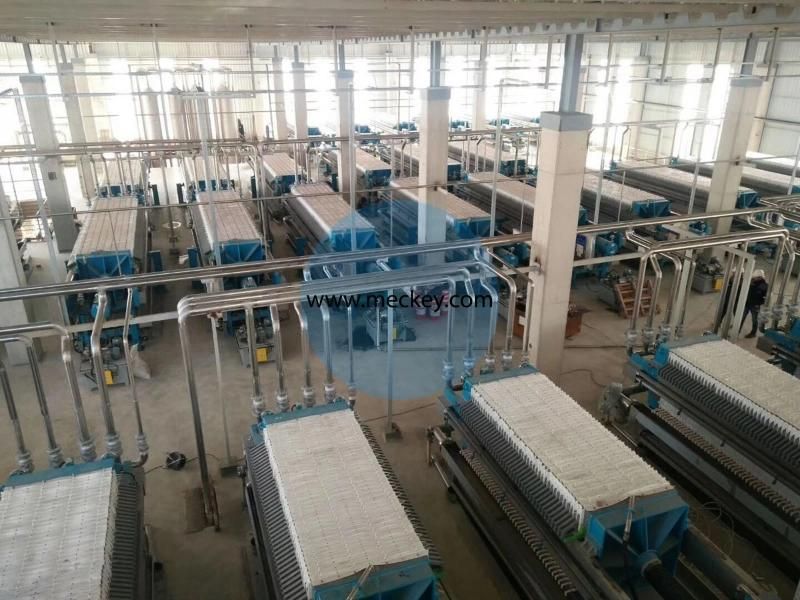

Main Equipment
