China Metal Products Fiber Laser Marking Machine with Rotary Device 50W

• Applicable Material：Metal and Part of Non-Metal
• Cooling System：Air Cooling

=== Base Info ===

• Model NO.：UG-50FM
• Technical Class：Continuous Wave Laser
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Maximum Output Laser Power：50W Raycus
• Wave Length of Laser：1064nm
• Marking Scope：200*200mm
• Laser Sources：Fiber Module
• Laser Head：High Speed Scanning Head
• The Minimum Focus Facula Diameter：20um
• Minimal Character：0.01mm
• Control System：Original Ez CAD Controller with USB Port
• Marking Depth：0.01-5mm( Depends on Different Materials)
• Marking Speed：Within 7000mm,S
• Rotary Axis：Diameter 80mm, Chuck Type
• Transport Package：Plywood Case
• Specification：930*910*1620mm, 180kgs,
• Trademark：UPGOAL
• Origin：China
• HS Code：8456110090
• Production Capacity：300set Per Month
• Package size per unit product：93.00cm * 91.00cm * 183.00cm
• Gross weight per unit product：180.000kg

=== Description ===

Basic Info.

Model NO. UG-50FM Technical Class Continuous Wave Laser Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Maximum Output Laser Power 50W Raycus Wave Length of Laser 1064nm Marking Scope 200*200mm Laser Sources Fiber Module Laser Head High Speed Scanning Head The Minimum Focus Facula Diameter 20um Minimal Character 0.01mm Control System Original Ez CAD Controller with USB Port Marking Depth 0.01-5mm( Depends on Different Materials) Marking Speed Within 7000mm/S Rotary Axis Diameter 80mm, Chuck Type Transport Package Plywood Case Specification 930*910*1620mm, 180kgs, Trademark UPGOAL Origin China HS Code 8456110090 Production Capacity 300set Per Month

Packaging & Delivery

Package size per unit product 93.00cm * 91.00cm * 183.00cm Gross weight per unit product 180.000kg

Product Description

China Metal Products Fiber Laser Marking Machine with Rotary Device 50W

Features

1. Adopting fiber laser to output laser, high electro-optic conversation rate, compact size, good quality velocity of light. The life time of Raycus 50W fiber laser is more than 100,000 hours, if each year working 365 days, each day working 24 hours, then the life time is more than 10 years, are the real maintenance free, saving the later period maintenance cost.

2. Fiber laser marking machine has good facula mode, more thin single line, suitable for hyperfine processing, high system integration, less malfunction, are the real suitable for industrial processing area.

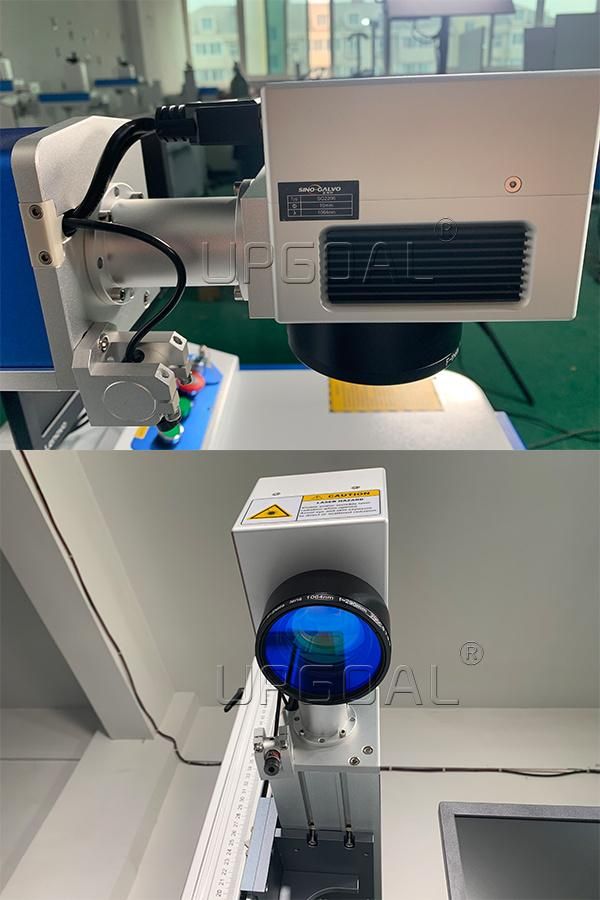

Famous SINO-GALVO 2206 serious galvanometer  &  Wavelength brand, F-THETA scanning length


3. Original EzCad controller, Can for bar code, graph, characters, OR code, ect marking, supporting PLT, DXF, BMP such format, can useSHC, TTF word stock; System can auto encoding, auto marking serial number, batch number, and date, ect.


4. No consumable, low power consumption, whole air cooling, no need water cooling, total machine power less than 1000W.

5. Not influenced by severe environment and bag weather, can continue working with accumulator when power failure.

6. One piece design of control cabinet and marking table, small cover area.


7. High perpendicularity of lifting device and marking table, suitable for small workpiece fine marking.

8. Double red dot positioning , no need meausre the material with focus rulter, conveineint for operation.

9. Marked graph and characters is permanent , will not regression  due to friction.

10. With rotary device for cylinder marking


11. Optional Lenovo English windows 7/10 desktop computer

Technical Parameters

Laser type	Fiber laser
Maximum output laser power	50WRaycus, China, QB series
Wave length of laser	1064nm
Marking scope	200*200mm
Laser sources	Fiber module
Laser Head	High speed scanning head
The minimum focus facula diameter	20μm
Minimal character	0.01mm
Positioning	Double red dot
Vertical shaft lifting height	550mm
Control system	Original EzCad controller with USB port( 3 axis)
Marking depth	0.01-5mm( depends on different materials)
Marking line width	0.01-0.1mm
Marking speed	≤7000mm/s
Laser repetition frequency	20kHz~80kHz
Galvanometer	High speed digital galvanometer (SINO-GALVO, SG2206)
Filed lens	Scanning lens( Wavelength brand, F-THETA)
Cooling method	Air Cooling
Power supply	AC 220V/110V, 50/60Hz, single phase
Support format	PLT, BMP, DXF, JPG, TIF, AI etc
Process Material	All kinds of metal and part of non-metal materials( opque acrylic/plastic)
Certificate	CE/FDA

Applications

Electronic and communications products, integrated circuit chip, computer parts and electrical appliance,all kinds of precision component,  hardware tool, instrument and meter, aerospace and astronautics, jewelry, horologe, gift, office supply, trademark signs, sanitary ware, kitchen ware, plastic product, metal ornament, fastener, eyeglasses frame, , sanitary ware fittings, tableware, food, beverage and alcohol & tobacco,etc all kinds of area graph and characters's, marking, mass production, marking clear and beautiful, never disappear.


Reference Working Videos

https://youtu.be/Gi1hDvGqGA0


Accessories & packing

Factory shows

 For more information, just feel free to contact us!
