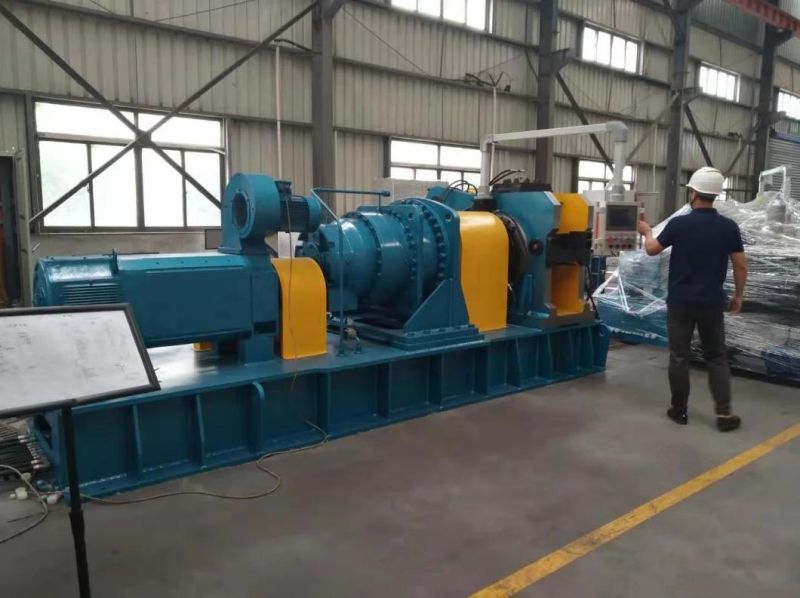

Mfcce 350 400 550 Copper Continuous Extrusion Machine

=== Base Info ===

=== Description ===
ItemParameter for CopperParameter for AluminumDiameter of Extrusion WheelΦ350mmΦ350mmSpeed Range0-12.5r/min0-20r/minMain Motor Power160kw200kwFeeding StockΦ12.5mm ; Φ16mmΦ9.5mm ; Φ12mm ; Φ15mmProduct Section Area20-1000mm²10-600mm²Max. width ( diameter )bus bar 100mm ;
rod Φ36mmbus bar 60mm;

pipe Φ35mmAverage Productivity850kg/h300kg/h

Advantages Compare to Traditional Process:
1. Less process, low investment on equipment
One time formed by extrusion, no need of annealing, heating, acid cleaning, trimming, realize simple and clean production.

2. Lower power consumption, no need of preheat
During Extrusion, sufficient heat will be generated by press and friction force on the feeding rod. So no need of feeding rod preheat, Thus product unit power consumption is much lower.

3. Less scrap, high rate of final product
Free of process residues such as remainder, side-cut makes high material utilization ratio, the ratio of finished product is more than 90%

4. High quality, better conductivity
Continuous extrusion is plastic deformation of the feeding rod under high temperature, completely eliminating the internal defects in the material itself, the use of high-quality extrusion dies, extrusion at high temperature to ensure that products are the best forming accuracy and good cross-section shape. The extrusion process to increase the density of the material, the grain is uniform and compact, so that the resistivity decreases and the conductivity is improved, the product quality is more perfect.

5. Continuous and long length production
Apply Up cast or continuous cast coil rod as raw material, can produce big length product while traditional process usually less than 30-50m. Continuous extrusion product is coil type, easy for transportation.

6. Lower labor cost, high automation
The whole production line realizes the computer automation control; only 2 operators are needed for production. For different sizes, only mould replaced, easy and fast. It is suitable to small quantity and diverse sizes production.
