PE Polyethylene Heating Constriction Film Blowing Machine Set

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ-50/FM600 SJ-55/FM800 SJ-60/FM1000 SJ-65/FM1200 Automation Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Ldoe Shrink Shrink Film Packing Film Shrink Machine Transport Package Stretch Film or Wooden Case Specification CE, ISO9001 certificate Trademark Hoin Origin Ruian, Zhejiang, China HS Code 84773010 Production Capacity 50 Set/Month

Product Description

Characteristics:
The cylinder and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making operation easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

USE:
It is used to blowing the various PE thermal shrink-ink membranes which are applied extensively to food, medicine, beer bottle, material bottle, box, case, cloth reel, floor, glass, all sizes of trays, pottery, issue, etc.

Model	SJ-50FM600	SJ-55FM800	SJ-60FM1000	SJ-65FM1200
Screw Diameter	50mm	55mm	60mm	65mm
Screw Ratio	L/D28:1	L/D28:1	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	11Kw	15Kw	18.5Kw	22Kw
Max. Extrusion output	35kg /h	50kg /h	50kg /h	80kg /h
Max. Folding Width of Film	600mm	800mm	1000mm	1200mm
Single-sided Thickness of Film	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm
Total Power	22Kw	26Kw	30Kw	36Kw
Weight of Machine	2000kg	2300kg	2800kg	3300kg
Overall Dimensions(L×W×H)	400×1800× 3600mm	4200×2000× 4000mm	4600×2300× 4200mm	4800×2500× 4500mm

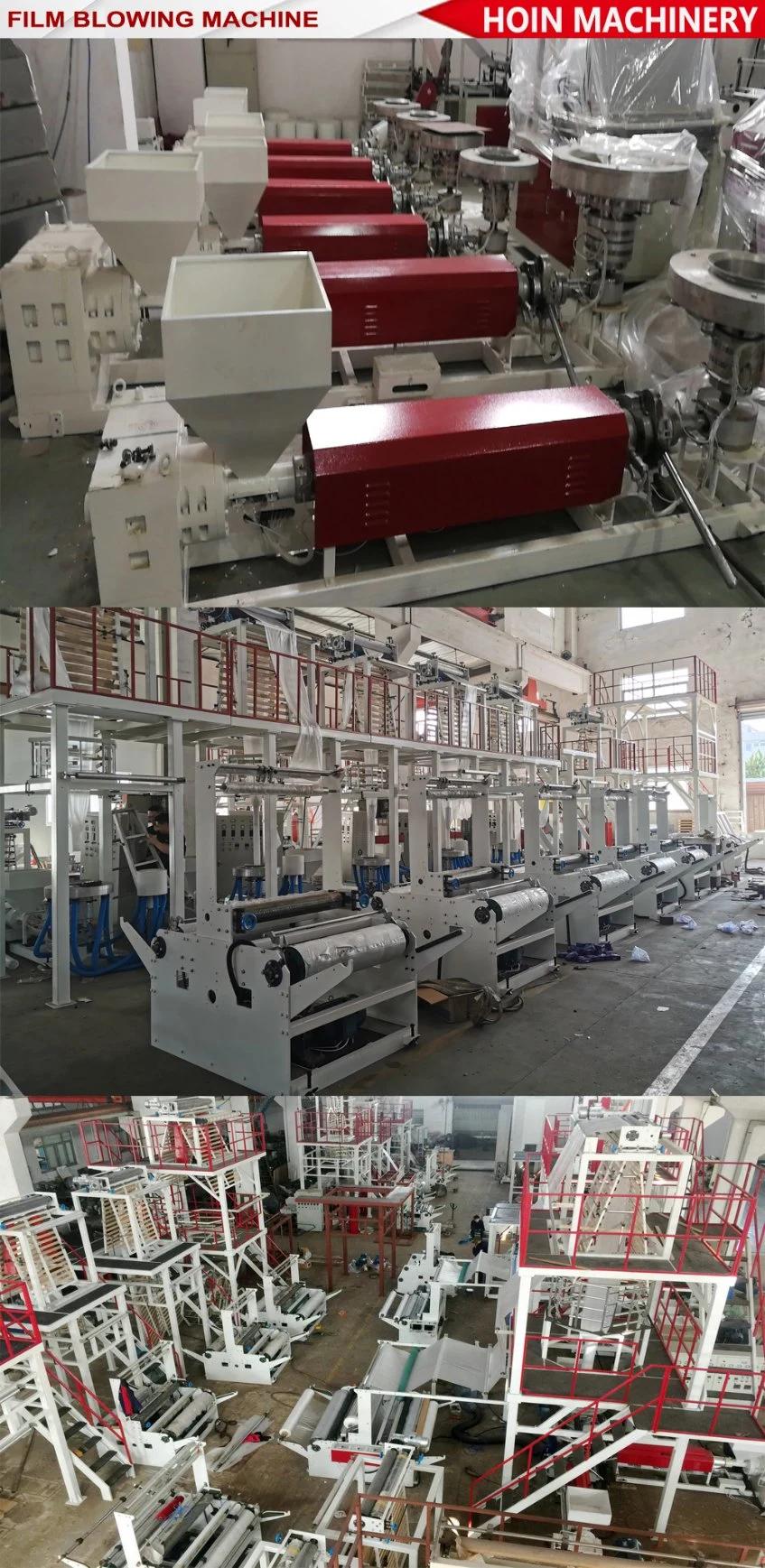

Machine Pictures for Reference:

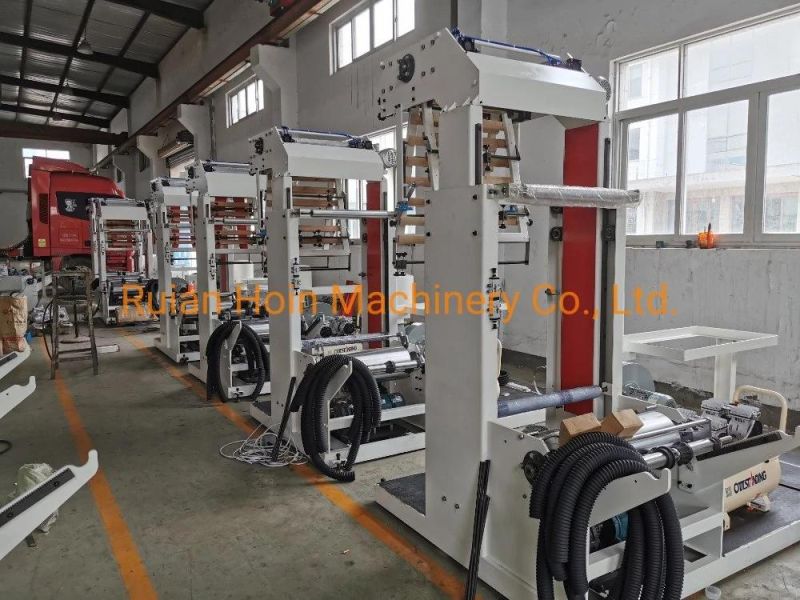

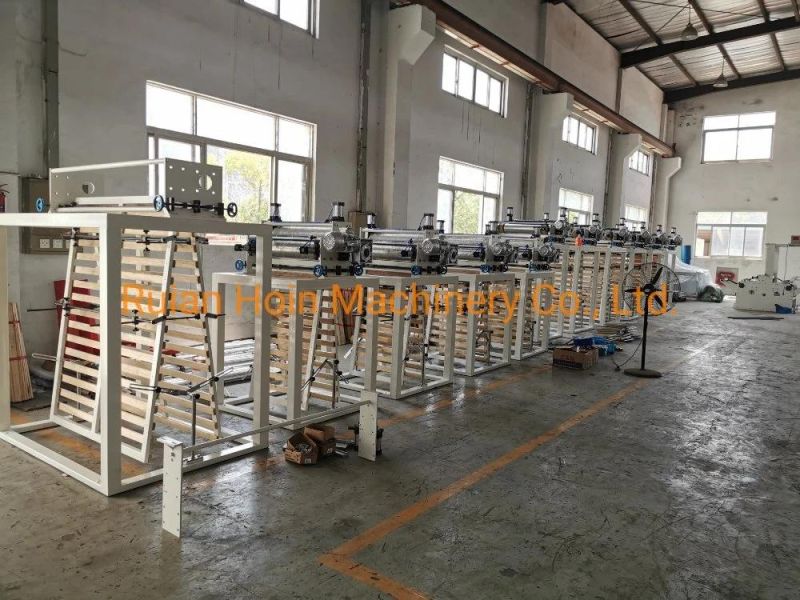

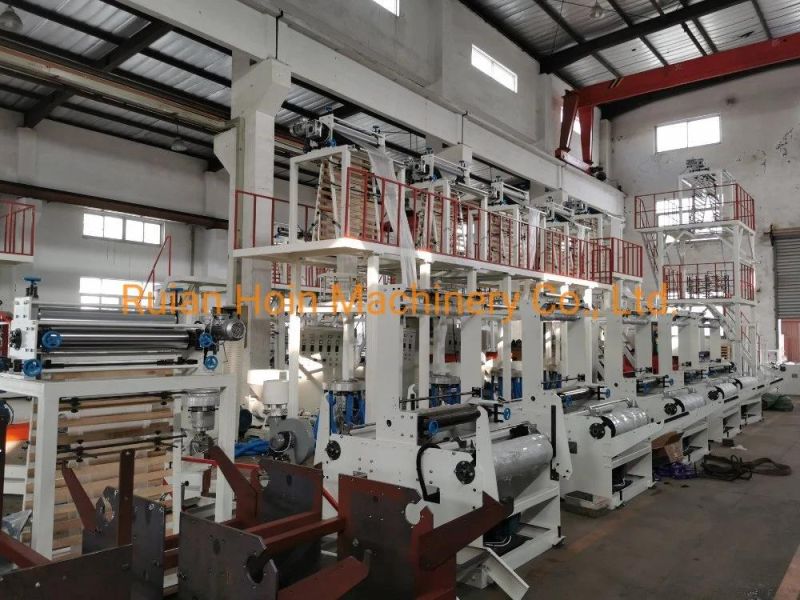

Workshop of HOIN

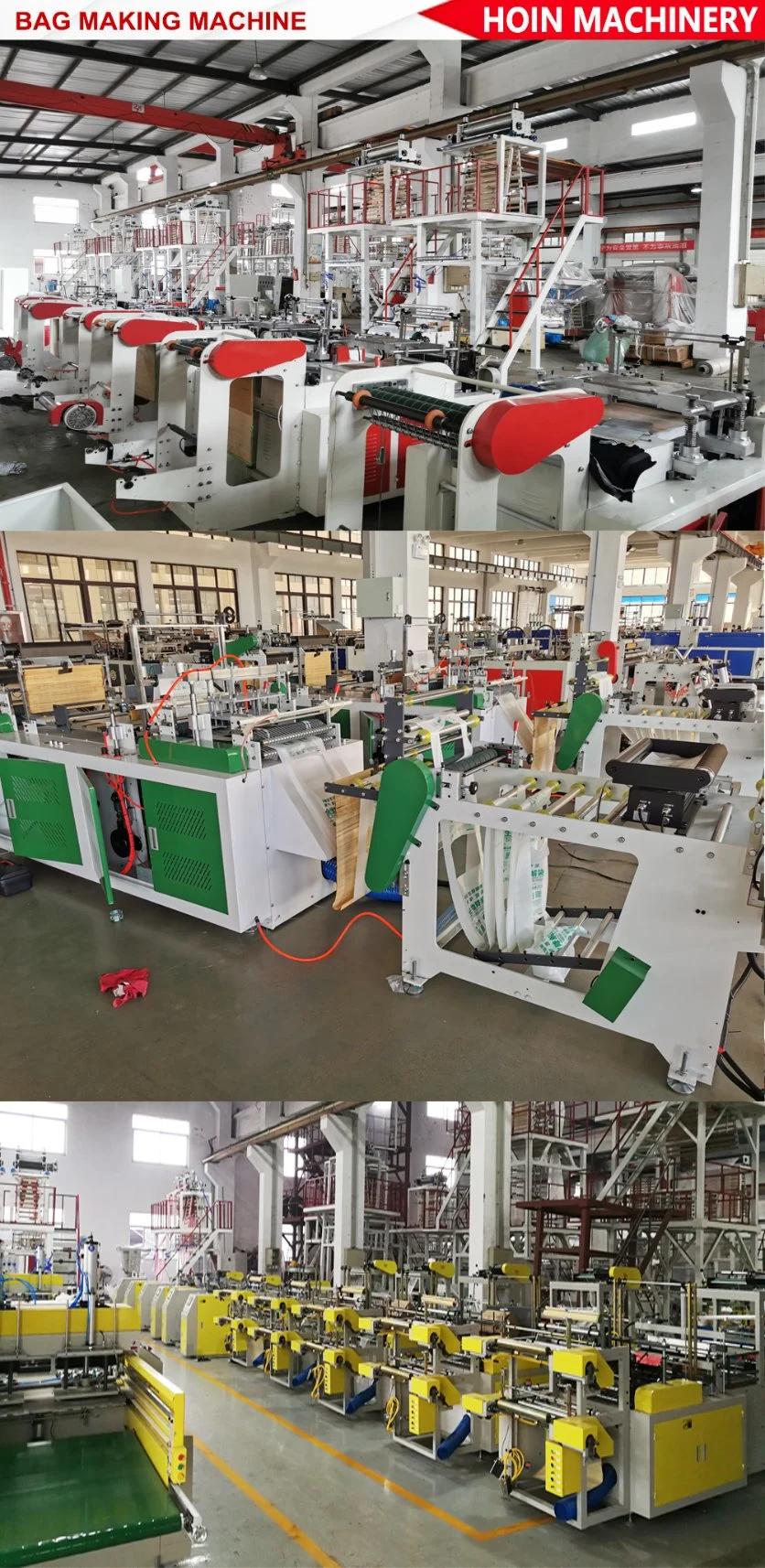

More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
