HDPE-LDPE Dual-Purpose Model a Film Blowing Machine

=== Base Info ===

=== Description ===

Basic Info.

Model NO. SJ-45/FM650, SJ-50/FM850 Automation Non-Automatic Computerized Computerized Machine Weight 4T Certification CE, ISO9001:2008 Mini Type HDPE PE Film Poly Transport Package Wooden Cases Specification CE, ISO9001 certificate Trademark Hoin Origin Ruian, Zhejiang, China HS Code 84773010 Production Capacity 50 Set/Month

Product Description

Characteristics:
The cylinders and the screw stems of model SJ-45-50 extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. FM-600 auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements of different materials, and is fitted with a plug-in plate mechanism for making vest bag. The double-rolling and double-cutting coiling unit adopts torque motor to keep proper tension and make even and roll-changing easy.

USE:
It is used for blowing the various plastic film of low density polyethylene(LDPE), high density polyethylene(HDPE) and linear low density polyethylene (LLDPE) etc, Which are widely used for packing food, fruit, garments, textile, barbate bag and vest bag other civil and industrial products, etc and for vest bag.

Model	SJ-45/FM650	SJ-50/FM850
Screw Diameter	45mm	50mm
Screw Ratio	L/D28:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min
Power of Main Motor	11KW	15KW
Max. Extrusion output	35kg /h	50kg /h
Max. Folding Width of Film	600mm	800mm
Single-sided Thickness of Film	0.006 -0.10mm	0.006 -0.10mm
Lifting Range of Auxiliary Machine	700mm	700mm
Total Power	22Kw	28Kw
Weight of Machine	2200kg	2600kg
Overall Dimensions( L × W × H )	4000×2000× 2800mm	4600×2300× 3800mm

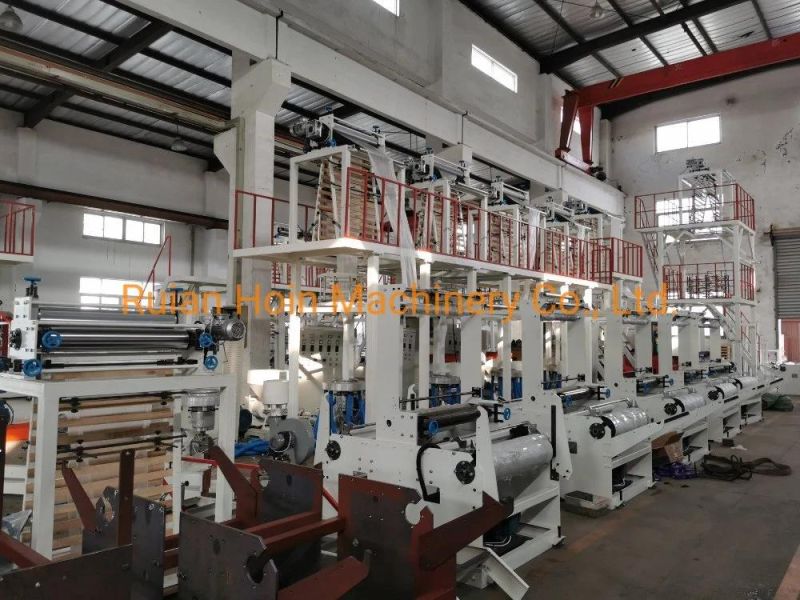

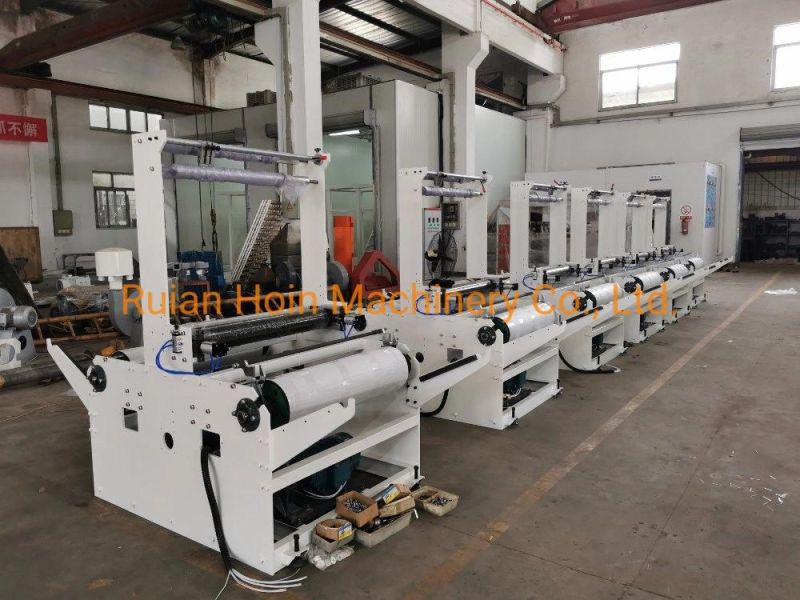

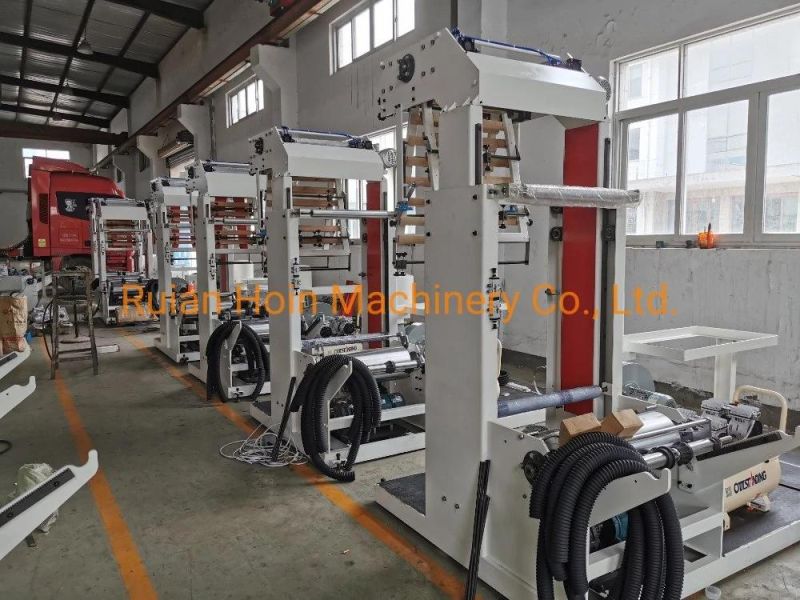

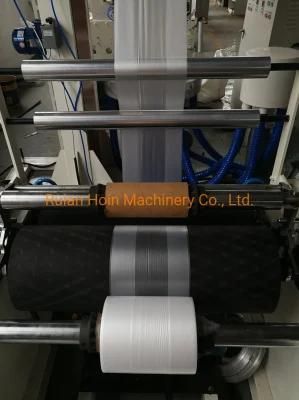

Machine Pictures for Reference:

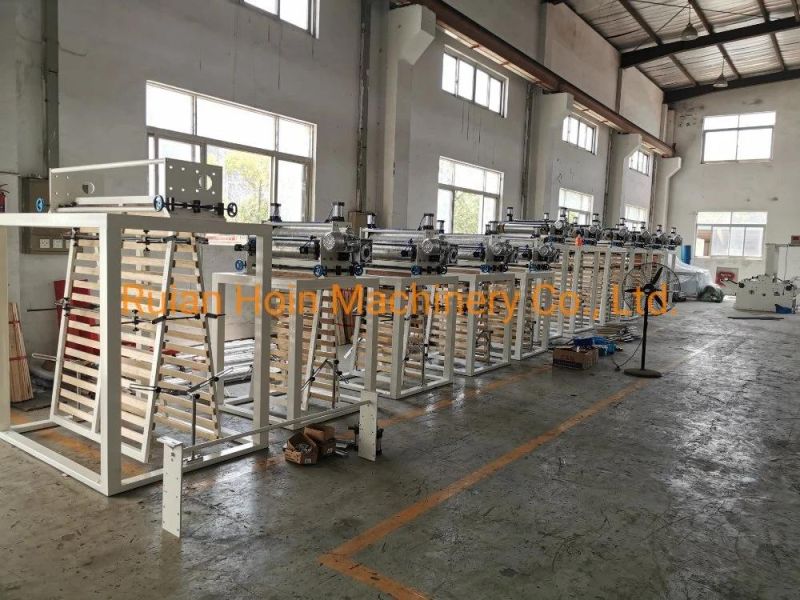

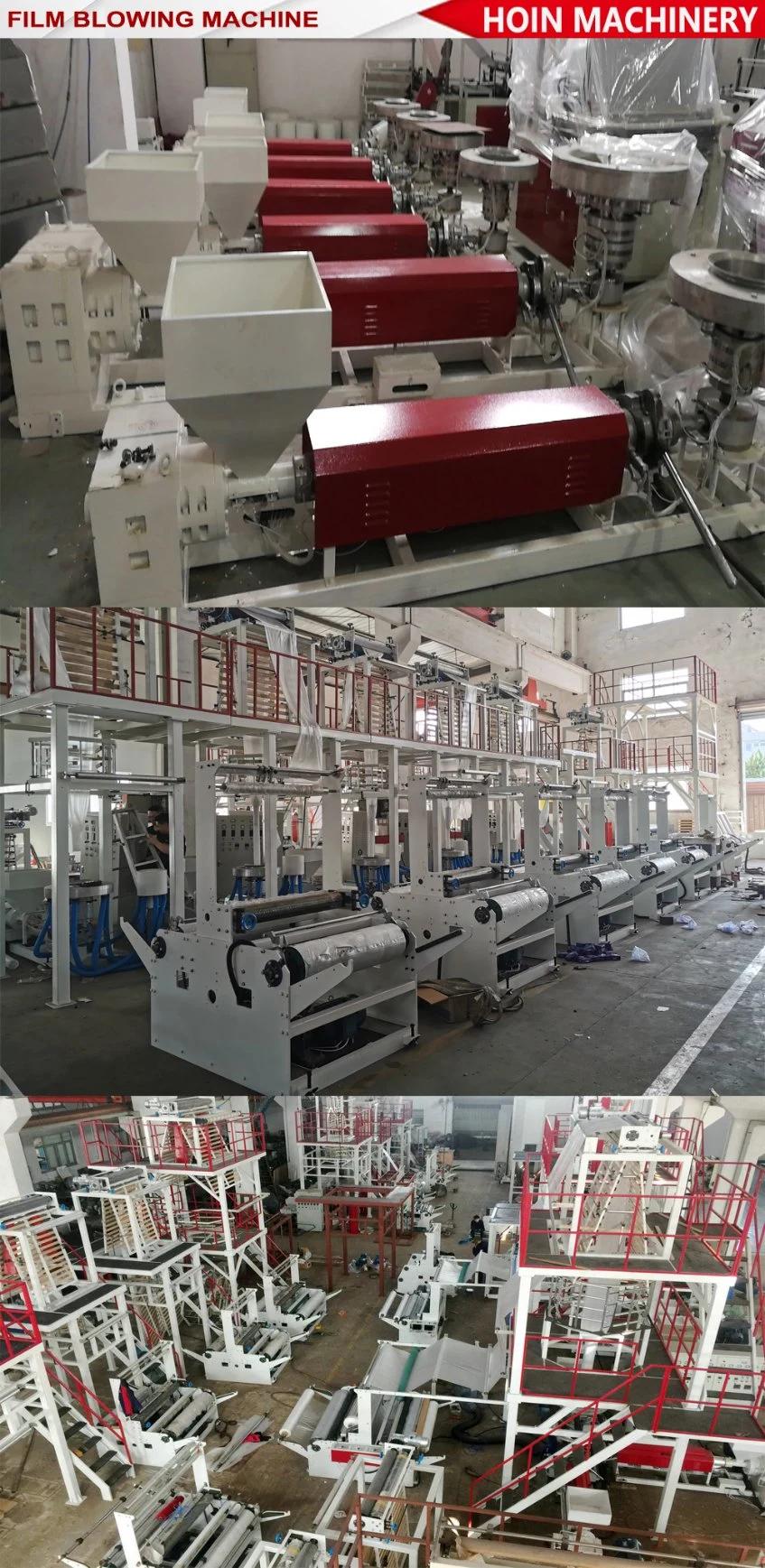

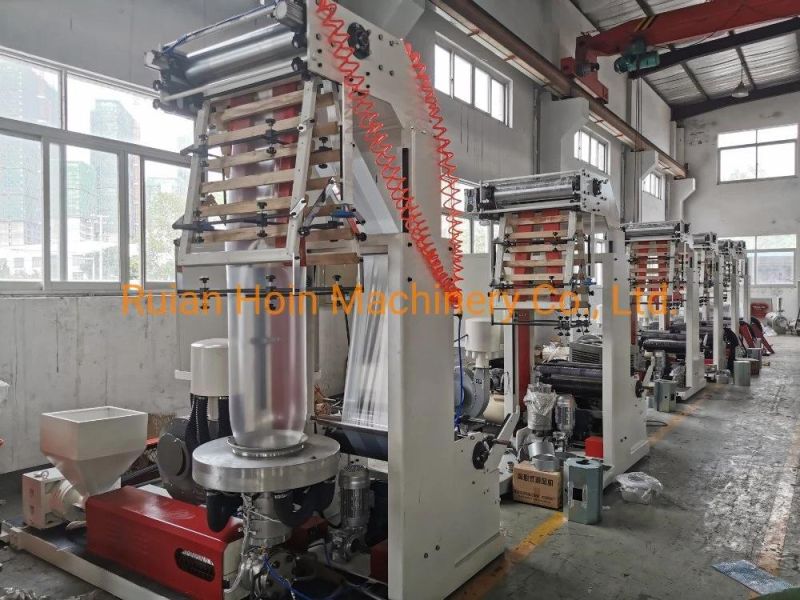

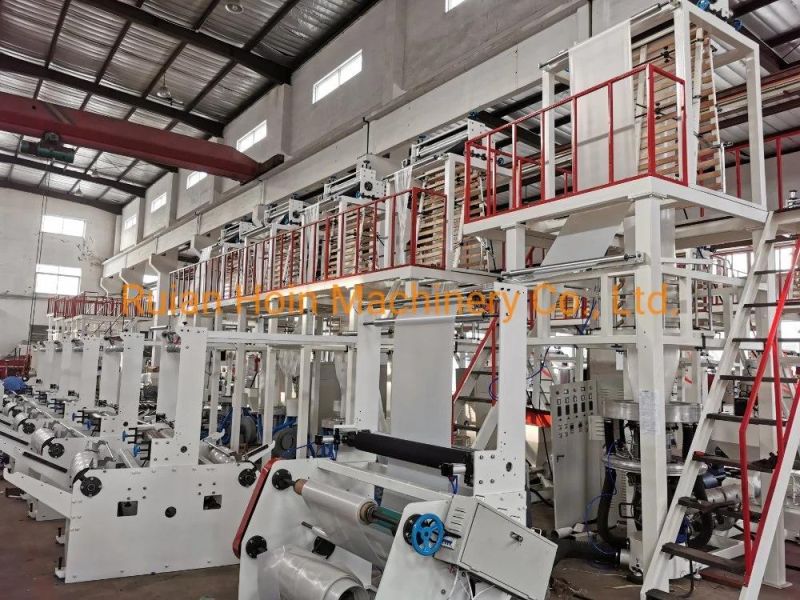

Workshop of HOIN

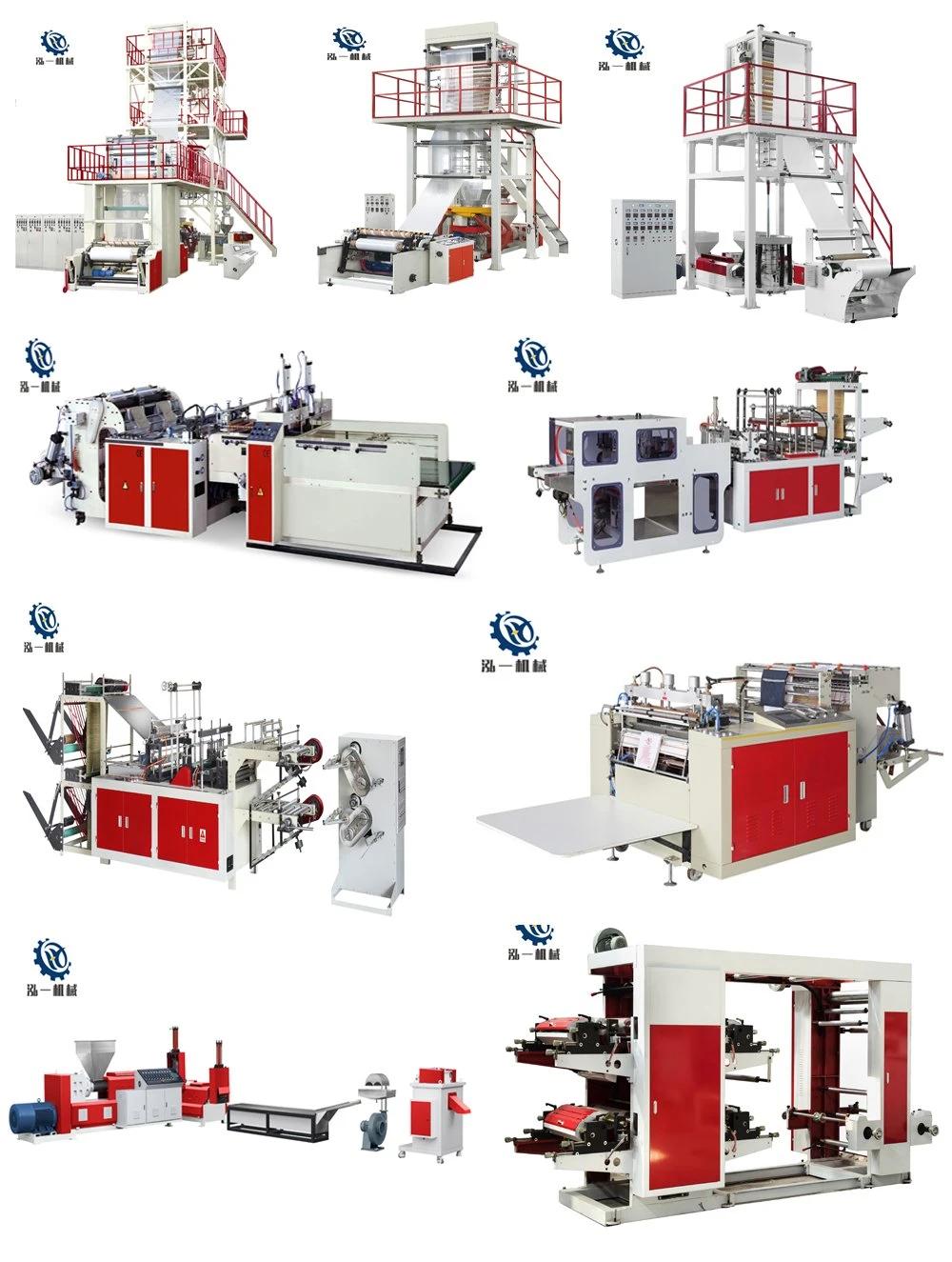

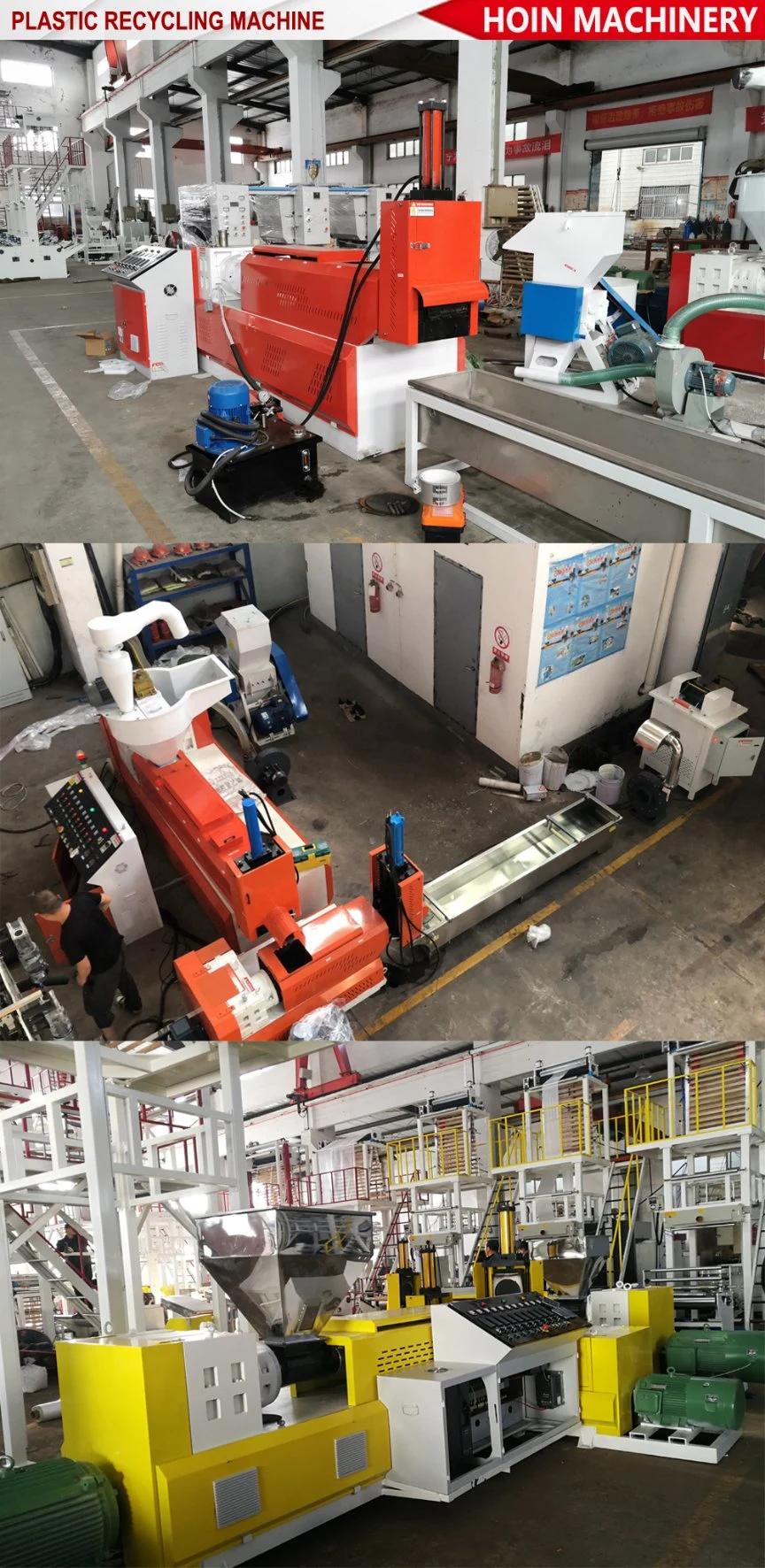

More Products Optional:
After service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!
