Candy Depositing Production Line

• Certification：CE
• Power Source：Electric
• Process：Syrup Pouring
• Automatic Grade：Automatic
• Application：Candy
• Customized：Customized

=== Base Info ===

• Model NO.：CANDY DEPOSITING PRODUCTION LINE
• Capacity：150-600kg,H
• Material：Stainless Steel
• Transport Package：with Wooden Case
• Specification：16000x2000x2500mm
• Trademark：YOULU
• Origin：China
• HS Code：8438900000
• Production Capacity：50sets,Year

=== Description ===

Basic Info.

Model NO. CANDY DEPOSITING PRODUCTION LINE Capacity 150-600kg/H Material Stainless Steel Transport Package with Wooden Case Specification 16000x2000x2500mm Trademark YOULU Origin China HS Code 8438900000 Production Capacity 50sets/Year

Product Description

Application

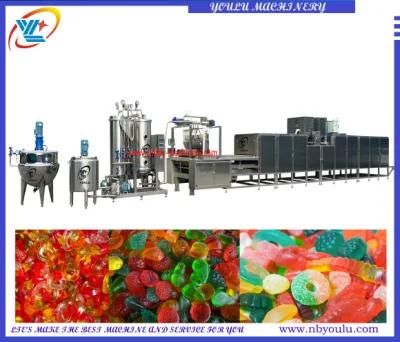

The machine is the most advanced equipment for producing jelly candy . It can be produce single color, two color jelly candy and jelly candy with center filling .The machine has high quality ,high output and it can be produce high quality jelly candy . The machine consists of dissolving tank, gear pump,storage tank, vacuum cooker, Depositing machine with cooling tunnel .The finished candy make from this machine have transparent and smooth surface and good taste.
The machine with servo driver and control the every action by Motion Intelligent Control card to Achieve precise depositing, high performance


Technical Details

Model	YL-JCM-I	YL-JCM-II	YL-JCM-V	YL-JCM-V
Capacity	150kg/h	300kg/h	450kg/h	600kg/h
Power	30kw	45kw	60kw	75kw
Air Consumption	0.5m3/min	0.5m3/min	0.5m3/min	0.5m3/min
Steam Consumption	450kg/h	450kg/h	450kg/h	450kg/h
Steam Pressure	P<0.7Mpa	P<0.7Mpa	P<0.7Mpa	P<0.7Mpa
Water Consumption	2200L/h	2200L/h	2200L/h	2200L/h
Humidity	55%	55%	55%	55%
Dimension	1600X1500X2700mm	1600X2000X2700mm	1600X2360X2700mm	1600X2720X2700mm
Weight	6000kg	7500kg	8500kg	9500kg
