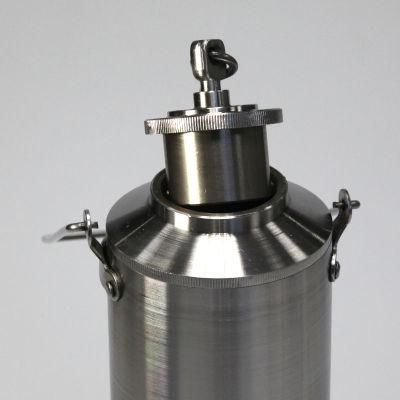

Good High Viscosity Crude and Heavy Oil Weighted Sampling Cans

• Usage：Crude and Heavy Oil Sampling Cans in Tank
• Certification：ISO
• Eco-Friendly：Eco-Friendly
• Customized：Customized
• Material：Stainless Steel, Brass
• Type：Sampling Cans

=== Base Info ===

• Specification：330ml, 500ml, 1000ml
• Transport Package：According to Orders, Carton Box
• HS Code for Ss：7326909000
• Feature 3：No Welding
• Feature 2：Metal Controllable Stopper
• Feature 1：Bottom Weighted Unit
• Model NO.：BQZ
• Trademark：BRT
• Origin：China
• HS Code：7419999900
• Production Capacity：1000 PCS, Month

=== Description ===
Capacity (mm)Weight for SS (Kg)Weight for Brass (Kg)Size (mm)330 ml1.171.24560*187500 ml1.711.6970*1201000 ml 2.532.7275*310
Feature:
1. Suitable for collecting high viscosity oil sample in tank
2. Detachable and Easy to clean,No welding, Catch Designated-Position Sample
3. Sampling at upper port, Bottom Weighted Unit, Metal Controllable Stopper



Sampling Process:
1. Before sampling, operator must connect the sampler with ground by anti-static sampling rope to eliminate static electricity.Then laying sampler down slowly .
2. Slowing down until to the designated sample depth in the sampling medium tank. According to the length of the anti-static rope, the operator can judge whether to arrive at the sampling depth. While, Our sampling rope can make read mark for you.
3. Now,operator should jerk anti-static rope upward quickly to make the metal stopper opened. At this time the sampler as shown in figure is full.
4. Pulling up the Heavy Oil Sampling Cans, transfer sample into glass bottles, then operator sent it to analysis room.Sampling process is finished.



Keywords:
Crude and Fuel Oil Sampling Thief, Bottom Weighted Heavy Oil Sampler, High Viscosity Representative Sample Container, Fixed-Point Sampling Beaker

Introduction:
       This series of BQ() Products are conforming to GB/T 4756<Sampling Method for Liquid Petroleum Product>, GB/T 6680<General Practice for Sampling Liquid Chemicals>, ASTM D4057 <Standard Practice for Manual Sampling of Petroleum and Petroleum products> and ISO 3170<Petroleum Liquids-Manual Sampling>.
       At room temperature (safe oil product temperature), It is suitable for sampling non-volatile non-toxic and harmless liquid petroleum products at locations such as oil tank, tank car, oil tank car, oil tanker and process pipeline. It is easy to use, safe and durable, No change for oil component.
       The liquid petroleum sampling bottle series can be sampled at the bottom, lower, middle, upper, surface, spots, all-levels, composite sample etc. It meets different sampling requires for users.



Material to Choose:
1. The 304 stainless steel material has remarkable corrosion and oxidation resistance, It has a exquisite and durable appearance. Food grade material is suitable for food oil or other petroleum products has no corrosion to SS.
2. The brass sample bottle is not easy to spark, and it is suitable for oil sampling. It not only ensures the personal safety of the operators, but also eliminates the potential safety hazard caused by the spark.

Technology, All Samplers Have No welding:
This series of products adopt stamping and stretching forming and metal tight fitting technology to overcome the problem that welding sampler is easy to leakage oil.

Material: Stainless Steel, Brass
Specifications: 330ml, 500ml, 1000ml
