Transport Protective Inflatable Air Dunnage Bag

Jiangxi JahooPak Co., Ltd. / 2022-06-09

Scope of Application：Electronic Products
Color：Brown

=== Base Info ===

Paper Dunnage Bag Color：Brown
Dunnage Bag Level：Level 1
Jahoopak Valve Choice：Proair Valve or Traditional Valve
Air Dunnage Bag Width Range：40cm-120cm
Container Dunnage Bag Length Range：50-330cm
Dunnage Bag Inflation Pressure：2.6kg
Dunnage Bag Working Pressure：Level 1: 2.9psi,0.207bar
Paper Dunnage Bag Inner Mateials：PA Film
Paper Dunnage Bag Outside Materials：150g Paper & PP Woven Complex
Dunnage Bag Packing：Packing in Export Carton with Pallet
Dunnage Air Bag Printing：OEM Acceptable
Dunnage Bag MOQ：1 PCS
Layer：Multi Layer
Model NO.：80x160cm
Transport Package：Packing in Carton with Pallet
Specification：80x160cm
Trademark：JahooPak
Origin：China
HS Code：4819400000
Production Capacity：80000 PCS Per Day
Package size per unit product：60.00cm * 50.00cm * 3.00cm
Gross weight per unit product：2.000kg

=== Description ===
Product Name Kraft Paper Laminated Dunnage BagOutside Materials150g Kraft Paper Laminated PP WovenInner MaterialsPA (Polyamide, Nylon);
Enhance high barrier performance;Work Pressure0.2-0.8 Bar / 3-10 PSIBursting InspectionAccording AAR StandardDunnage Bag Width50-120cmDunnage Bag Length50-300cmDunnage Bag Valve ChoiceFast Inflate Valve or Traditional ValveValve Size10mm or 30mm two kinds

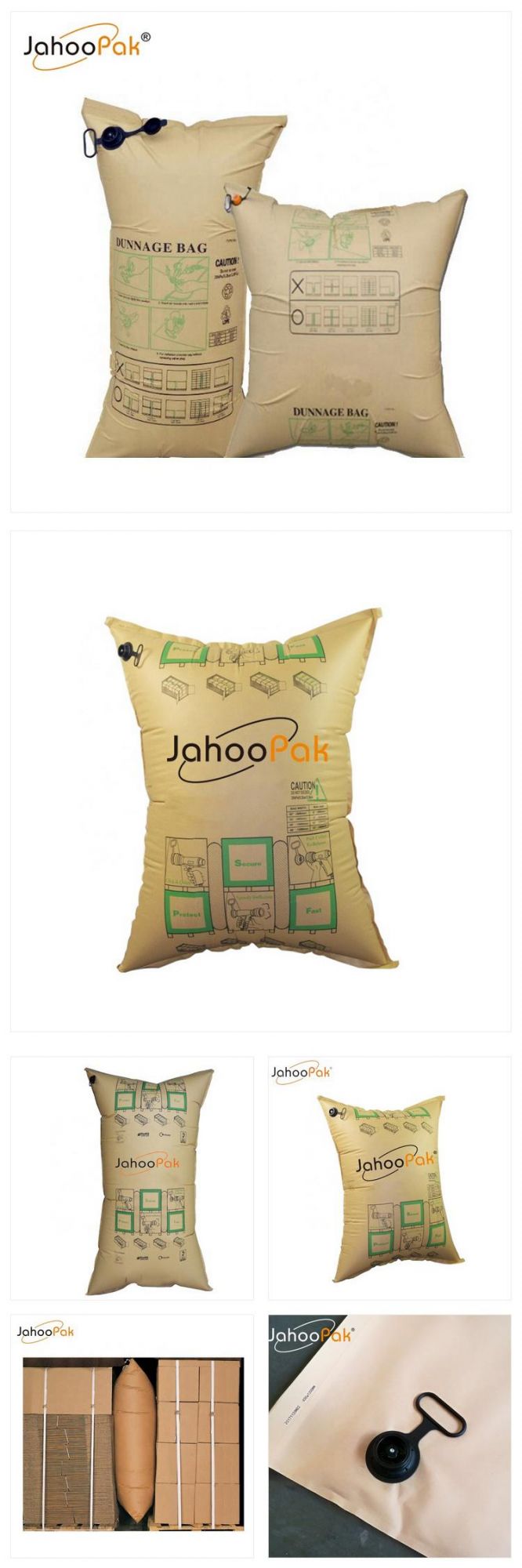

Transport Protective Inflatable Air Dunnage Bag

AAR approved JahooPak dunnage bags incorporate the latest technology and features to help you secure your loads easily and effectively.

JahooPak dunnage bags are safe and efficient while providing high quality cargo securement.

AAR Standard Test Result

Width mm	Length mm	Using Space cm	Using Highly cm	_{Max Bearing Pressure(Cosswise) USA}	Max Bearing Pressure(Lengthways) USA	Max Bearing Pressure(Cosswise) EU
500	1000	25-30	90	8PSI/N	17PSI/N	0.5512Bar/n
500	1200	25-30	110	8PSI/N	17PSI/N	0.5512Bar/n
600	1200	30-35	110	8PSI/N	17PSI/N	0.5512Bar/n
800	1200	35-40	110	8PSI/N	17PSI/N	0.5512Bar/n
800	1600	35-40	150	8PSI/N	17PSI/N	0.5512Bar/n
900	900	40-45	80	8PSI/N	17PSI/N	0.5512Bar/n
900	1200	40-45	110	8PSI/N	17PSI/N	0.5512Bar/n
900	1800	40-45	170	8PSI/N	17PSI/N	0.5512Bar/n
1000	1000	40-45	90	8PSI/N	17PSI/N	0.5512Bar/n
1000	1200	40-45	110	8PSI/N	17PSI/N	0.5512Bar/n
1000	1600	40-45	150	8PSI/N	17PSI/N	0.5512Bar/n
1000	1800	40-45	170	8PSI/N	17PSI/N	0.5512Bar/n
1000	2000	40-45	190	8PSI/N	17PSI/N	0.5512Bar/n
1000	2100	40-45	200	8PSI/N	17PSI/N	0.5512Bar/n
1000	2200	40-45	210	8PSI/N	17PSI/N	0.5512Bar/n
1000	2400	40-45	230	8PSI/N	17PSI/N	0.5512Bar/n
1200	1200	50-60	110	8PSI/N	17PSI/N	0.5512Bar/n
1200	1800	50-60	170	8PSI/N	17PSI/N	0.5512Bar/n
1200	2000	50-60	190	8PSI/N	17PSI/N	0.5512Bar/n
1200	2100	50-60	200	8PSI/N	17PSI/N	0.5512Bar/n
1200	2200	60-70	210	8PSI/N	17PSI/N	0.5512Bar/n
1200	2400	60-70	230	8PSI/N	17PSI/N	0.5512Bar/n
