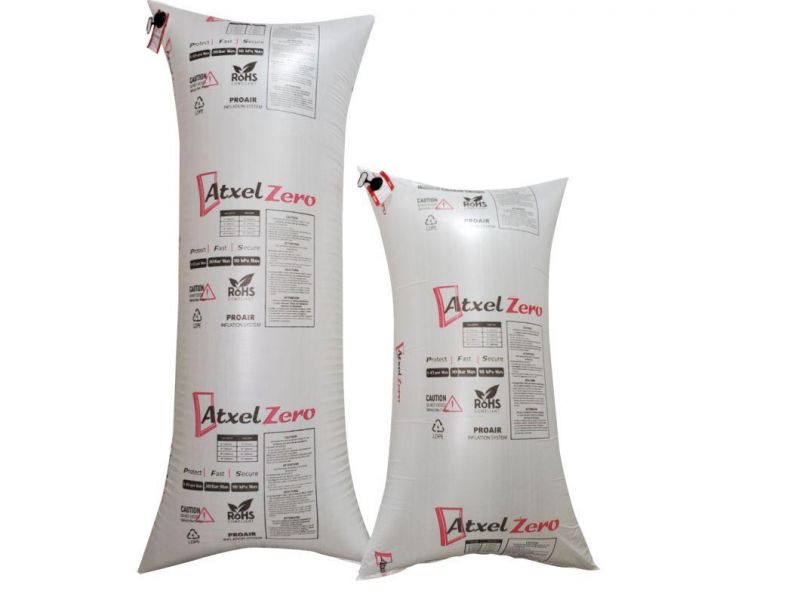

Dunnage Air Bags Used to Cargo Loads in Trucks

• Layer：Multi Layer
• Color：White
• Scope of Application：Contaniner,Tracking,Packaging
• Material：Kraft Paper
• Transport Package：Pallets
• Specification：1000mm*1800mm

=== Base Info ===

• HS Code：4819400000
• Origin：China
• Trademark：ATXEL

=== Description ===

Basic Info.

Trademark ATXEL Origin China HS Code 4819400000

Product Description

Brief Introduction


A professional R&D team and a young and positive sales team, we aim to provide perfect products to customers worldwide, and we provide all life after sale service.

We can provide both products and machines.

Packaging products: dunnage bag, slip sheet, edgeboard, honeycomb, corrugated core and board, grip sheet, paper pallet, heavy duty cartons

Pacakging machinery: dunnage bag machine, slip sheet machine, edgeboard machine, honeycomb machines, corrugated machine, pallet leg machine, slitter and rewinder, wrap around edge protector

PRODUCT NAME

DUNNAGE BAG/ CARGO AIR BAG/ INFLATABLE AIR BAG/ CARGO SECURING DUNNAG BAG
Brown Kraft Paper Inflatable Dunnage Bag For Transport



Loading Tips:
Clean the floor of the trailer and inspect floors, walls and roof for nails or holes before loading.  Remove or hammer down nails or other sharps.
Load skids tight from front to back and from side to side.  Tight means touching.
Use side shifters on the fork lift to position freight in firm contact with the sidewall or other skid of freight.  Also to control void size.
Alternate the void from side to side to balance the load.
Put tallest freight in the nose at the first load position and bag it.
Put the most fragile freight towards the nose for the softest ride.
Use additional bags when necessary to stabilize unsteady skids.
Always bag when dropping from two high to one high loading.
Always bag the final load position.
Techniques for Easy Installation:
Insert inflation tool into valve.
Visually locate the best void to install the bag while walking in.
Give the bag a small puff of air to give it some stiffness and bulk.
Insert bag all the way into the void before inflating. Valve should be at top if possible. One hand should be on the inflation tool and one hand should be positioning the bag.
If bagging a high load position, you may tape the bag to the top of one unit before loading the other side.
When inflating, watch the freight not the bag. 1 - 3 lbs psi recommended. When the freight is tight against the wall, disengage the inflator. Don't worry, the bag will not over-inflate!  Installation is complete when the inflator blows back.
After inflation, screw on over-cap.
Deflation (Patented walk-away feature):
Remove over-cap, push valve in and twist one quarter turn clockwise.
You can walk-away while bag deflates!
Remove bag, inspect for damage and set aside for reuse.

OUR PRODUCTION RANGE

SIZE    (cm)		MATERIAL	(cm)	(Mpa)
050*100		PE/PP+KRAFT	25	0.06	≤3.5T
050*150		PE/PP+KRAFT	25	0.06	≤3.5T
060*100		PE/PP+KRAFT	28	0.06	≤3.5T
060*120		PE/PP+KRAFT	28	0.06	≤4.5T
060*150		PE/PP+KRAFT	28	0.06	≤4.5T
080*120		PE/PP+KRAFT	38	0.06	≤4.5T
080*160		PE/PP+KRAFT	38	0.06	≤4.5T
080*180		PE/PP+KRAFT	38	0.06	≤4.5T
090*120		PE/PP+KRAFT	45	0.06	≤4.5T
090*180		PE/PP+KRAFT	45	0.06	≤4.5T
100*120		PE/PP+KRAFT	50	0.06	≤4.5T
100*160		PE/PP+KRAFT	50	0.06	≤4.5T
100*180		PE/PP+KRAFT	50	0.06	≤4.8T
100*200		PE/PP+KRAFT	50	0.06	≤4.8T
100*220		PE/PP+KRAFT	50	0.06	≤4.8T
100*240		PE/PP+KRAFT	50	0.06	≤4.8T
120*120		PE/PP+KRAFT	60	0.06	≤4.8T
120*180		PE/PP+KRAFT	60	0.06	≤4.8T
120*200		PE/PP+KRAFT	60	0.06	≤4.8T
120*220		PE/PP+KRAFT	60	0.06	≤4.8T
120*240		PE/PP+KRAFT	60	0.06	≤4.8T
