Indoor/ Outdoor 5mm Full Color Video Screen Panel LED Display for Video Advertising

• Tube Chip Color：Full Color
• Display Function：Video Display
• Pixel Pitch：5mm
• Pixel Configuration：1R,1G,1B
• Pixel Density：40,000 dots , m²
• Scanning Mode：1,16 Scan

=== Base Info ===

• Model NO.：SY-P5-8S
• System Operating Platform：Win98,2000,Nt,XP
• Display Type：LED Video Display
• Application：Stage Performance
• IP Rating：IP40
• Certification：CE, RoHS, UL, CCC, FCC
• Cabinet Size：640mm X 640mm
• Transport Package：Flight Case
• Specification：CE, RoHS, FCC
• Trademark：SENY
• Origin：Shenzhen, China.
• HS Code：8528591090
• Production Capacity：5000sqm,Month

=== Description ===
Indoor/ Outdoor 5MM Full Color Video Screen Panel LED Display For Video AdvertisingSNItemTechnical ParametersLED Parameters1Item NameLED TypeBrightnessWave LengthH/V  Visual Angle2Red LEDSMD3528120-140mcd620-625nm140º/120º3Green LEDSMD3528360-435mcd520-525nm140º/120º4Blue LEDSMD352880-100mcd470-475nm140º/120ºModule Specification1Pixel Pitch5mm2Pixel Configuration1R1G1B3Module Resolution64 x 32 pixels4Module Pixles2048 pixels5Module Size320mm X 160mmCabinet Specification1Cabinet Size(W X H X D)640mm x 640mm x 80mm2Cabinet Resolution(dot)128 x 128 pixels3Module Quanity (pcs)8pcs4Cabinet Pixels16384 pixels5Pixel Density40000 pixels/m26Cabinet MaterialsDie Casting Aluminum Cabinet for rental purpose7Weight10.8kg per cabinet8Fly case size70*52*90CM( for 4 cabinets/ G.W.=78kgs )Whole Screen Specification1Screen Brightness≥1500cd/m22Driving Method1/16 scan3Best Viewing Distance5m - 30m4Max. Power Consumption750W/m25Average Power Consumption300W/m26Gray Level8bits input, 4096 levels(212)7Display Color16M8Frame Frequency≥60Hz9Refresh Frequency≥1200Hz10Uninterrupted Working Hours≥72 hours11Screen Life-span≥100,000 hours12MTBF≥5,000 hours13Discrete Blind Spot Rate<1/1000014Continuous Blind Spot RateNone15Blind Spot Rate<1/1000016Protective ScaleFor indoor use only17Screen Plainness<±1mm18Power Supply ModeAC220±10%  50Hz/AC110±10%  60Hz19Working TemperatureTemperature: 0 Celsius~+50 Celsius20Storage TemperatureTemperature:-30 Celsius~+50 Celsius21HumidityHumidity:10%~90% RH22Control ModeSynchronous display with control PC by DVI23Control SystemLinsn, Nova-star, Colorlight or as you required24Display ContentVideo, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.25InterfaceStandard Ethernet26Transmission DistanceMulti mode fiber <500m, single mode fiber <30km,internet cable <100m27CertificateCE-EMC, CE-LVD, FCC, RoHS

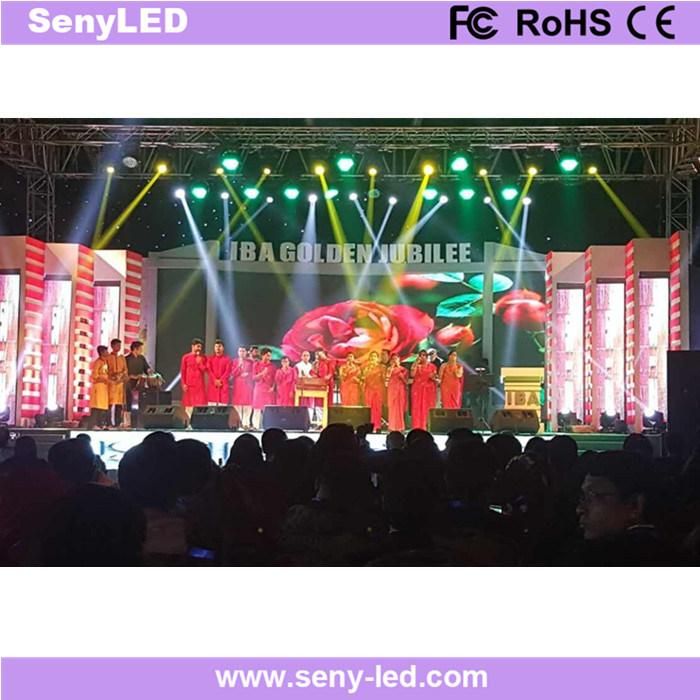

Project cases:
