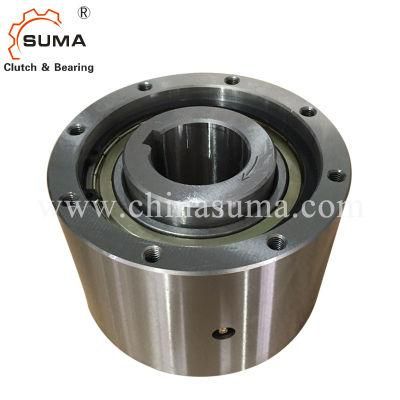

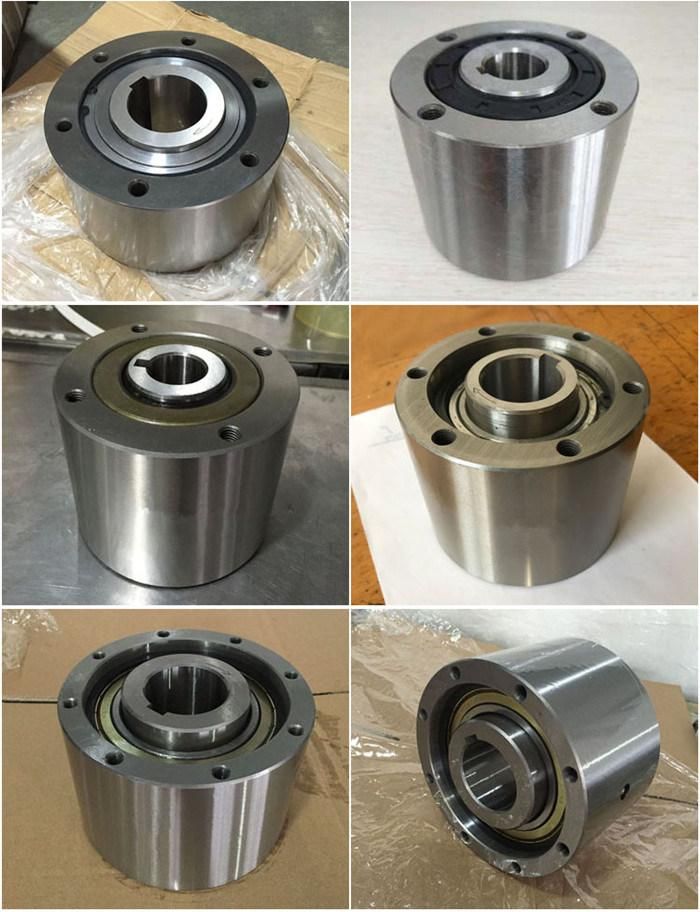

Mx22 One Way Cam Clutch (sprag clutch)

• Certification：ISO9001:2008
• Style：With Outer Ring
• Rows Number：Single
• Load Direction：Radial Bearing
• Material：Bearing Steel
• Model：Mx

=== Base Info ===

• Model NO.：MX22
• Type：Sprag,Cam
• Torque Capacity：78.4n.M
• Drag Torque：0.47n.M
• Weight：3.3kg
• Precision：P6
• OEM：Accept
• Export：Worldwide
• Delivery：10-15days
• Transport Package：Single Box or as Your Requirements
• Specification：P6
• Trademark：SUMA or OEM
• Origin：Changzhou, Jiangsu, China
• HS Code：84836000
• Production Capacity：1000PCS,Month

=== Description ===


Model
Torque
Capacity
(N·m)Max.
Indexing
 (cycle/min)
Bore Size

A

B
(h7)

C

PCD
D

E

F

SH-M
No.of
Tapped  Holes
× Size×PitchLubrication
Filler  Plug
Size×PitchInertia
Inner Race
(kg·m2)Drag
Torque
(N·m)
Oil
(m)
Weight
(kg) Dia.
(H7)Keyway MX2278.41200226 × 2.8809577801235164XM8XP1.25M6XP1.00.000150.47803.3  MX35235120035 10 ×3390125871101250164XM8XP1.25M6XP1.00.0006251.361106.4  MX5044112005014 × 3.8  100155971401470166XM8XP1.25M8XP1.250.002752.6819010.6  MX7078412007020 ×4.912720012418015100206XM8XP1.25M8XP1.250.01305.1534021.3 Note: Above torque is based on 108 times load cycles.



Package
