on-7224e Floorplate 2 Post Lifts (Electrical Release)

Hongsheng Gift Limited / 2022-06-23

on-7224e Floorplate 2 Post Lifts (Electrical Release)

  • Type:Double Cylinder Hydraulic Lift
  • Lifting Capacity:4.2 Tonne
  • Driving Type:Hydraulic
  • Certification:CE
  • Driving Motor Number of Mechanical Lift:1
  • Condition:New

=== Base Info ===

  • Model NO.:ON-7224E
  • Brand:Eounice
  • Design:Two Post
  • Trademark:Eounice
  • Origin:Guangzhou China
  • HS Code:8425429000
  • Production Capacity:10000

=== Description ===

Basic Info.

Model NO. ON-7224E Brand Eounice Design Two Post Trademark Eounice Origin Guangzhou China HS Code 8425429000 Production Capacity 10000

Product Description

on-7224e Floorplate 2 Post Lifts (Electrical Release)
on-7224e Floorplate 2 Post Lifts (Electrical Release)
CE approval by TUV, electrical release and d
ual chain drive cylinders
 FEATURES
  1. CE approval.
  2. 4,200Kg (9,300LBS.) lifting capacity.
  3. Electrical lock release with 24V low voltage operation.
  4. Durable chain drive cylinder in each column carries with anti-surge valves.
  5. Standard with 4 two-stage lifting arms.
  6. Screw-up rubber pads with min height 95mm (3 3/4").
  7. Standard with high limit switch.
  8. Standard with curtain inside column and foot guard.
  9. 1920mm (75 9/16") lifting height suitable for various operators.
  10. Automatic arms restraints.
Professional powder coating.
TECHNICAL DATA
ModelLifting CapacityLifting TimeLifting HeightMinimum HeightTotal HeightWidth Between ColumnsTotal WidthGross WeightMotor Power
ON-7224E4,200kgs (9,300LBS)≤55S1920mm
(75 9/16")
95mm
 (3 3 /4")
2824mm
(111 3/16")
2850mm
(112 1/4")
3410mm
(134 1/4")
628kgs (1,385LBS)2.2KW (3HP)
STRENGTHS:
  1. The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4"), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
  2. The cover plate is ultra-thin design, the height from the ground is only 33mm(1 5/16"), the vehicle is easier to pass;
  3. The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8") from the shaft end, which can effectively prevent the pulley from coming out.
  4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
  5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

OPTIONS:
  1. OEM/ODM service can be offered
  2. Lift color can be offered as customer request.
  3. Optional three-stages lifting arms.
  4. Optional 70mm(2 3/4") and 100mm(3 15/16") extension adapter

DIMENSION:

on-7224e Floorplate 2 Post Lifts (Electrical Release)
on-7224e Floorplate 2 Post Lifts (Electrical Release)=================================================================================================================

Seamless Laser Cutting
  1. High Accuracy and Precision Cuts
  2. Causes No Damage Or Warping, Even to Thin Materials
  3. Higher Sheet Utilization with Less Waste & Low Power Consumption
on-7224e Floorplate 2 Post Lifts (Electrical Release)

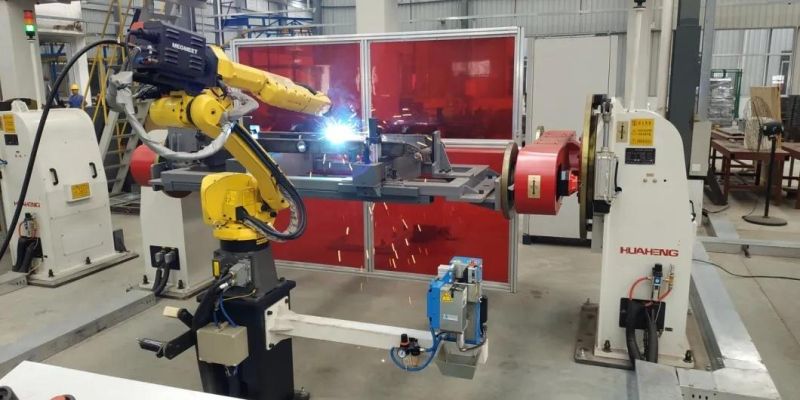

Robotic Welding Technology
  1. Seamless Appearance
  2. High Strength
on-7224e Floorplate 2 Post Lifts (Electrical Release)
Powder Coating
  1. Imported Powder and Sprayers
  2. High Adhesion
  3. Clear Powdering Effect
  4. Aesthetically Smooth Appearance.
on-7224e Floorplate 2 Post Lifts (Electrical Release)

Packing and Shipping Examples
2 post lift and 4 post lift are steel frame packed while scissor lifts are packing in ply-wood boxes with steel outlines. The control console are packed in ply-wood boxes.Strong packing guarantees the delivery in perfect condition into your hand.
on-7224e Floorplate 2 Post Lifts (Electrical Release)


Standardization is in Our Heart while Certifications are for your Eyes.
on-7224e Floorplate 2 Post Lifts (Electrical Release)

Getting Closer to You
on-7224e Floorplate 2 Post Lifts (Electrical Release)

FAQ1. Why should I choose EOUNICE car lift?
  1. 20 years of techniques research+TUV, CE, ISO9001, CCPC certifications
  2. 60,000m² lift production plant
  3. Professional cost-effective 50+ automatic machines & production lines
  4. Top quality raw materials from the finest plants
  5. Competitive prices with higher quality
  6. Own factory with stable supply and target for long term cooperation
  7. Treat n respect customer as good friends, no matter where they come from.

2. How safe are EOUNICE post car lift?
EOUNICE car lifts have been tested and CE certified for safety . They also meet the American and Australian Standard.

3. Are EOUNICE car lifts designed for commercial use?
All of our lifts can be used in commercial applications without any problems.

4. Do you offer any custom designs?
Sure, EOUNICE provides OEM/ODM services. We can build the molds and fixtures and produce according to your samples or technical drawings.

5. How about your delivery time?
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


6.Does my lift come with the necessary anchor bolts and/or hardware to mount it to the floor?
All EOUNICE lifts are shipped with the necessary anchors required for mounting the unit to your floor.

  7.What is the ceiling height required for a EOUNICE lift?
The required ceiling height depends on the lift model, as well as the intended vehicle. Please refer to the product specification page for each product for further details. Or contact us for advice.

8.Are car lifts available in different voltages?
Other (unlisted) voltages may be available upon request. Voltage options vary between models.


9.Do car lifts require maintenance?
A simple monthly checklist is perhaps the most you'll do on a regular basis, aside from common-sense visual inspections you'll do every time you lift and lower your vehicles. Cables need to be maintained, as do hydraulic systems.
