3D Printing Industrial Semi-Conductor Industries Linear Slideway Guide Rail

• Feature：High Speed
• Flange Shape：Square
• Shape：Flange
• Series：Hg
• Material：Bearing Steel
• Type：Universal

=== Base Info ===

• Model NO.：HGW
• Allowed Static Moment：1.98,1.55,1.55 Kn-M
• Dynamic Rated Load：16.97-136.46kn
• Static Rated Load：11.38-94.54kn
• Screw Size：M4-M12
• Rail Weight：1.45-10.41kg,M
• Slider Weight：0.18-3.61kg
• Mutual H：0.006 mm
• Mutual N：0.006 mm
• Motion Accuracy C on a：0.003,100mm
• Motion Accuracy D on B：0.003,100mm
• Transport Package：Wooden Case, Carton
• Specification：520*420*4500mm
• Trademark：SNTOOM
• Origin：Wenzhou, China
• HS Code：8466940090
• Production Capacity：100000PCS,Month

=== Description ===
Overview Product Description



High Accuracy
Product Parameters

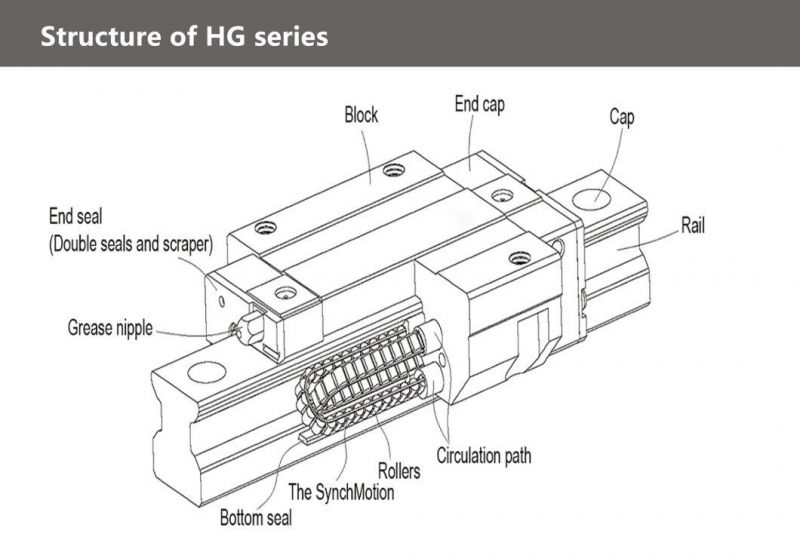

Circulation unit:   Block, Rail, End Cap, Steel Balls, Circulation tube
Lubrication unit:  Grease nipple.
Anti-Dust unit:  End Seal, Bottom Seal, Mounting Hole Cap.
