F12 Model Semi Universal Dividing Head

Qingdao Xinghe Industrial Co., Ltd. / 2022-06-09

F12 Model Semi Universal Dividing Head

  • Certification:ISO9001:2008
  • Application:Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine, Milling and Drilling Machine
  • Function:Semi-Universal
  • Structure:Tilting Type
  • Dividing Type:Worm Type
  • Material:Cast Iron

=== Base Info ===

  • Model NO.:F12
  • Type:Semi-Universal
  • Transport Package:Plywood Case
  • Specification:F12
  • Trademark:Neutral or OEM
  • Origin:China
  • HS Code:84663000
  • Production Capacity:2000,Year

=== Description ===
ItemsFB80F12100F12125F12160F12200F12250Center height   mm80100125160200250Swivel angle of spindle from its horizontal position (upward)≤90°≤95°Horizontal position(downward)≤6°≤5°Rotating angle of spindle for one complete revolution of dividing handle9°(540grad.,1'each)Min. reading of vernier10"Worm gear ratio1:40Taper of spindle boreMT3MT4MT5Width of locating key       mm141822Dia.of short taper of spindle nose for mounting flange   mmΦ36.541Φ41.275Φ53.975Φ82.563Hole numbers on index plate1st  plate24,25,28,30,34,37,38,39,41,42,432nd  plate46,47,49,51,53,54,57,58,59,62,66Individual indexing error of the spindle for one complete revolution of dividing handle60"±45"Cumulate error at any 1/4 periphery of spindle70"±1'Max. bearing  Kg80100130130200200N.W.         Kg265783.5100  G.W.         Kg326996114325380Case dimensions mm480X360X219610X459X255536X460X310710X505X342980X720X530980X720X530
Company instructions:

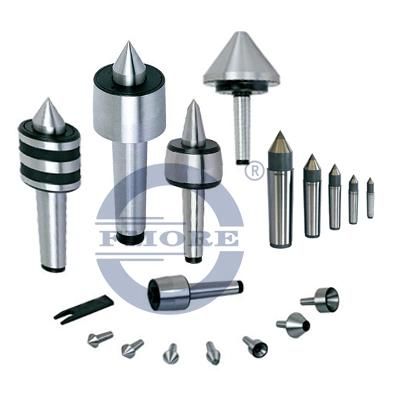

Yantai Formore Machinery Co., Ltd. Located in a beautiful coastal city of Yantai, Shandong, China. We specializes in supplying Machine Accessories for more than ten years .We supply machine tools, such as NC turret, steady rest,dividing head, rotary table, machine vises, lathe chucks, magnetic chucks, live center ,tools post ,drill chucks and so on.   If you need our products please feel free to contact me. I will provide the best service.

we also provide bellow products:
F12 Model Semi Universal Dividing HeadF12 Model Semi Universal Dividing HeadF12 Model Semi Universal Dividing HeadF12 Model Semi Universal Dividing HeadF12 Model Semi Universal Dividing HeadF12 Model Semi Universal Dividing Head



RFQ:
Q: What can I get the price?
A: We usually quote within 2 hours after we get your inquiry. If you are very urgent to get the   price, please tell us in your email so that we will regard you inquiry priority.

Q: What is your term of delivery?
A: We accept EXW, FOB Qingdao  etc or CFR QINGDAO etc. You can choose the one which is the most convenient or cost effective for you.

Q: What about the lead time for the mass production?
A: Honestly, it depends on the order quantity and the season you place the order.

Q: Are you trading company or manufacturer ?
A: We are factory and trade company.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
