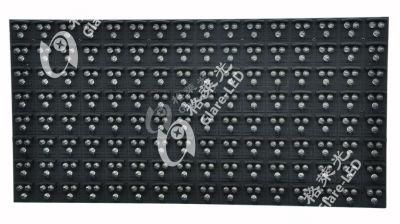

P20 Outdoor Dual-Color LED Display Board Module

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：20mm
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：100W Per Sqm

=== Base Info ===

• Model NO.：Outdoor DIP 20
• Pixel Density：2500 Dots Per Sqm
• Scanning Mode：Static Scan
• Display Type：LED Dot Matrix Display
• Application：Highway
• Certification：CE, RoHS, CCC
• Brightness：12000
• Weight：800g+10g
• Item Size：320*160*32mm
• Max Current：1.6A
• Input Voltage：5V
• Hub Port：Hub40
• Transport Package：Wooden Carton
• Specification：8*16
• Trademark：GLG-LED
• Origin：China
• HS Code：8531200000
• Production Capacity：50000PCS,Month

=== Description ===
Pixel Pitch 20mmPixel Configuration (optional)2A;   2R;  3R1G;   1R1G1B;    2R1G1BBrightnessover 9000 cd/m², up to 12400 cd/m²Viewing angle30º for highway;  70º for highway and city roadsinput voltage5V


Product Parameter (other related options):
 Pixel Pitch 16mm; 20mm; 25mm; 31.25mm; 33.33mm (for highway)
10mm; 16mm; 20mm ( for city roads)Color Optionssingle color: red or yellow;
Duel color like Red and Green.
Full color RGB
 Brightnessover 9000 cd/m², up to 12400 cd/m²Viewing angle30º for highway;  70º for highway and city roadsCommunicationTCP/IP (rj45)  or  RS232/RS 484, or GPRS and 4GNote: we have all kinds of other led modules for traffic road, please let us know your application site, to recommend you appropriate ones.
