12t 14t 16t 18t BPW Germany Type Axle for Semi Trailer Vehicle Part

• Condition：New
• Axle Number：1
• Application：Trailer
• Certification：ISO
• Material：Steel
• Type：Rear Axles

=== Base Info ===

• Model NO.：Drum spoke type
• Name：Heavy Duty Axle
• Transport Package：Pallet, 58PCS,1*20′cntr.
• Specification：13T
• Trademark：WONDEE
• Origin：China

=== Description ===
Part No.Max. CapacityDistance of ChamberTrackAxle BeamBrake sizeLengthBearingWeightXDE12-1802120004201840150420×180215633213/33118372XDE12-2002120003541840150420×200215633213/33118396XDE14-2001140003541840150420×200218833215/33119416XDE16-2001160003561850150420×200224232314/32222468XDE16-2201160003761850150420×220224232314/32222474XDE18-2202180003761850150420×220224232314/32222491
WONDEE Semi trailer Axle machining:




WONDEE Heavy duty semi trailer axle Features :

1.Axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.
2. Axle  spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.
3. Axle  spindle is connected by the by submerged arc welding, which make the whole beam more reliable and solid.
4.Axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.
5. Axle grease lubricant is supplied by EXXON Mobile which could providehigh lubricating performance and protect bearing well.
6. Axle brake lining is high performance, non-asbestos, non-pollution and long service life. To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.
7.Axle bearing is adopted famous brand in China, with the advantages of over loading capability, High rotating speed, good intensity, abrade resistant and heat resistant.



WONDEE Semi trailer Axle Warehouse:



WONDEE axle factory Workshop :

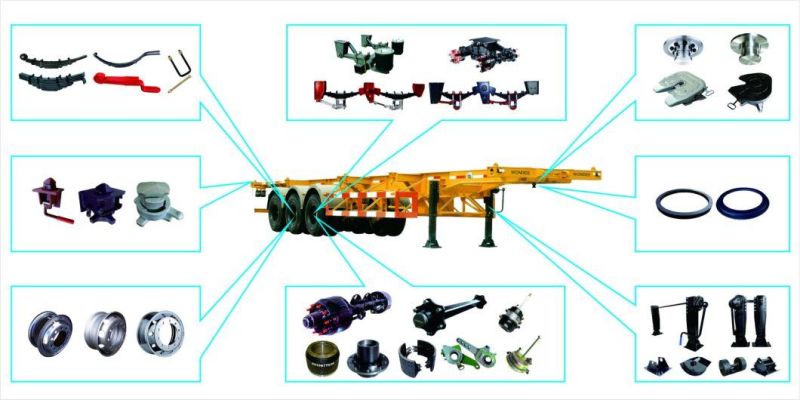

 Besides Semi trailer Axle ,WONDEE also Supply:
