Spray Painting Booth / Downdraft Spray Painting Room

• After-sales Service：Available
• Warranty：12months
• Type：Auto Paint Spray Booth
• Certification：CCC, CE, CSA, GS, UL, SGS, ISO
• Substrate：Steel
• Brand：Hongyuan

=== Base Info ===

• Model NO.：HY-CB55C
• Coating：Painting
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50,75mm EPS Foam Panel
• Grate：5rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filtration System
• Upper Light：Available
• Side Light：Optional
• Control Box：English Panel
• Standard Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Related Product 1：Furniture Paint Spray Booth
• Related Product 2：Folding Retractable Spray Paint Booth
• Related Product 3：Wet Type Water Curtain Paint Spray Booth
• Related Product 4：Dry Type Andrea Filter Paint Spray Booth
• Transport Package：Proper Packing Suitable for Sea Shipment
• Specification：25cbm for a 20ft container loading.
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

=== Description ===

Basic Info.

Model NO. HY-CB55C Coating Painting Airflow Direction Lateral Undershot-type Heating Mode Electric Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 5rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Related Product 1 Furniture Paint Spray Booth Related Product 2 Folding Retractable Spray Paint Booth Related Product 3 Wet Type Water Curtain Paint Spray Booth Related Product 4 Dry Type Andrea Filter Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the spray painting booth / downdraft Spray Painting Room
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the spray painting booth / downdraft Spray Painting Room

Model	HY-CB55C
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<17kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	TWO set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(ELECTRIC)	Infrared heat tubes, Italy Riello one-stage oil burner for option.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

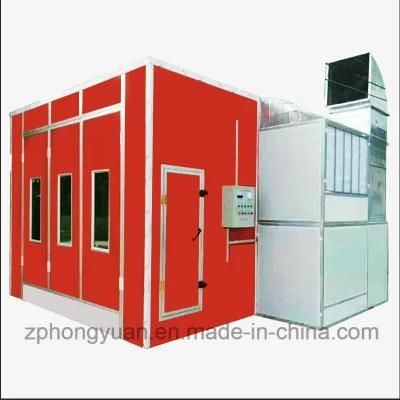

Picture of the spray painting booth / downdraft Spray Painting Room


details show of spray painting booth / downdraft Spray Painting Room



parts show of spray painting booth / downdraft Spray Painting Room






Project case for paint booth



Certificate of our product and company
