All in One Integrated LED Solar Street Light for Government Road Lighting Project with CE/RoHS/IP67/Ik10/CB/IEC/TUV-Sud Certificates

Hangzhou Tianye Packaging Technology Co., Ltd. / 2022-06-27

All in One Integrated LED Solar Street Light for Government Road Lighting Project with CE/RoHS/IP67/Ik10/CB/IEC/TUV-Sud Certificates

  • Warranty:3 Years, 5 Years
  • Light Source:LED Lamp
  • Lamp Body Material:Aluminum Alloy
  • Light Type:Solar
  • Color Temperature:2700K-6500K
  • Power:80W

=== Base Info ===

  • Model NO.:ISSL-SPR-080CS
  • Technics:Electroplating
  • Illumination Time:>12h
  • Cell Type:LiFePO4 Lithium Battery
  • Charging Time (H):6
  • Usage:Garden, Street
  • IP Rating:IP66
  • Certification:CE, RoHS
  • Voltage:12V
  • With Light Source:With Light Source
  • Lamp Luminous Flux(Lm):8000~9600lm
  • Solar Panel:High Efficiency Monocrystalline
  • Charge Controller:MPPT
  • Smart Function:Remote Control,Motion Sensor,Light Sensor,Timer
  • Lighting Time:2-3 Rainy Days
  • Working Temperature(ºC):-20 - 65
  • Mounting Height:10m-12m
  • Certificate:ISO 9001,14001,TUV-Sud ,CE,RoHS,IP66
  • Lamp Pole Distance:40m-45m
  • Transport Package:Carton, Pallet, Bubble
  • Specification:10-12M pole 80W Street LED Light
  • Trademark:ESAVIOR , OEM
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:10000 Piece, Per Month

=== Description ===
All in One Integrated LED Solar Street Light for Government Road Lighting Project with CE/RoHS/IP67/Ik10/CB/IEC/TUV-Sud CertificatesPacking & WeightLight Body Size:1520*355*55mmNet Weight21.6kg (Light: 16.0kg, bracket: 5.6kg)All in One Integrated LED Solar Street Light for Government Road Lighting Project with CE/RoHS/IP67/Ik10/CB/IEC/TUV-Sud Certificates

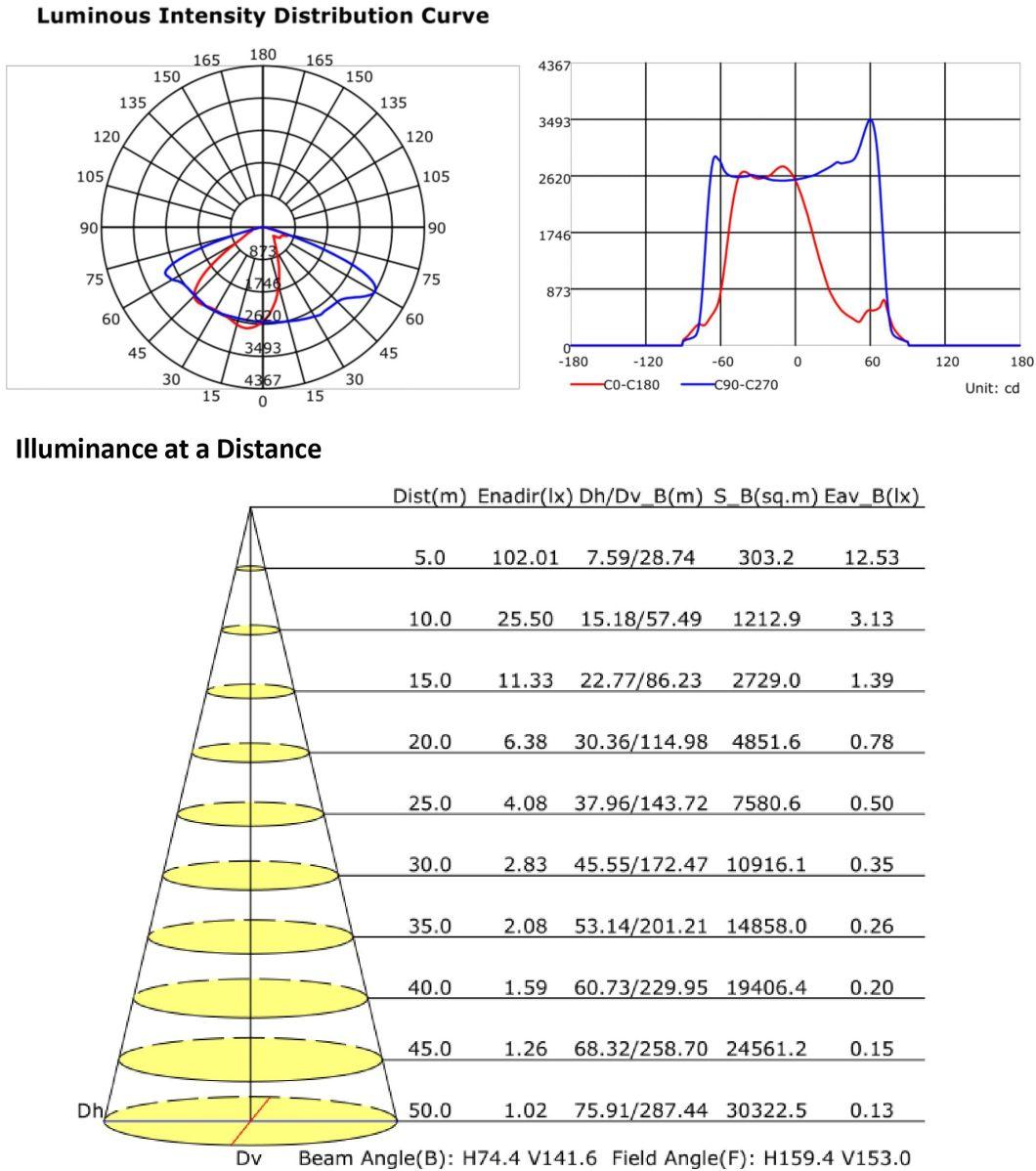

DISTRIBUTIONS & IES TYPE
IES Type II as regular distribution, customized IES Types available upon requirements


All in One Integrated LED Solar Street Light for Government Road Lighting Project with CE/RoHS/IP67/Ik10/CB/IEC/TUV-Sud Certificates

DIALUX SIMULATION REPORT
Street Profile(Tarmac: R3, q0: 0.070)
Pole Height :10m ; Pole Distance :35m; Road Width: 14m; Lanes: 4;

All in One Integrated LED Solar Street Light for Government Road Lighting Project with CE/RoHS/IP67/Ik10/CB/IEC/TUV-Sud Certificates

WHY ESAVIOR?

1. 12 years' experience in with global successful project reference on the Solar Lighting field.

2.
 13 patents core technologies were awarded to our Solar Street Lights and IoT online Monitoring System for Solar Street Light.

3.
ISO 9001/14001, IEC 60598/ IES TM-21 / IES RP-27.3-07 reports were awarded by TUV-SUD besides our existing CE/RoHS/IP66 certificates.

4. More than 100 countries' clients enjoy our solar street led lights, highly praised by UNDP, UNHCR, UNOPS, Red Cross, The World Bank and government.

5. Provides a modern manufacturing base which meets international global solar RD & Inspection Center, has the most advanced inspection equipment and faultless QA system.

SOLAR STREET LIGHT FAQ:

Q1:Does the lamp light on automatically?

A:Yes, it will light on automatically at darkness no matter which mode except "OFF".

Q2:Can I order samples for solar street light?

A:Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

Q3:What about the lead time?

A:3 workdays for sample, 7-15workdays for batch order(more than 100pcs).

Q4:Do you offer guarantee for the products?

A:Yes, we offer 3-5 years warranty to our products.

Q5:Can the lamp be used in strong wind environment?

A:Of course yes, as we take Aluminum-alloy holder, solid and firm, Zinc plated, anti- rust corrosion.

Q6:What's the difference between Motion sensor and PIR sensor?

A:Motion sensor also called radar sensor, works by emitting high frequency electric wave and detecting people movement.PIR sensor works by detecting environment temperature changing, which usually is 3-5 meters sensor distance.But motion sensor can reach 10 meters distance and be more accurate and sensitive.

Q7:How to deal with the faulty?

A:Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.5%. Secondly, during the guarantee period, we will send replacements with new order for small quantity.



Thank you for your attention!  More details feel free to contact ESAVIOR team!
