Right-Angle Worm Wheel Gearbox with Iron Body for Conveyor

• Application：Motor, Machinery, Marine
• Function：Speed Reduction
• Layout：Coaxial
• Hardness：Soft Tooth Surface
• Installation：Vertical Type
• Step：Single-Step

=== Base Info ===

• Model NO.：NMRV
• Type：Worm Gear Box
• Color：Blue, Silver
• Input Type：Flange, Motor
• Output Hole Dia：42mm
• Input Hole Dia：28mm
• Input Flange：250mm
• Transport Package：Carton and Pallet
• Specification：SGS, ISO9001: 2015, CE
• Trademark：Starshine
• Origin：Foshan, China
• HS Code：8483409000
• Production Capacity：20000 PCS Per Month

=== Description ===

Basic Info.

Model NO. NMRV Type Worm Gear Box Color Blue, Silver Input Type Flange, Motor Output Hole Dia 42mm Input Hole Dia 28mm Input Flange 250mm Transport Package Carton and Pallet Specification SGS, ISO9001: 2015, CE Trademark Starshine Origin Foshan, China HS Code 8483409000 Production Capacity 20000 PCS Per Month

Product Description

RV series Characteristics

• RV - Sizes:030-040-050-063-075-105-110-130-150
• Input Options: with input shaft, With Square flange,With Input Flange
• Input Power 0.06 to 11 kW
• RV-Size from 030 to 105 in die-cast aluminium alloy budy and over 110 in cast iron
• Ratios between 5 and 100
• Max torque 1550 N.m and admissible output radial loads max 8771 N
• Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
• Worm wheel: Copper (KK Cu).
• Loading capacity in accordance with: ISO 9001:2015/GB/T 19001-2016
• Size 030 and over are painted with RAL 5010 blue
• Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRVpower+NMRV, JWB+NMRV
• NMRV, NRV+VS,NMRV+AS,NMRV+VS,NMRV+F
• Options: torque arm, output flange, viton oil seals, low/high temperature oil, filling/drain/breather/level plug,Small gap

Basic models can be applied to a wide range of power reduction ratios from 5 to 1000.
Warranty: One year from date of delivery.





WORM GEARBOX
SNW SERIES					Output Speed Range:
Type	Old Type	Output Torque	Output Shaft Dia.		14rpm-280rpm
SNW030	RV030	21N.m	φ14		Applicable Motor Power:
SNW040	RV040	45N.m	φ19		0.06kW-11kW
SNW050	RV050	84N.m	φ25		Input Options1:
SNW063	RV063	160N.m	φ25		With Inline AC Motor
SNW075	RV075	230N.m	φ28		Input Options2:
SNW090	RV090	410N.m	φ35		With Square flange
SNW105	RV105	630N.m	φ42		Input Options3:
SNW110	RV110	725N.m	φ42		With Input Shaft
SNW130	RV130	1050N.m	φ45		Input Options4:
SNW150	RV150	1550N.m	φ50		With Input Flange

Starshine Drive

Guangdong Starshine Drive Co.,Ltd,the predecessor was a state-owned military mould enterprise, was established in 1965. Starshine specializes in the complete power transmission solution for high-end equipment manufacturing industries based on the aim of "Platform Product, Application Design and Professional Service".
Starshine have a strong technical force with over 350 employees at present, including over 30 engineering technicians, 30 quality inspectors, covering an area of 80000 square meters and kinds of advanced processing machines and testing equipments. We have a good foundation for the industry application development and service of high-end speed reducers & variators owning to the provincial engineering technology research center,the lab of gear speed reducers, and the base of modern R&D.



Our Team

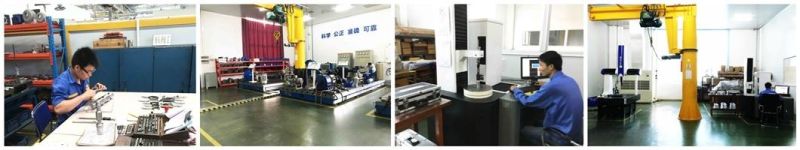

Quality Control
Quality:Insist on Improvement,Strive for Excellence With the development of equipment manufacturing indurstry,customer never satirsfy with the current quality of our products,on the contrary,wcreate the value of quality.
Quality policy:to enhance the overall level in the field of power transmission
Quality View:Continuous Improvement , pursuit of excellence
Quality Philosophy:Quality creates value



3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures
 to prevent recurrence.

4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend;
 found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.

5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of
customer expectations and needs.

6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product
 is a product inspection to determine the qualified products.
