Fricwel High Quality Brake Lining Brake Block Wva 19580 for Heavy Duty Truck

• After-sales Service：Avaliable
• Warranty：One Year
• Type：Brake Lining
• Material：Non-Asbestos
• Position：Front
• Certification：ISO,TS16949, ISO9001

=== Base Info ===

• Model NO.：19580
• Main Market：South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Southern Europe, Central America, South Asia
• Transport Package：Box+Pallet
• Specification：GB,T 5764-2018
• Trademark：Fricwel
• Origin：China
• HS Code：8708301000
• Production Capacity：300, 000 PCS,Month

=== Description ===

Basic Info.

Model NO. 19580 Main Market South America, Eastern Europe, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Southern Europe, Central America, South Asia Transport Package Box+Pallet Specification GB/T 5764-2018 Trademark Fricwel Origin China HS Code 8708301000 Production Capacity 300, 000 PCS/Month

Product Description

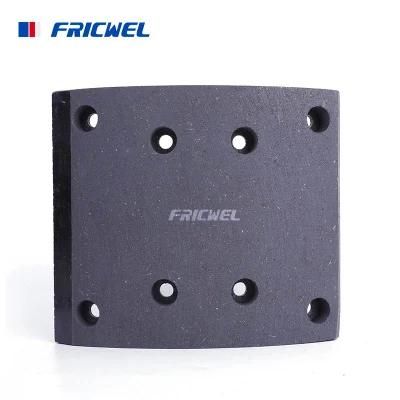

Brake lining NO.: WVA 19580
Size:160mm
Application: DAF
Material: Semi-Metal, Non-asbestos, NAO

Related Products Of The Company:

Products Performance And Advantage:
Brake lining regular materials including  non-asbestos, semi-metal, NAO formula, new developed have green, red, Khaki and black particle material.
Product performance test results as follows:
1. 100ºC-250ºC Friction efficient: 0.405-0.445, 300ºC Friction efficient : 0.382.
2. 100ºC-250ºC Wearing rate: 0.105-0.242, 300ºC Wearing rate: 0.233.
3. Density 2.24 g/cm3, Hardness : 61-66HRM.
4. Impact strength: 3.12-3.8DJ/cm2,Thermal Expansivity 0.87% .
5. Shearing strength : 22.63MPa,Compression strength: 86.51N/mm2 .

Advantage:
1. Better wear resistance effect, 5% higher coefficient than regular brake lining.
2. Cost-effective and durable, 8% longer life than normal products.
3. Comfortable hardness, no hurting the brake drum.
4. 10-15% stronger than regular brake products.
5. Less noise and lower dust, making brake drum more cleaner and better finishing.






Dimensions And Specifications:

NO.	CODE NUMBER	B.F.M.C	ARC	WIDTH	Thickness	Thickness	Weight	INSIDE ARE	QTY/ Carton	G.W./ Carton	HOLE	Rivets
1	15350	BENZ 508	310	70	9	9	391	140	40	17	14	6*15
2	15581	MB95/1 MB186	310	98	10	10	608	140	40	25	14	6*15
3	17276	MB60/1	200	140	15	15	840	205	16	14	8	8*20
4	17298	MB320 MB68/1	230	120	15	15	828	194	16	14	8	8*15
5	17683	MP30/1	193	140	16.8	12.5	792	200	16	14	8	8*18
6	17714	BO56/1	430	128	7	7	771	199	20	16	16	L08
7	19075	SV/8/1	212	178	19	19	1434	187	16	24	12	6*20
8	19094	BC97/1	220	200	18	11	1276	203	16	21	10	8*18
9	19151	DAF21/1	237	152	18.8	14.8	1210	203	16	20	10	L09
10	19160	MB51/1	200	170	15	15	1020	205	16	17	8	8*20
11	19256	DAF/2800/3300R	235	177	18	11	1206	203	16	20	14	L09
12	19365	RW/1/3	211	203	18	10.5	1221	203	15	19	12	L10
13	19468	VL72/1	161	178	19.1	15.6	994	197	16	17	9	6*20
14	19495	MP32/2	192	180	17	11.8	995	200	16	17	8	8*18
15	19554	RW29/2	217	200	22	14.5	1584	204	16	26	12	8*15
16	19563	VL77/1	161	203	19.1	14.8	1108	192	16	19	9	S34
17	19580	MB74/1	193	160	18.5	15.7	1056	199	16	18	8	8*20
18	19657	BT/59/6	400	175	13	13	1820	193	12	23	10	6*15
19	19847	PB/18/1	210	220	18.6	16.8	1635	200	16	27	12	10*17
20	19934	RN100/1	198	150	18.5	18.5	1099	187	16	19	8	8*18
21	19995	NN61/1	211	203	15.5	15.5	1328	188	16	22	15	6*20
22	44066-90118	NISSAN NN41/1	215	180	18	18	1393	187	16	23	9	10*30
23	47115-349	ISUZU NQR 4.3	340	120	11	11	898	148	20	19	16	6*16
24	47441-4070	HINO	220	120	15	15	792	185	24	20	10	6*16
25	MB162000	CANTER	343	75	10	10	515	152	40	22	12	6*

Production Scenario:



Company Profile:
Founded in 1992, our factory covers an area of more than 20,000 square meters, with an annual output of about 1,000 tons. Our main business is the production and sales of auto parts products, such as clutch facings, copper clutch buttons, friction disc and related accessories. We are also one of the earliest friction material manufacturers in China.
Our factory has passed ISO9001 quality system certification. And we have various advanced lathes and processing equipments, as well as various engineering testing instruments,reaching the leading level in the domestic industry. Our products are exported to all over the world and well received by customers.

Why Choose Us?
1. Focus on friction materials production for more than 20 years.
2. Strict quality control system and professional inspection, OEM service avaliable.
3. One year quality gurantee since the date of delivery.
4. The product has passed CE, ISO and TS16949 certificates.
5. Professional online service team, quick response for customer message and question.
6. Sales markets covers North America, South Aemica, Europe,Asia, Middle east and Africa.
