Lower Price Car Spray Oven Bake Booth/Painting Room

Yumyth Electronic Tech Co., Limited / 2022-06-23

Lower Price Car Spray Oven Bake Booth/Painting Room

  • After-sales Service:Available
  • Warranty:12months
  • Type:Auto Paint Spray Booth
  • Certification:CE, ISO, SGS
  • Substrate:Steel
  • Brand:Hongyuan

=== Base Info ===

  • Model NO.:HY-CB55C
  • Coating:Painting
  • Airflow Direction:Lateral Undershot-type
  • Heating Mode:Electric
  • Paint Mist Treatment:Dry-type
  • Condition:New
  • Color:Red, Blue, White
  • Panel:50,75mm EPS Foam Panel
  • Grate:2rows
  • Ramp:2pieces
  • Heating System:Gas, Diesel, Oil, Used Oil, Electric
  • Filter System:4-Stage Filtration System
  • Upper Light:Available
  • Side Light:Optional
  • Control Box:English Panel
  • Standard Voltage:380V,3f&220V,1f@50Hz
  • Control:Automatic
  • Drawing:Available
  • User Manual:Available
  • Installation Video:Available
  • Related Product:Car Lif,Tire Changer,Wheel Balancer
  • Transport Package:Proper Packing Suitable for Sea Shipment
  • Specification:25cbm for a 20ft container loading.
  • Trademark:Hongyuan
  • Origin:Shandong, China
  • Production Capacity:100 Set Per Month

=== Description ===

Basic Info.

Model NO. HY-CB55C Coating Painting Airflow Direction Lateral Undershot-type Heating Mode Electric Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lif/Tire Changer/Wheel Balancer Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
ModelHY-CB55C
Outside Size(mm)7000(L)*4000(W)*3400(H)
Inside Size(mm)6900(L)*3900(W)*2700(H)
Front Door(mm)3000*2600(W*H)
Side Door(mm)650*1800(W*H)
Total power<13kW
Voltage status380V/3ph&220V/1ph@50Hz
Wall Panel50mm EPS foam panel
Ceiling panelGalvanized steel
Basement&floorRaised metal-base (300mm high) with 2row of grates and 3rows of diamond plates.
IntakeTWO sets of fan, motor: 4.0kW.
Exhaust One set of fan, motor: 5.5kW.
By-passPneumatic damper from spraying to baking cycle
Heating System(electricity)Italy Riello one-stage oil burner./electric heating system/Riello gas burner.
Filter System4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting Upper lights, 8units, 4*36W each.
Control System1set.

Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
Lower Price Car Spray Oven Bake Booth/Painting Room

details show of paint booth
Lower Price Car Spray Oven Bake Booth/Painting Room

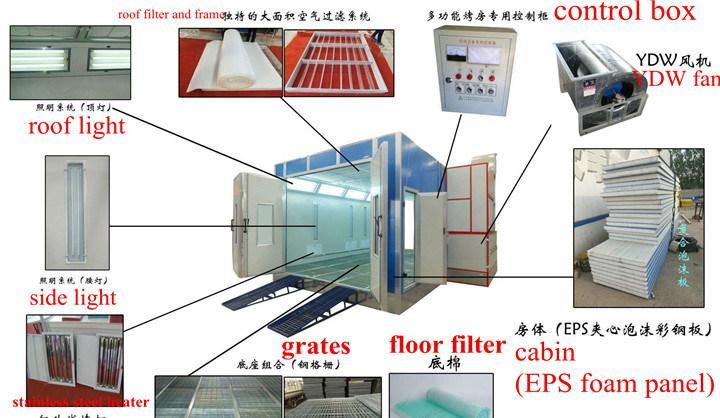

parts show of paint booth
Lower Price Car Spray Oven Bake Booth/Painting Room

Lower Price Car Spray Oven Bake Booth/Painting Room
Lower Price Car Spray Oven Bake Booth/Painting Room

Project case for paint booth
Lower Price Car Spray Oven Bake Booth/Painting Room
Lower Price Car Spray Oven Bake Booth/Painting Room

Certificate of our product and company

Lower Price Car Spray Oven Bake Booth/Painting Room
Our Team is serving you at any time
Lower Price Car Spray Oven Bake Booth/Painting Room
