G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3

Hubei Wowfond Industrial Co., Ltd. / 2022-06-23

G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3

  • Warranty:One Year Free Repair Warranty
  • Testing Equipment Type:Diagnostic Scanner for Car and Trucks
  • Certification:CE
  • Update Method:by Internet
  • Condition:New
  • Standard:Standard

=== Base Info ===

  • Transport Package:Carton Box
  • Origin:Korea

=== Description ===

Basic Info.

Transport Package Carton Box Origin Korea

Product Description

G-Scan Tab GVCI PC Based Diagnostics Bluetooth Solution GSCAN Device In Place of G SCAN 2 and G SCAN3




G-Scan Tab SMALL BUT POWERFU



No more diagnostic cables between your scan tool and a vehicle.


G-scan Tab is an affordable Tablet PC based diagnostic solution with Bluetooth technology.



G-scan Tab shares the same database with legendary G-scan and G-scan2.



With already massive, yet constantly growing coverage, you can enjoy G-scan's brilliant software with choice of your own Windows based device..





The G-scan Tab is an affordable PC based automotive diagnostic solution using Bluetooth technology.


The G-scan Tab offers exceptionally strong and reliable bluetooth connectivity and can connect to a windows 10 or later based tablet, laptop or computer. The fast and intuitive G scan limited diagnostic software gives in-depth capabilities on a huge range ofvehicle makes and models, which is updated and expanded 3 times per year. Includes one year free software updates, and 12 months warranty.

Note: PC or tablet is not included with purchase. Own PC, tablet or desktop pc with Windows 10 (or later) operating system and bluetooth connection capability is required for operation.

12v system coverage only, 24v vehicles not supported by G scan Tab. (refer G scan 2 or G scan 3)

OBDII connected vehicles covered only. OBDI generation vehicles not supported by G scan Tab. (refer G scan 2 or G scan 3)

J2534 pass thru not supported by G Scan Tab. (refer G scan 2 or G scan 3)





Features:


Wireless via Bluetooth


Wireless and reliable connection between the GVCI and the PC is made simple and easy via Bluetooth



Factory Tool base H-yundai and K-ia S/W


Provides complete coverage for H-yundai K-ia cars based on H-yundai and K-ia GDS factory tools



Cost Efficient


No ned to pay for standalone scan tools complete hardware. save the cost by selecting and affordable Windows based tablet from the shop or by utilizing the laptop that you already own.



Versatility
Runs on a windows based Tablet,or any standard Windows device including laptop and desktop PCs. Minimum system requirement should be observed.



No Pre OBD-II vehicles coverage
G-SCAN Tab shares the same database (including OBD I Generation vehicles) with G-SCAN and G-SCAN2.



No 24V Commercial vehicles Support
G-SCAN Tab is not copable of accepting power and signal of 24V commercial vehicles.



No J2534 Pass-thru function
G-SCAN Tab does not support J2534 function. G-SCAN2 is the only option as a Pass-Thru device for programming ECUs on both Hyundai and Kia vehicles.





General Specification



 Specifications
MemoryFlash Memory 2Mbyte / SRAM 256Kbyte
Operating Voltage7~35VDC
Dimension / Weight

58 X 74 X 36 mm / 90 g

Wireless protocol

Bluetooth 2.1 + EDR (2.4GHz)
Indicators2 LEDs (Front/Bottom)
CAN

CAN (High Speed, Low Speed, Single Speed)

K-Line / L-LineISO-1941, ISO-9141-CARB, KWP-2000
Commercial VehicleSAE-J1708 / J1587, J1850 (VPWM,PWM)
Data / Control LineMelco Pull-Down







System Requirements




Display1200 X 1800 or Higher
CPUIntel Bay Trail-T Z3735F 64bit processor or later with greater performance
RAM2 GB or more
Storage (C:)15 GB or more free space
OSWindows 10 (or later version)
Wireless protocolBluetooth 2.0 or higher






Smart Update



When the Windows tablet or PC is connected to the internet, G-scan Tab connects to the GIT server through the internet, checks and downloads available updates and patches, and keeps the diagnostic database up to date.



G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3





System and DTC Auto Search



"System Search" option automatically checks all vehicle systems and reports fault codes, and provides access to advanced diagnostic functions available for each detected system.



G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3

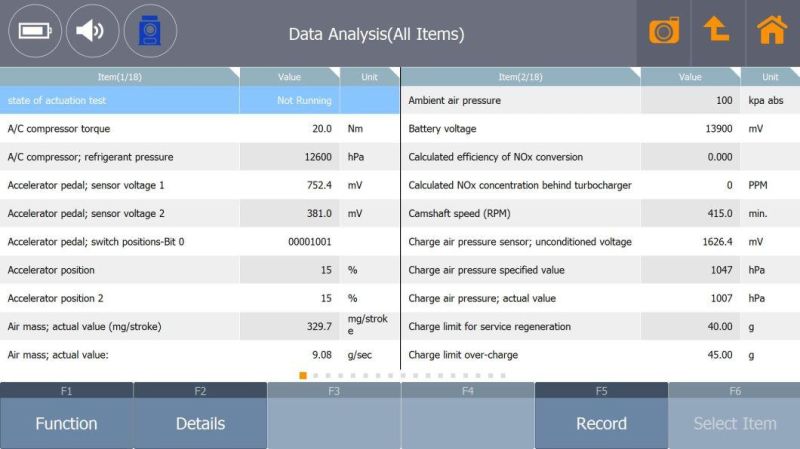

Live data



As one of the basic diagnostic functions, G-scan Tab provides live data enabling users to monitor the system control unit's input and output side.





 G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3




Actuation Test



Actuation test is another basic diagnostic functions that G-scan Tab provides. Users can check the control unit's operation by activating or deactivating the operation of an active component under control unit's command.





G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3





Special Function



In addition to the basic functions of DTC read/erase, Live Data, Actuation Test and ECU info, G-scan Tab provides various coding, learning and Initializing functions.



G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3





Diagnostic Trouble Code



DTC read and erase are the basic of the basic functions for diagnosis. G-scan Tab provide 2-line DTC description that shows the long-text DTC descriptions in full, no more acronyms or erasing to fit in the limited space.



G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3





Data Graphing with Auto Scale



Alpha-numerical value of live data can be switched to fast and responsive graph mode by a simple click. It instantly self-adjusts max and min scale helping users more accurately observe and compare the parameters.





G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3



Data log and direct feedback



In case of error or failure, users can log bi-directional data transmission between G-scan Tab and the vehicle. Log data can be sent to the engineers directly from G-scan Tab, which is responded within 24 hours on working days.



G-Scan Tab Gvci PC Based Diagnostics Bluetooth Solution Gscan Device in Place of G Scan 2 and G Scan3
