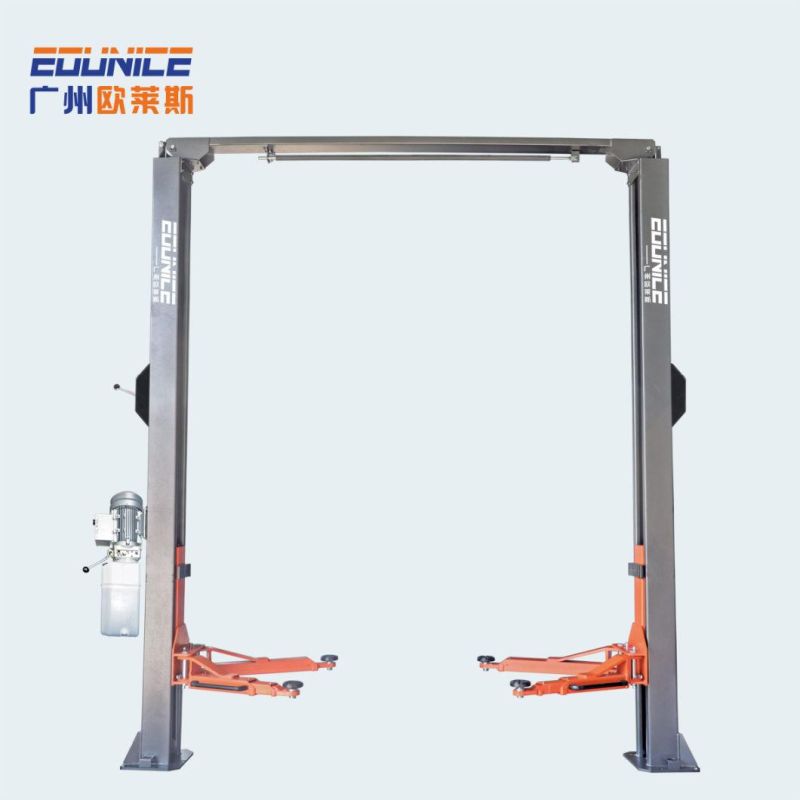

Floor Plate 2 Post Lifts One Side Manual Release Workshop Lift Gargae Use

• Warranty：1 Years
• Type：One Cylinder Hydraulic Lift
• Lifting Capacity：4T
• Driving Type：Hydraulic
• Certification：CE, ISO
• Driving Motor Number of Mechanical Lift：1

=== Base Info ===

• Model NO.：ON-7214D
• Double Cylinder Lift Type：Planer-type
• Condition：New
• Brand：Eounice
• Design：Two Post
• Model：on-7224D
• Lifting Time：55s
• Lifting Height：1920mm (75 9,16′′)
• Minimum Height：95mm (3 3 ,4′′)
• Total Height：2824mm (111 3,16′′)
• Width Between Columns：2850mm (112 1,4′′)
• Total Width：3410mm (134 1,4′′)
• Gross Weight：595kgs (1,318lbs)
• Motor Power：2.2kw (3HP)
• Transport Package：Container
• Specification：3850*500*700
• Trademark：Eounice
• Origin：China
• HS Code：8425429000
• Production Capacity：10000

=== Description ===

Basic Info.

Model NO. ON-7214D Double Cylinder Lift Type Planer-type Condition New Brand Eounice Design Two Post Model on-7224D Lifting Time 55s Lifting Height 1920mm (75 9/16′′) Minimum Height 95mm (3 3 /4′′) Total Height 2824mm (111 3/16′′) Width Between Columns 2850mm (112 1/4′′) Total Width 3410mm (134 1/4′′) Gross Weight 595kgs (1,318lbs) Motor Power 2.2kw (3HP) Transport Package Container Specification 3850*500*700 Trademark Eounice Origin China HS Code 8425429000 Production Capacity 10000

Product Description

TECHNICAL DATA:

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Total Height	Width Between Columns	Total Width	Gross Weight	Motor Power
ON-7224D	4,000kgs (9,000LBS)	≤55S	1920mm (75 9/16")	95mm    (3 3 /4")	2824mm (111 3/16")	2850mm (112 1/4")	3410mm (134 1/4")	595kgs (1,318LBS)	2.2KW (3HP)
ON-7224D/4.5	4,500kgs (10,000LBS)	≤55S	1920mm (75 9/16")	95mm    (3 3 /4")	2824mm (111 3/16")	2850mm (112 1/4")	3410mm (134 1/4")	625kgs (1,378LBS)	2.2KW (3HP)

PRODUCT INTRODUCTION:

1. CE approval.
2. 4,000Kg (9,000LBS.) lifting capacity.
3. Single-point lock release by manual and 24V low voltage operation.
4. Durable chain drive cylinder in each column carries with anti-surge valves.
5. Standard with 4 two-stage lifting arms.
6. Screw-up rubber pads with min height 95mm (3 3/4").
7. Standard with high limit switch.
8. Standard with curtain inside column and foot guard.
9. 1920mm (75 9/16") lifting height suitable for various operators.
10. Automatic arms restraints.
11. Professional powder coating.

FEATURES

1. The adapter is ultra-thin design, the minimum height from the ground is 95mm(3 3/4"), which is more suitable for the maintenance and lifting work of low-chassis vehicles.
2. The cover plate is ultra-thin design, the height from the ground is only 33mm(1 5/16"), the vehicle is easier to pass;
3. The inner pulley of the column is installed on the side of the oil cylinder. Even if the retaining ring falls off, the oil cylinder is only 10mm(3/8") from the shaft end, which can effectively prevent the pulley from coming out.
4. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam.
5. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful.

OUR FACTORY:




Warranty term:

Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.



  Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,



 Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.

Our Services

Our Company will be Provide to you some Service.



1. OEM ODM service.

2. Customized service.

3. One Year Quality warrant service, during the period spare part supplied free

    if you pay for shipping.

4. Professional team supply service for life long time.

FAQ

 The Some buyer  maybe ask ?



A:You Are Trade Company or Factory?

A: We are manufacturer and we have our own trade company.So pls don`t worry.



B: How long the production can be delivered?

A:  Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,

subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.



C: What is the regular color? Can I order special color which I like?

A: The regular color is Blue, Red, Yellow.

    Yes, we can also produce machines with special color according to client's request.



D: Can I order  in any special size?

A:  Yes,you can.

    The size is customized, but should be suitable for the inner size of containers.pls understand.
