Fuel Economy Wheel / Lighter Weight Wheel / Forged Aluminum Wheel

Ningbo Zhenhai Yueyang Electrical Equipment Factory / 2022-06-24

Material：Aluminum
Type：Rim
Drive Wheel：FWD
Wheel Hub Diameter：21-24"
Finishing：Polished
Wheel Accessories：Wheel

=== Base Info ===

Model NO.：22.5x8.25 22.5x7.5 22.5x9.00
Certification：ISO, VIA, CE, TUV, DOT, SMS
Apply to：Truck ,Trailer ,Bus
Transport Package：Pallet,Carton
Specification：22.5
Trademark：CHINA
Origin：China
HS Code：8716900000
Production Capacity：100000PCS,Year

=== Description ===
difference between steel and alloy wheelsPoints Forged Aluminum WheelSteel WheelAluminum wheel Advantages 1. Weight ~24KGS~45KGShalf lighter than steel one 2. MaterialHigh strength forging alloySteel PlateHigher strength 3. Manufacturing methodRotary forging Stamping , Rolling,Welding Forged from whole blank wheel, no weld-joint 4. Circularity Numerical Control Rolling roundness 5. Dynamic balanceUniform Density smooth-ride in high speed 6. Heat radiationHigh density no bubble ,high conductivity for heat less conductivity for heat expand service life of tyres by 26% 7. Impact resistance test Almost zero demage damage seriouslyhigher safety 8. Rigidityrigid deformable protect tyres from eccentric wear 9. Compression resistance 73000KGS deformed 5CM 13600KGS deformed 5CM High intensity , 5.37times than steel ones 10. AppearancePolished , Fine and Smooth Murky grey , roughPolished , Fine and Smooth 11. Cost3-4times than steel one low cost 3-4times than steel one 12. Recycle 95% recycled 95% recycled 13. Environment protect Save 22.9Kg of Co2 per KG of aluminum Save 22.9Kg of Co2 per KG of aluminum
Fuel Economy Wheel / Lighter Weight Wheel / Forged Aluminum Wheel

Forged Aluminum wheel Specifics

SIZE	CB	Inset	Outset	Stud Diameter	PCD	Weight (KGS)	MAX LOAD (LBS)
22.5x7.5	281.2	138	162	32.5	*33510**	22.2	7800
22.5x7.5	221	138	162	32.5R22	*2858**	24.1	7800
22.5x8.25	220	144.5	167.5	26.75	*285.7510**	22	7400
22.5x8.25	221			32.5R22	*285.7510**	22
22.5x8.25	281.2			32	*33510**	22
22.5x9.00	220	152	177	26.75	*285.7510**	24	9090
22.5x9.00	281.2	152	177	26.75	*33510**	24	9090
22.5x9.00	281.2	152	177	32.5	*33510**	24	9090
22.5x11.75	281.2	0	22	26	*33510**	25	9915
22.5x11.75	281.2	0	22	26.75	*33510**	25	9915
22.5x11.75	281.2	120	146	26	*33510**	25	9915
22.5x11.75	281.2	120	146	26.75	*33510**	25	9915
*22.514**	221	0	22	26.75	*285.7510**	34.75	13440
17.5x6.00	202	120	141	26.75	245x6
17.5x6.75	202	120	141	26.75	245x6	14.2	2500KGS
19.5x7.5	202	120	141	26.75	*2456**	13.88	2500KGS
24.5x8.25	281.2	145	168	32.5	*33510**	29.36	7900
24.5x8.25	220	145	168	26.75	*285.7510**	29.6	7900
24.5x8.25	221	145	168	32.5R22	*285.7510**	27.78	7900

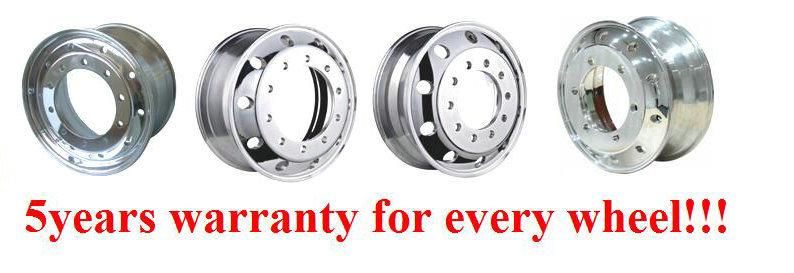

5year-warranty for all Forged aluminum wheel
Forged Aluminum wheel is the strongest and best looking wheel you can buy .
