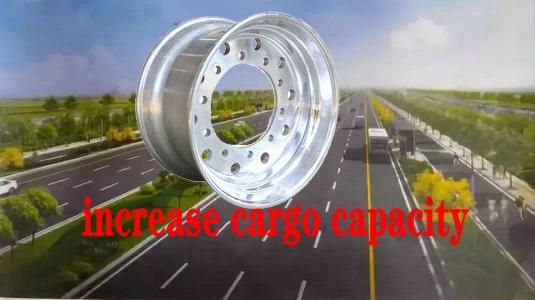

Wholesale Wheels/Polished Wheel /Aluminum Wheels / Alloy Rims for Heavy Duty Trucks (22.5X13, 22.5X14, 22.5X11.75, 22.5X9.00, 22.5X8.25)

Ningbo Zhenhai Yueyang Electrical Equipment Factory / 2022-06-24

Material：Aluminum
Type：Rim
Drive Wheel：FWD
Wheel Hub Diameter：21-24"
Finishing：Polished
Wheel Accessories：Wheel

=== Base Info ===

Model NO.：22.5x13,22.5x14 ,22.5x11.75,22.5x9.00,22.5x8.25 ,2
Certification：ISO, VIA, CE, TUV, DOT, SMS
Transport Package：Pallet,Carton
Specification：22.5
Trademark：CHINA
Origin：China
HS Code：8716900000
Production Capacity：100000PCS,Year

=== Description ===
difference between steel and alloy wheelsPoints Forged Aluminum WheelSteel WheelAluminum wheel Advantages 1. Weight ~24KGS~45KGShalf lighter than steel one 2. MaterialHigh strength forging alloySteel PlateHigher strength 3. Manufacturing methodRotary forging Stamping , Rolling,Welding Forged from whole blank wheel, no weld-joint 4. Circularity Numerical Control Rolling roundness 5. Dynamic balanceUniform Density smooth-ride in high speed 6. Heat radiationHigh density no bubble ,high conductivity for heat less conductivity for heat expand service life of tyres by 26% 7. Impact resistance test Almost zero demage damage seriouslyhigher safety 8. Rigidityrigid deformable protect tyres from eccentric wear 9. Compression resistance 73000KGS deformed 5CM 13600KGS deformed 5CM High intensity , 5.37times than steel ones 10. AppearancePolished , Fine and Smooth Murky grey , roughPolished , Fine and Smooth 11. Cost3-4times than steel one low cost 3-4times than steel one 12. Recycle 95% recycled 95% recycled 13. Environment protect Save 22.9Kg of Co2 per KG of aluminum Save 22.9Kg of Co2 per KG of aluminum
Wholesale Wheels/Polished Wheel /Aluminum Wheels / Alloy Rims for Heavy Duty Trucks (22.5X13, 22.5X14, 22.5X11.75, 22.5X9.00, 22.5X8.25)
Forged Aluminum wheel Specifics

SIZE	CB	Inset	Outset	Stud Diameter	PCD	Weight (KGS)	MAX LOAD (LBS)
22.5x7.5	281.2	138	162	32.5	*33510**	22.2	7800
22.5x7.5	221	138	162	32.5R22	*2858**	24.1	7800
22.5x8.25	220	144.5	167.5	26.75	*285.7510**	22	7400
22.5x8.25	221			32.5R22	*285.7510**	22
22.5x8.25	281.2			32	*33510**	22
22.5x9.00	220	152	177	26.75	*285.7510**	24	9090
22.5x9.00	281.2	152	177	26.75	*33510**	24	9090
22.5x9.00	281.2	152	177	32.5	*33510**	24	9090
22.5x11.75	281.2	0	22	26	*33510**	25	9915
22.5x11.75	281.2	0	22	26.75	*33510**	25	9915
22.5x11.75	281.2	120	146	26	*33510**	25	9915
22.5x11.75	281.2	120	146	26.75	*33510**	25	9915
*22.514**	221	0	22	26.75	*285.7510**	34.75	13440
17.5x6.00	202	120	141	26.75	245x6
17.5x6.75	202	120	141	26.75	245x6	14.2	2500KGS
19.5x7.5	202	120	141	26.75	*2456**	13.88	2500KGS
24.5x8.25	281.2	145	168	32.5	*33510**	29.36	7900
24.5x8.25	220	145	168	26.75	*285.7510**	29.6	7900
24.5x8.25	221	145	168	32.5R22	*285.7510**	27.78	7900

5year-warranty for all Forged aluminum wheel
