High Quality P5 Street Light Pole LED Display Pole WiFi/4G Wireless Advertising Smart LED Screen Panel Intelligent Outdoor

• Tube Chip Color：Full Color
• IP Rating：IP65
• Pixel Pitch：2.5,3,4,5,6
• Pixel Configuration：1R, 1G, 1B
• Display Function：Video Display, Image & Text Display, Text Display, Market Display
• Average Power Consumption：300W , m²

=== Base Info ===

• Pixel Density：10000 dot , m²
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC
• Warranty：3 Years
• Life Time：More 100,000(80%)
• Refresh Rate：1920Hz or 3840Hz
• Brightness：6000CD,M2
• Humidity：10%-95%
• LED Lamp：Nationstar or Kinglight
• Control Card：Sysolution or Nova
• Operating Temperature：-30~60 Celsius Degree
• Cabinet Material：Die-Cast Aluminum
• Maintenance：Front and Rear
• Voltage：AC110-240V
• Transport Package：Wooden Case, Flight Case and Carton

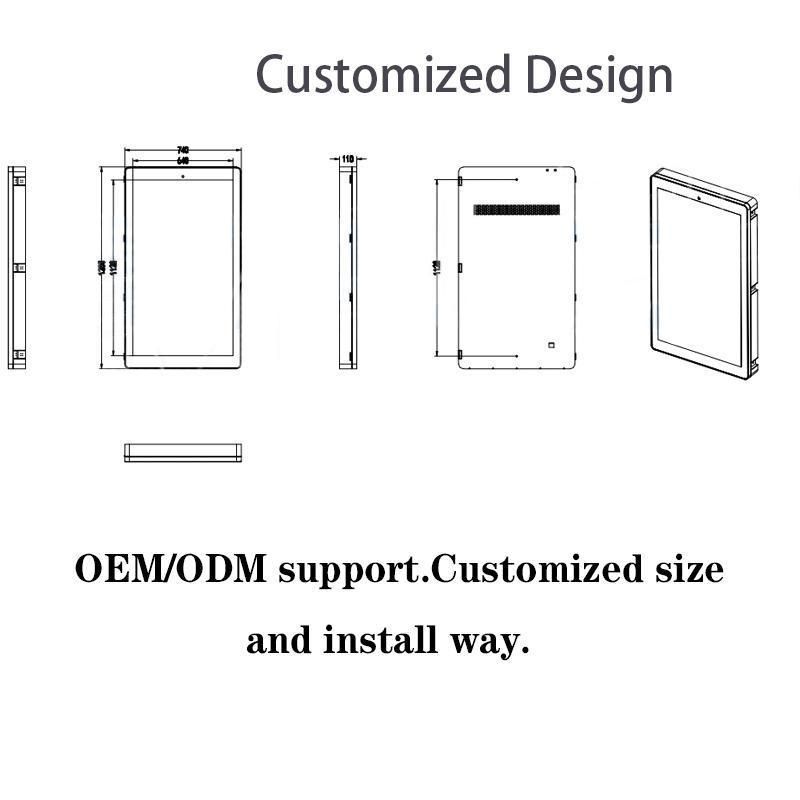

• Specification：customized size
• Trademark：Envision
• Origin：China
• HS Code：8528591090
• Production Capacity：50000,Year

=== Description ===

Standard Caninet Size

Custom

Cabinet Weight

35KGS

Brightness/Adjustment

≥6500cd/m², Level 16- Automatic / Level 100-Manual operation

View Angle

≥120°(Vertical),≥120°(Horizontal)

Best View Distance

6-60m

Grey Scale

Within 65536 Step

Frame Frequency

≥60Hz

Refresh Rate

≥1920Hz

Signal Input Source

Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI

Scan Mode

1/8Scan

Display Color Qty

16777216

Continuous Working Time

>24(Hrs)

Screen Lifespan

>100,000(Hrs)

MTBF

>5000(Hrs)

Max. power consumption

950W/sqm

Ave. power consumption

320W/sqm

Out of control pixel rate

≥3/10,000(discrete distribution)

Control Distance

100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)

Flatness

Screen Surface≤0.5mm,Pixel Pitch≤0.3mm

Operation Temperature

-10ºC~+50ºC

Working Humidity

10%~98%RH

Storage Temperature

-40ºC~+85ºC

Software Connection

Standard Computer Connection,Compatiable With Windows,Unix,Novell

Working Valtage

200~240 V

Temperature Rise

Metal≤40K,Insulation≤65K , After Heat Balance

IP Grade

IP65
