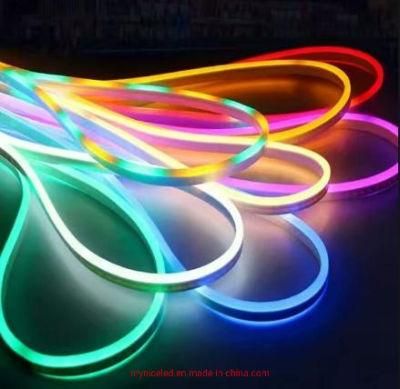

Magic DMX512 Series 60 LEDs/M Programmable Neon Flex Strip

• Certification：FDA, GS, SAA, VDE, FCC, CCC, LVD, UL, EMC, RoHS, CE
• Power：4.5W
• Emitting Color：Changeable
• Voltage：24V
• IP Rating：IP68
• Rated Current：188mA

=== Base Info ===

• Model NO.：RCC60AF12Z-1225-DMX512
• Beam Angle：120°
• Wavelength /Temperature：520-525nm
• Lumen：200lm
• Product Size：5000*12*25 mm
• Cut-Able Unit：100mm
• LED Pitch：16.67 mm
• LED Quantity：60 LEDs
• Max. Cascade Length：5m
• Min. Bend Diameter：20mm
• Mounting Solution：3m Tape
• Control：DMX512 External Control
• Grey Scale：256
• Operating Ambient：-25°c~45°c
• Storage Environment：-25°c~60°c , 60% Rh
• Transport Package：DHL
• Specification：5000*12*25mm
• Origin：Shenzhen
• HS Code：9405409000
• Production Capacity：5000000

=== Description ===
Product size5000*12*25 mmCut-able unit100mmLED pitch16.67 mmLED quantity60 LEDs/m Max. cascade length5mMin. bend diameter20mmMounting solution3M tape Control method DMX512 External controlGrey scale256Operating ambient-25°C~45°CStorage environment-25°C~60°C / 60% RH



















120°



 2700K220lm49lm/W3000K250lm56lm/W4000K280lm62lm/W5000K275lm61lm/W6500K260lm58LM/wRCC60AF12Z-1225-DMX512DC 24V 750mA/m18W/m>80120°/250lm/Operation temperature-25°C~50°CStorage temperature-40°C~70°C Maximum surface temperature (Tc)65°CModel NO.Product SizeInner Carton SizeOuter Carton SizePacking QuantityGross Weight RCC60AF12Z-1225-DMX512 5000*12*25mm/37*34*34CM8bags21kg
Supplementary Product Information:

-Installation of LED modules (with power supplies) needs to be made under consideration of all valid regulations and norms.

-Installation by qualified electrician only.

-Please drive the led strip with isolated power, and the ripple of the constant voltage source should be less than 5%.

-Please do not bend the strip into an arc with a diameter less than 20mm to ensure the longevity and reliability. -Do not fold it in case any damage of LED beads.

-Do not pull the power wire hard to ensure the longevity. Any crash may damage the colloidal surface is prohibited.

-Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.

-LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -20 °C ~ + 40 °C.Storage temperature: -25 °C ~ + 60 °C/60%RH.

-Please use the strips without waterproof within indoor environment with humidity less than 70%.

-Please be careful during operation. Do not touch the AC power supply in case of electric shock.

-Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

-Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
