Dimmable IP68 Aquarium LED Fleixble Neon Strip Lights
Foshan Baoshengyuan Packaging Factory / 2022-06-27
- Certification:UL, EMC, RoHS, CE, IP68, UV Test
- Power:5-15W
- Emitting Color:Warm White, Red, Yellow, Orange, Blue Green
- Voltage:12,24,36V
- IP Rating:IP68
- Product Name:Neon Sign LED
=== Base Info ===
- Model NO.:F21 Mono color
- Warranty:3 Years
- Lamp Body Material:PVC
- LED Type:SMD5050
- LEDs Qty/M:60LEDs
- CRI:>80
- Max Length:20m
- Cutting Length:10cm
- Life Span:50000h
- Bending Direction:Horizontally
- Transport Package:Natural Packing
- Specification:11.5*15.5*29mm
- Trademark:Olympia Lighting
- Origin:China
- HS Code:9405409000
- Production Capacity:50000m,Month
=== Description ===
Model: | F21-24V-5050-72 | F21-24V-5050-60 | F21-24V-2835-72-CC | F21-36V-5050-60 | F21-24V-3528-72 | F21-12V-3528-72 |
|
Working Voltage: | 24V DC | 24V DC | 24V DC | 36V DC | 24V DC | 12V DC |
Power per Meter: | 15W | 12W/10W | 12W | 12W | 5W | 5W |
Working Mode: | CV | CV | CC IC built-in | CV | CV | CV |
LED Type: | SMD5050 | SMD5050 | SMD2835 | SMD5050 | SMD3528 | SMD3528 |
LED Qty / meter: | 72PCS | 60PCS | 72PCS | 60PCS | 72PCS | 72PCS |
Available CT: | 2200-6500K | 2200-6500K | 2200-6500K | 2200-6500K | 2200-6500K | 2200-6500K |
Available Colors: | G/B/LY/P | G/B/LY/P/A/R/O | G/B/LY/P | G/B/LY/P | G/B/P/R/A/O | G/B/P/R/A/O |
Min. Cutting Unit: | 6LEDs | 6LEDs/10LEDs | 6LEDs | 10LEDs | 12LEDs | 6LEDs |
Min. Cutting Length: | 8.33cm | 10cm/16.67cm | 8.33cm | 16.67cm | 6.6"/16.67cm | 3.3"/8.33cm |
Max Length Single Feed: | 26.24'/8m | 33'/10m | 49.2'/15m | 49.2'/15m | 49.2'/15m | 22.96'/7m |
Max Length Double Feed: | 52.49'/16m | 65.62'/20m | 98.43'/30m | 98.43'/30m | 98.43'/30m | 45.93'/14m |
Lumen Maintenance: | 70, 000 Hours L70@ 25°C, 50, 000 Hours L70@ 50°C |
Material: | Eco PVC |
Protection Rating: | IP68 |
Min. Bending: | Dia 12cm |
Beam Angle: | 270° |
Dimmable: | Yes |
Bending Direction: | Horizontally |
Installation Temp.: | 0°C to +55°C |
Ambient Temp.: | -25°C to +55°C |
Warranty: | 3 or 5 Years |

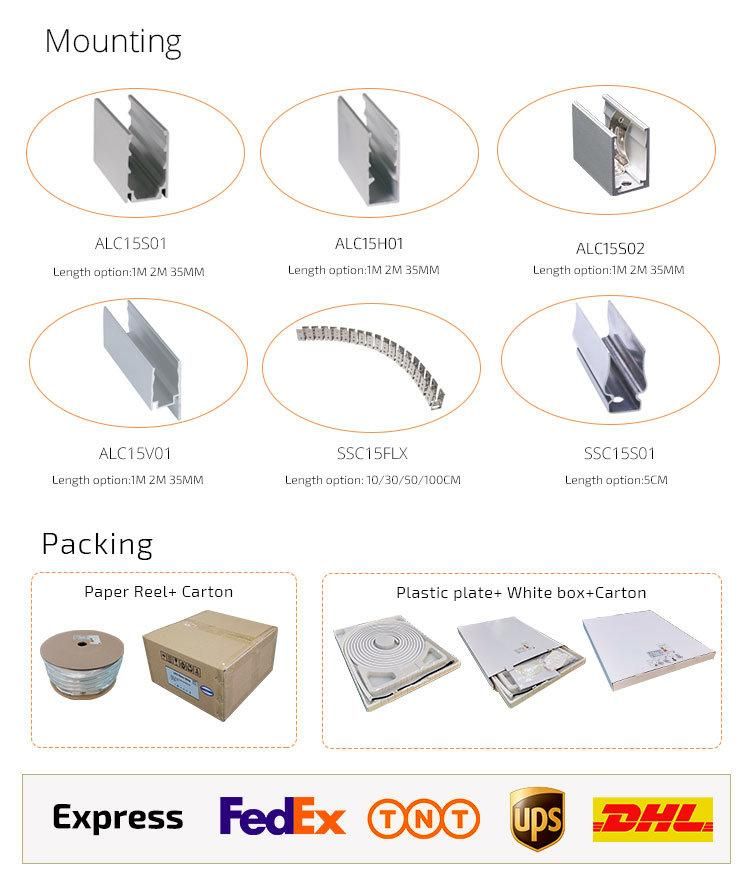

Accessories
