Downdraft Auto Body Spray Paint Baking Booth for Sale

• After-sales Service：Available
• Warranty：12month
• Type：Spray Booth
• Certification：CE, SGS, ISO
• Substrate：Steel
• Brand：Hongyuan

=== Base Info ===

• Model NO.：HY-CB55A
• Coating：Painting
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Steam
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, Orange, White
• Panel：50mm EPS Foam Panel
• Filter System：4-Stage Filtration
• Heating Fuel：Oil,Diesel Burner
• Intake Fan：2set
• Exhaust Fan：1set
• Upper Light：Available
• Side Light：for Option
• Control Box：English Panel
• Drawings：Available
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Large Truck Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL via 20GP container loading
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100set Per Month

=== Description ===

Basic Info.

Model NO. HY-CB55A Coating Painting Airflow Direction Lateral Undershot-type Heating Mode Steam Paint Mist Treatment Dry-type Condition New Color Red, Blue, Orange, White Panel 50mm EPS Foam Panel Filter System 4-Stage Filtration Heating Fuel Oil/Diesel Burner Intake Fan 2set Exhaust Fan 1set Upper Light Available Side Light for Option Control Box English Panel Drawings Available Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Large Truck Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL via 20GP container loading Trademark Hongyuan Origin Shandong, China Production Capacity 100set Per Month

Product Description

Introduction of the Car paint spray booth for car and minivan with diesel Burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner

Model	HY-CB55A
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<15kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates.
Intake	Two set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(GAS)	Italy Riello FS10/FS20 gas burner,  one-stage oil burner/electricity for option.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

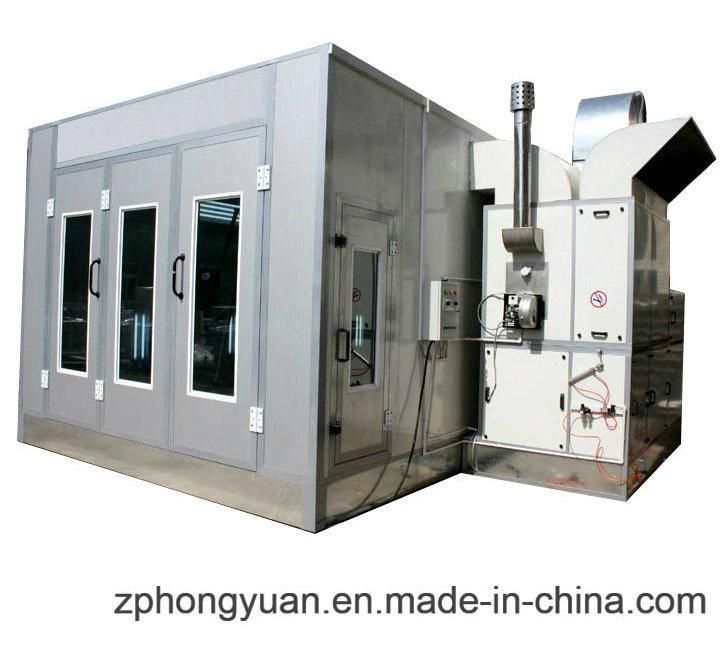

Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel



details show of Auto paint spray booth for car and minivan with diesel Burner



parts show of Auto paint spray booth for car and minivan with diesel Burner





Project case for paint booth



Certificate of our product and company
